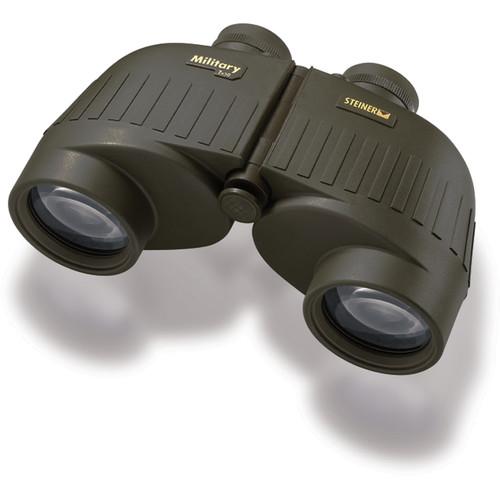

User Manual for Steiner 7x50 Military Marine Binocular Click to enlarge the picture
Contents of the user manual for the Steiner 7x50 Military Marine Binocular
- Product category: Binoculars Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Binoculars
|
User manual for the Steiner 7x50 Military Marine Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description See Forever on a Clear Day: New Steiner Military/Marine Binoculars Read More Designed and built for outstanding performance in low-light conditions when many animals are most active, the Steiner Optics 7x50 Military/Marine Binocular combines multiple technologies and features to ensure clear and crisp views from first light through to twilight.Its performance starts with the combination of high magnification and over-sized objectives. At 50mm the objectives draw in the copious amounts of light required for seeing in low light, while the moderate 7x power produces an ultra-wide exit pupil that ensures the light leaving the eyepieces will completely cover the user's pupils when they are fully dilated in low light. An innovative floating prism mounting system helps to absorb impacts to avoid damage and maintain optical path alignment. All of these features, when coupled with the traditional Porro prism light path, present the user with an immersive observational experienced defined by bright and clear high-contrast views and accurate color rendition.Complementing the optical performance are construction details that allow the binocular to withstand the rigors of the outdoors. These details begin with Steiner's Sport Focusing System which allows the user to focus each eyepiece, just one time, and eliminates the need to refocus again regardless of how near or far the subject is — even if it is moving. The chassis is made of a lightweight and impact-resistant Makrolon polycarbonate material that is wrapped in an oil, petroleum, and chemical-resistant NBR synthetic rubber armor that offers improved grip security, especially in cold and wet weather. The optical tubes feature raised ridges to improve grip security, while the interior of the tubes is O-ring sealed to be waterproof against rain, snow, or spraying water.From dawn to dusk to piercing thickly wooded stands, the Steiner Military/Marine binocular has been engineered to provide outstanding performance in challenging light and environmental conditions. - Optical Performance
-
- Moderate 7x magnification brings subjects in close without narrowing the field of view
- Large 50mm objective lenses boost low-light performance
- Traditional Porro prism optical path affords a more rich depth of field versus similar roof prisms
- Fully multi-coated optics improve light transmission for bright high-contrast images with accurate color rendition
- Floating prism mounting system helps to absorb impacts to avoid damage and maintain optical path alignment
- 387-foot field of view at 1000 yards
- Use and Handling
-
- Sports-Auto Focusing System
- Fold-down rubber eyecups for comfortable use with or without eyewear
- Generous 16mm eye relief makes long-duration observation sessions comfortable with reduced eye strain
- Ultra-wide 7.1mm exit pupil will completely cover pupils when they open and become fully dilated in low light to keep views bright and clear
Sports-Auto Focusing System:- Individual eyepiece focusing
- Requires only one initial individual focus adjustment per user
- Eliminates the need for refocusing for targets at ranges from 22 yards (20m) to infinity
- Enables the tracking of fast targets without the need to refocus
- Construction Details
-
- Lightweight and impact-resistant Makrolon polycarbonate chassis remains a comfortable temperature regardless of air temperature, and resists expansion/contraction common in metal chassis that can cause the optics to move out of alignment over time
- O-ring sealed to be waterproof for use in light rain or snow
- Oil, petroleum, and chemical-resistant NBR synthetic rubber armor offers improved grip security, especially in cold and wet weather
- Weight: 36 ounces
UPC: 840229103140 In the Box Steiner 7x50 Military/Marine Binocular Neck Strap Carrying Case One-Piece Ocular Rainguard 2 x Objective Lens Caps Limited Lifetime Warranty The B&H Binocular Buying Guide Christopher Witt 12/13/2018 eweaqrbdrdyfwtzddrauyutzurxsfvqfb Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 eweaqrbdrdyfwtzddrauyutzurxsfvqfb Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 eweaqrbdrdyfwtzddrauyutzurxsfvqfb Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 7x50 Military Marine Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 2038 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 7.4° (Actual) | | Field of View | 388.5' @ 1000 yd / 129.5 m @ 1000 m | | Minimum Focus Distance | 66' / 20.1 m | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 16.0 mm | | Dioptric Correction | None | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 8.1 x 6.0 x 2.7" / 20.6 x 15.2 x 6.9 cm | | Weight | 36.0 oz / 1021 g | | | | Package Weight | 3.855 lb | | Box Dimensions (LxWxH) | 10.9 x 9.15 x 4.7" |
