User Manual for Steiner 7x50 Military-Marine Binocular Click to enlarge the picture
Contents of the user manual for the Steiner 7x50 Military-Marine Binocular
- Product category: Binoculars Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Binoculars
|
User manual for the Steiner 7x50 Military-Marine Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|

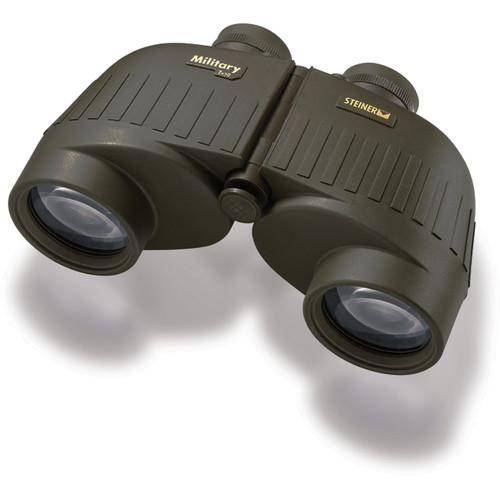

Product description The B&H Binocular Buying Guide Read More wefuwqra Designed with a moderate magnification and large objectives, the Steiner Optics 7x50 Military-Marine Binocular is an ideal choice for hunters, outdoor enthusiasts, and boaters. The power and aperture combination translates to a wide field of view and an impressive exit pupil that helps to mitigate the disorientation common when looking through binoculars on rolling or rough water, or the appearance of the visible hand shake associated with high-power optics. Its traditional Porro prism optical path provides a rich depth of field to clearly see the difference between near and distant objects, while a proprietary floating prism system absorbs the force from drops or knocks to protect the prisms and their alignment.For ease of use, the Military-Marine is outfitted with Steiner's Sports-Auto-Focus system, which enables each eyepiece to be individually focused to ensure the sharpest views possible. Its rubber eyecups mold themselves to the user's eye sockets to keep stray peripheral light from interfering with the viewing experience. The chassis is made of Makrolon polycarbonate, which is corrosion, impact, and temperature resistant, and the optical tubes are nitrogen-filled and O-ring sealed to be water and fogproof even in extreme weather conditions. Whether in the wild outdoors or on the rolling seas, the Military-Marine binocular will be your constant companion for all your glassing needs. - Optical Performance
-
- Moderate 7x magnification
- Large 50mm objective lenses
- Traditional Porro prism optical path provides a rich depth of field versus similar roof prisms
- Proprietary floating prism system uses flexible silicone mount to absorb severe shocks and impacts to limit or eliminate damage
- 302' field of view at 1000 yards
- Exceptionally wide 7.1mm exit pupil ensures complete pupil coverage when fully dilated in low light to eliminate vignetting
- Use and Handling
-
- Sports-Auto-Focus System: Individually focusable eyepieces ensure precise tack-sharp focus for any user
- 60-70mm interpupillary distance adjustment range
- Fold-down rubber eyecups for comfortable use with or without eyewear
- When up, the eyecups seal into eye sockets to reduce peripheral light interference, which can reduce image brightness
- Construction Details
-
- Impact and corrosion-resistant Makrolon polycarbonate chassis
- Chassis' temperature resistance ensures it stays a comfortable handling temperature in cold or wet conditions, while resisting the expansion and contraction common with metal chassis that can cause the optical components to move out of alignment over time
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
- Tethered objective lens covers and one-piece ocular rainguard included
- Weight: 35.3 ounces
UPC: 077068002758 In the Box Steiner 7x50 Military-Marine Binocular Neck Strap Carrying Case One-Piece Ocular Rainguard 2 x Tethered Objective Lens Cap Limited Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 wefuwqra A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 wefuwqra Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 7x50 Military-Marine Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 5840 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 5.8° (Actual) | | Field of View | 302.0' @ 1000 yd / 100.3 m @ 1000 m | | Minimum Focus Distance | 66' / 20.1 m | | Exit Pupil Diameter | 7.1 mm | | Interpupillary Adjustment | 60 to 70 mm / 2.4 to 2.8" | | Dioptric Correction | None | | Focus Type | Individual | | Tripod Mount | None | | Dimensions | 8.1 x 5.0 x 3.0" / 20.6 x 12.7 x 7.6 cm | | Weight | 35.3 oz / 1000.8 g | | | | Box Dimensions (LxWxH) | 12.0 x 9.0 x 5.0" |
