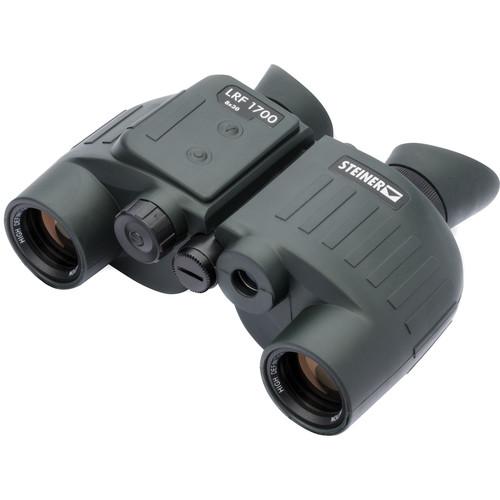

User Manual for Steiner 8x30 LRF 1700 Rangefinding Binocular Click to enlarge the picture
Contents of the user manual for the Steiner 8x30 LRF 1700 Rangefinding Binocular
- Product category: Laser Rangefinders Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Laser Rangefinders
|
User manual for the Steiner 8x30 LRF 1700 Rangefinding Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description The ergonomic and durable 8x30 LRF 1700 Binocular from Steiner combines a built-in laser rangefinder with high definition and multi-coated optical elements that provide bright, clear, and crisp images. With an 8x magnification and 30mm objectives, you'll enjoy powerful magnification, without the image jitter found with higher-powered optics, and a compact form factor. You can easily spot your targets with a 7.1° angular field of view and quickly bring them into focus with a large center focus wheel. You'll be able to make accurate ballistic calculations thanks to the laser rangefinder, which has a maximum range of 1859 yards. Steiner's Sports-Auto-Focus system allows you focus each eyepiece to your vision once and enjoy sharp focus from 20 yards to infinity, so you don't have to chase focus when tracking a moving target.The LRF 1700 features a durable Makrolon polycarbonate housing with a lightly contoured NBR rubber armoring, which provides both external protection and a secure non-slip grip. The housing is submersible to 16.4' and nitrogen-filled to eliminate internal fogging due to temperature changes. Included items include a rain guard, objective lens covers, a carry case, and a neoprene neck strap. - Optical Performance
-
- Magnification: 8x
- 30mm objective diameter
- Porro prism design enhances depth perception
- High definition multi-coated optics provide clear and crisp images
- Actual Angle of View: 7.1°
- Linear Field of View: 374' at 1000 yards
- Interpupillary adjustment
- Laser Rangefinder
-
- Laser rangefinder range: 27-1859 yards
- Sports-Auto-Focus: set focus for each eyepiece to enjoy clear focus from 20 yards to infinity
- Powered by a CR2 battery
- Construction Details
-
- Durable and lightweight Makrolon housing
- Nano-Protection hydrophobic coating sheds water and resists dirt
- NBR rubber armoring is durable, resistant to abrasives, and provides a comfortable grip
- ErgoFlex eyecups are made from non-aging and non-irritating rubber
- Filled with pressurized nitrogen to ensure fogproof and waterproof performance
- Waterproof/submersible to 16.4'
UPC: 840229102990 In the Box Steiner 8x30 LRF 1700 Rangefinding Binocular Objective Covers Rainguard Neck Strap Carry Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 8x30 LRF 1700 Rangefinding Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner LRF 1700 Specs | | | Metering Range | 1859 yd / 1700 m | | | | Prism Type | Porro | | Magnification | 8x | | Objective Lens Diameter | 30 mm | | Field of View | 374' @ 1000 yd / 124 m @ 1000 m | | Exit Pupil Diameter | 3.8 mm | | | | Form Factor | Binocular | | Power Source | 1 x CR2 | | | | Fogproof | Yes, Nitrogen Filled | | Dimensions | 6.5 x 5.7" / 16.5 x 14.5 cm | | Weight | 28.0 oz / 0.8 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
