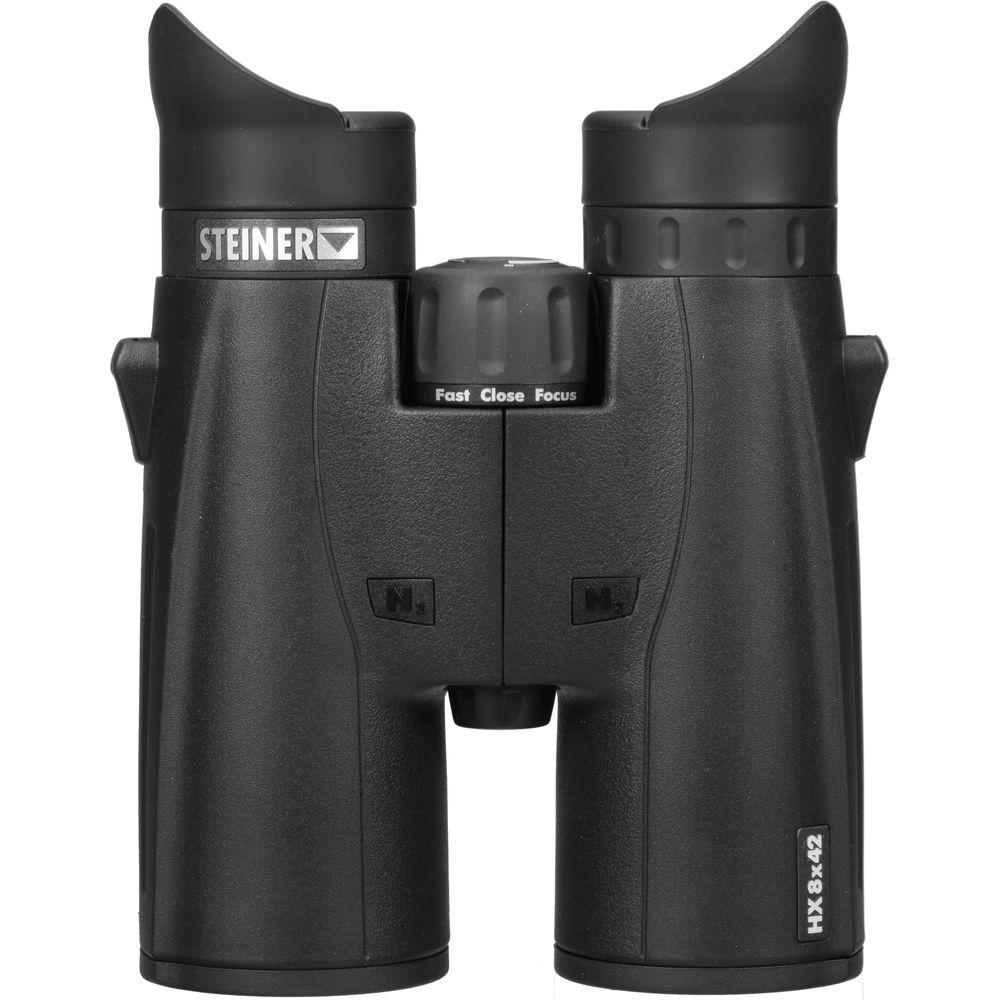

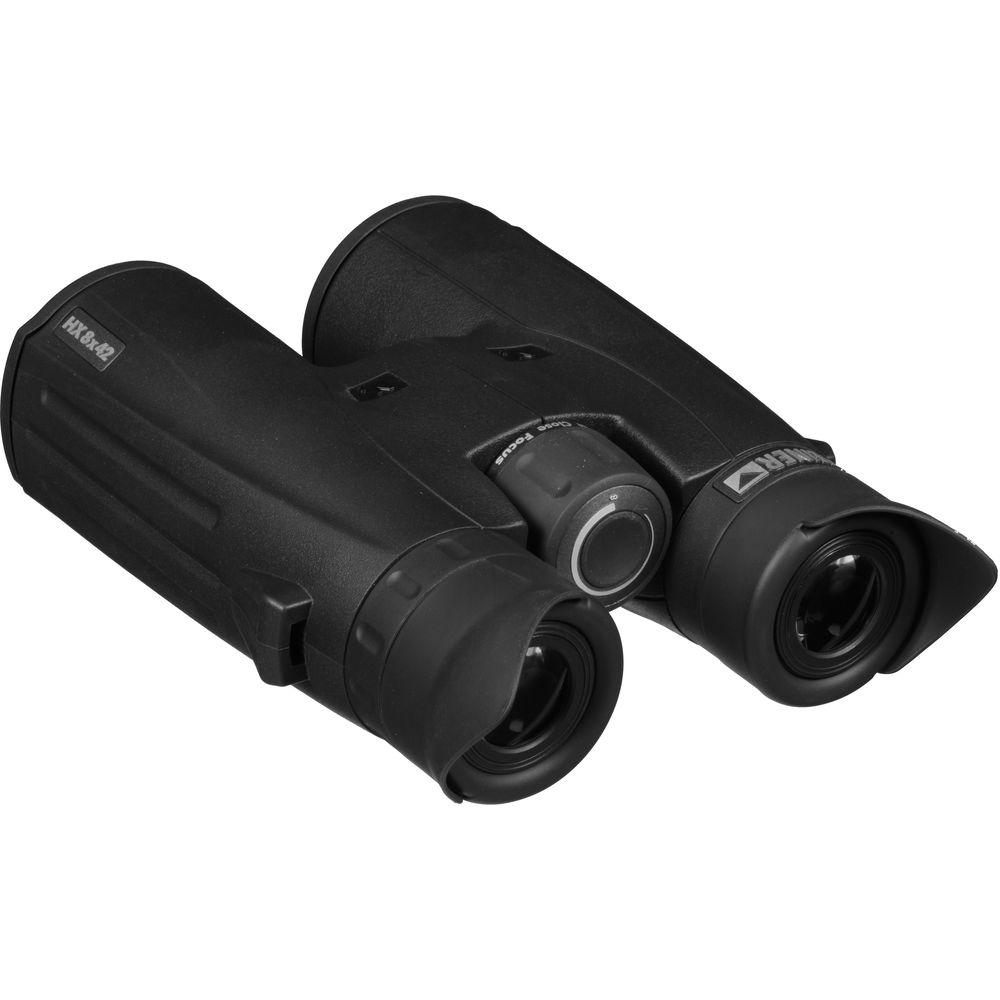

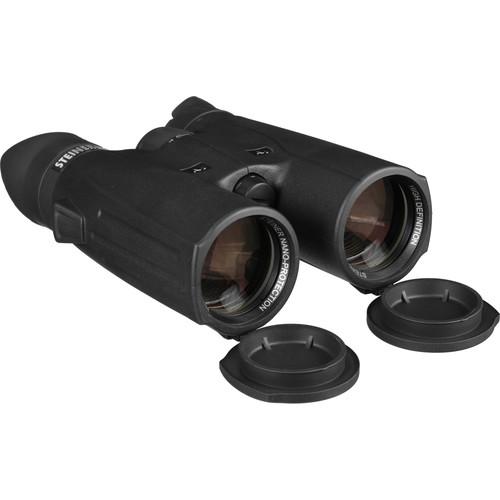

User Manual for Steiner 8x42 HX Binocular Click to enlarge the picture
Contents of the user manual for the Steiner 8x42 HX Binocular
- Product category: Binoculars Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Binoculars
 |
User manual for the Steiner 8x42 HX Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Ergonomically designed to fit comfortably in the hand, Steiner Optics' 8x42 HX Binocular is an ideal all-around optic for most of your glassing needs. The moderate magnification enables you to resolve details in thick brush, and the larger 42mm objectives push the binocular's low-light performance past where smaller ones are usable. All optical surfaces are fully multi-coated with Steiner's proprietary broad-band coatings which help to increase light transmission, improve contrast, and ensure true color rendition across the entire visible spectrum. All exposed lens surfaces are also coated with Steiner's "Nano Protection" which adds a thin film to repel water, dust, dirt, and oils so they stay clear and clean easily. From its 6' close focus to a field of view that approaches wide-angle, the HX binocular will be an essential piece of gear for you.Complementing the HX's optical performance are construction details that make them durable enough for everyday use. The chassis is made from Makrolon polycarbonate that is impact and corrosion-resistant. Makrolon is also temperature-resistant, so the optical tubes won't expand and contract with temperature fluctuation, which, over time, can cause the optics to move out of collimation; preventing the binocular from being able to achieve sharp focus. The chassis is wrapped with a long-lasting NBR rubber armoring which not only protects it from drops and impacts, it also gives the binocular a slip-resistant grip - especially in cold and wet weather. Its optical tubes are nitrogen-filled to 14-psi and O-ring sealed to make them water and fogproof, even in extreme conditions. - Optical Performance
-
- 8x magnification
- 42mm objectives
- Compact roof prism optical path
- Broad-spectrum anti-reflection fully multi-coated optics produce bright high-contrast images with accurate color fidelity across the entire visible spectrum
- Proprietary "Nano-Protection" hydrophobic lens coating repels water, dirt, dust, snow, and oils
- 377' field of view at 1000 yards
- Close 6' minimum focus distance
- Use and Handling
-
- Closed-bridge configuration
- Large knurled center fast-focus knob
- Left-eye dioptric correction
- Winged eyecups block peripheral light for brighter images
- Broad 5.25mm exit pupil
- Construction Details
-
- Ergonomic design fits comfortably and securely in the hand
- Impact, corrosion, temperature-resistant Makrolon polycarbonate chassis
- NBR rubber armoring protects while providing a slip-resistant grip
- Nitrogen-filled to 14-psi for water and fogproof performance - especially in extreme temperature changes
- O-ring sealed - submersible to 10' (3m)
- Neoprene neck strap with ClicLoc attachment system
- Weight: 27.8 ounces
UPC: 840229101702 In the Box Steiner 8x42 HX Binocular Carrying Case Neoprene Neck Strap Ocular Rainguard 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 bbwtxwawxzwyudv Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.3mbbbwtxwawxzwyudv Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 8x42 HX Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 2014 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.2° (Actual) | | Field of View | 378.0' @ 1000 yd / 126.0 m @ 1000 m | | Minimum Focus Distance | 6' / 1.8 m | | Exit Pupil Diameter | 5.25 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.8 x 4.9 x 2.6" / 14.7 x 12.4 x 6.6 cm | | Weight | 27.7 oz / 785.3 g | | | | Package Weight | 3.315 lb | | Box Dimensions (LxWxH) | 9.8 x 8.75 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
