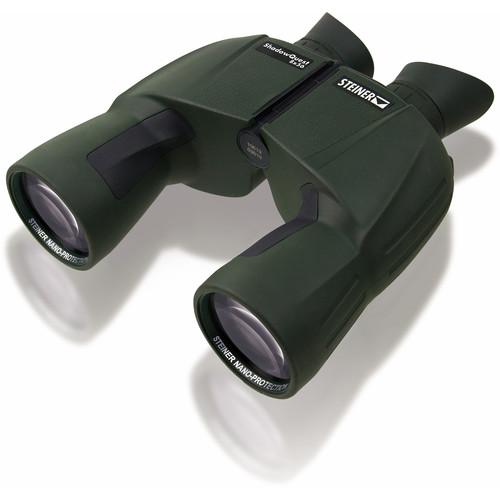

User Manual for Steiner 8x56 ShadowQuest Binocular Click to enlarge the picture
Contents of the user manual for the Steiner 8x56 ShadowQuest Binocular
- Product category: Binoculars Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Binoculars
|
User manual for the Steiner 8x56 ShadowQuest Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description How Does Steiner Optic's Newest Binocular Perform? We Found Out! Read More Conceived, designed, and constructed for outstanding performance in low-light conditions when many animals are most active, the Steiner Optics 8x56 ShadowQuest Binocular combines multiple technologies and features to ensure clear and crisp views from first light through to twilight.Its performance starts with the combination of moderate magnification and over-sized objectives. At 56mm the objectives draw in the copious amounts of light required for seeing in low-light, while the 8x power produces both a large exit pupil and wide angle of view. A wide exit pupil ensures that the light leaving the eyepieces completely cover the user's pupils when they are fully dilated in low-light to take full advantage of the wide viewing angle. The optics are fully multi-coated with Steiner's proprietary Diamond Night lens coatings which are engineered to maximize light transmission through the light path. All of these features, when coupled with the traditional Porro prism light path, present the user with an immersive observational experienced defined by bright and clear high-contrast views and accurate color rendition. Winged eyecups conform to the user's face and eye sockets to block stray peripheral light and improve the contrast of the view while limiting distractions.Complementing the optical performance are construction details that allow the ShadowQuest to withstand the rigors of the outdoors. These details begin with Steiner's Sport Focusing System which allows the user to focus each eyepiece, just one time, and eliminates the need to refocus again regardless of how near or far the subject is — or if it is moving. Speaking to the low-light-use purpose, an innovative photoluminescent Lumiclip system is employed that glows with just enough light to be able to find them in low or no light. The chassis is made of a lightweight and impact-resistant Makrolon polycarbonate material that is wrapped in an oil, petroleum, and chemical-resistant NBR synthetic rubber armor that offers improved grip security, especially in cold and wet weather. Its optical tubes are nitrogen-filled and O-ring sealed to be waterproof to a depth of 16-feet, and resistant to internal fogging when moving through extreme temperature changes and environmental conditions.From dawn to dusk to piercing thickly wooded stands, the ShadowQuest binocular has been engineered to provide outstanding performance in the most challenging light and environmental conditions possible. - Optical Performance
-
- 8x magnification
- Large 56mm objective lenses
- Traditional Porro prism optical path affords a more rich depth of field versus similar roof prisms
- Proprietary Diamond Night lens coating formula uses rare-earth materials to maximize light transmission to greater than 96% for improved low-light performance
- Proprietary Nano-Protection protects lens surfaces enabling water to bead off, and preventing dirt from sticking, to provide clearer views in all weather conditions
- Floating prism mounting system helps to absorb impacts to avoid damage and maintain optical path collimation
- Ultra-wide 67° apparent angle of view
- 441' field of view at 1000 yards
- Use and Handling
-
- Lumiclip system: Luminescent clip glows with just enough light to locate the binocular in the dark
- Fold-down rubber eyecups for comfortable use with or without eyewear
- Ultra-long 24.4mm eye relief makes long-duration glassing sessions comfortable
- Large 7mm exit pupil is optimized for low-light conditions to completely cover pupils when they are fully dilated to avoid vignetting of the view
Sports-Auto-Focusing System:- Individual eyepiece focusing
- Requires only one initial individual focus adjustment per user
- Eliminates the need for refocusing for targets at ranges from 22 yards (20m) to infinity
- Enables the tracking of fast targets without the need to refocus
- Construction Details
-
- Lightweight and impact-resistant Makrolon polycarbonate chassis
- Nitrogen-filled and O-ring sealed to be waterproof to a depth of 16' (5m), and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
- ErgoFlex winged angled eyecups block stray peripheral light from interfering with views while improving contrast and limiting distractions
- Oil, petroleum, and chemical-resistant NBR synthetic rubber armor offers improved grip security, especially in cold and wet weather
- Broad -40 to 175°F (-40 to 80°C) operating temperature range
UPC: 840229102563 In the Box Steiner 8x56 ShadowQuest Binocular Carrying Case Neoprene Neck Strap One-Piece Ocular Rain Guard 2 x Objective Lens Covers Limited Lifetime Warranty The B&H Binocular Buying Guide Christopher Witt 12/13/2018 Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner 8x56 ShadowQuest Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 2039 Specs | Prism Type | Porro | | Magnification | 8 x | | Objective Lens Diameter | 56 mm | | Angle of View | 8.4° (Actual) | | Field of View | 441.0' @ 1000 yd / 146.4 m @ 1000 m | | Minimum Focus Distance | 66' / 20.1 m | | Exit Pupil Diameter | 7 mm | | Eye Relief | 24.4 mm | | Dioptric Correction | None | | Focus Type | Auto-Focus | | Tripod Mount | None | | Dimensions | 8.3 x 7.8" / 21.1 x 19.8 cm | | Weight | 38.5 oz / 1091.5 g | | | | Package Weight | 4.265 lb | | Box Dimensions (LxWxH) | 11.5 x 10.15 x 4.55" |
