User Manual for Steiner CQBL-1 Close Quarters Battle Visible IR Laser Sight Click to enlarge the picture
Contents of the user manual for the Steiner CQBL-1 Close Quarters Battle Visible
- Product category: Laser Sights Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Laser Sights
|
User manual for the Steiner CQBL-1 Close Quarters Battle Visible contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|

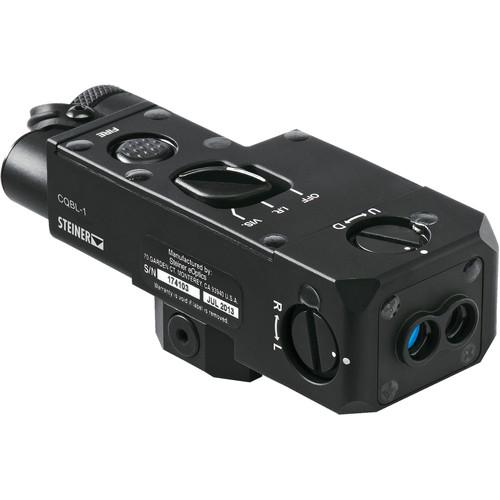

Product description Steiner Optics designed the black CQBL-1 Close Quarters Battle Visible/IR Laser Sight as a durable yet compact 24/7 aiming device that combines red visible and infrared aiming lasers. Its 850nm infrared laser is visible with NVDs up to 273 yards away, and the red has a max range of 16' during the day or 273 yards at night. The CQBL-1's two laser are co-aligned to allow the operator to zero or correct the impact point of both lasers simultaneously using the finger-adjustable windage/elevation dials. The dials, laser selector switch, and activation button are all recessed to eliminate snag points and reduce the sight's overall profile.The activation button and included remote pressure pad work with a Double-Tap system. The remote increases the usability and operator safety by allowing them to control the CQBL-1 while remaining in the firing position. Simply tap either switch once for momentary activation, double-tap for five-minutes continuous. A rotary toggle selector switch on the top of the housing enables the operator to activate the laser to suit the targeting task. The laser system runs on a single CR123A battery with a max runtime of about 3 hours.A Picatinny clamp rail-mount is integrated into the overall design to further reduce the form-factor to make this sight ideal for use on with virtually every sub-machine gun and short barrel rifle. The CQBL-1 housing is made of the strong and lightweight 6061-T6 aluminum alloy with a black corrosion and scratch-resistant Mil-Spec hard-anodized finish. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Visible Aiming Laser
-
- Class IIIa visible red
- 635nm peak wavelength
- 5mW max output
- 547 yd maximum visible range at night
- Infrared Aiming Laser
-
- Class I eye-safe IR
- 835nm peak wavelength
- 0.7mW max output
- 273 yd maximum visible range, day or night
- Use and Handling
-
- Co-aligned visible and IR lasers for day/night use without re-zeroing
- Three-position toggle selector switch
- Double Tap remote activation switch: Tap for momentary, double-tap to activate for 5 continuous minutes
- Finger-adjustable windage and elevation impact point correction
- Windage/Elevation correction dials recessed to reduce snag-points and overall profile
- Rear-facing activation and low-battery indicators
- Construction Details
-
- 6061T-6 aluminum housing
- Type III anodized hard coat with black finish
- Broad -40 to 124°F operating temperature range
- Watertight to 16 ft
- 4x1.5" footprint
- 6 oz weight
- Integrated clamp-on Picatinny rail mount
- Runs on one included CR123 battery
In the Box Steiner CQBL-1 Close Quarters Battle Visible/IR Laser Sight (Black) CR123A Battery 7" Remote Activation Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner CQBL-1 Close Quarters Battle Visible IR Laser Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9030 Specs | Laser Type | Class IIIa | Laser Color | Red | Peak Wavelength | 635 nm | Peak Output | <5 mW | Beam Divergence | <0.8 MRAD | Range of Illumination | 547 yd / 500 m (Night) 16' / 5 m (Day) | | Laser Type | Class I Eye Safe | Peak Wavelength | 850 nm | Peak Output | 0.7 mW | Beam Divergence | <0.8 MRAD | Range of Illumination | 273 yd / 250 m (Day, Night) | | Runtime | 3 Hours | Operating Temperature | -40 to 149°F / -40 to 65°C | Water Resistance | Waterproof to 16.4' / 5 m | Dimensions | L: 4.0 x W: 1.1 x H: 1.5" / L: 10.2 x W: 2.8 x H: 3.8 cm | Weight | 6.0 oz / 170.0 g | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 4.0" |
