User Manual for Steiner DBAL-A3 class 1 3R Civilian Visible Green IR Laser Sight with IR Illuminator Click to enlarge the picture
Contents of the user manual for the Steiner DBAL-A3 class 1 3R Civilian
- Product category: Laser Sights Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Laser Sights
|
User manual for the Steiner DBAL-A3 class 1 3R Civilian contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|

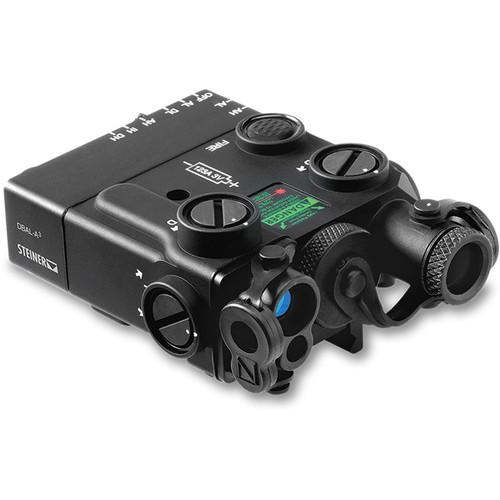

Product description Now available for the commercial market, the DBAL-A3 class 1/3R Civilian Visible Green/IR Laser Sight with IR Illuminator from Steiner Optics is a durable yet compact multi-function laser aiming device that incorporates a green aiming laser, an IR aiming laser, and an infrared LED illuminator. The Dual Beam Aiming Laser (DBAL) features independently adjustable lasers that allow the operator to choose the output mode and correct the impact point of each laser. A powerful IR LED provides an independent illuminator. This configuration of the DBAL is outfitted with a green aiming laser that is visible without NVDs up to 50' away during the day and 820 yards at night. For covert operation and use with NVDs, the DBAL has an 835nm IR laser that can be seen for 275 yards day or night. The IR illuminator enables target designation or allows users to flood the night vision scene with infrared light owing to its adjustable beam angle from a tight 2° spot to a wide 30° flood. This entire laser/illuminator system runs on a single included CR123A battery.The DBAL-A3 features an integrated activation pushbutton switch with an included remote activation pressure pad. The remote switch allows the operator to activate the DBAL while remaining in the firing position. Simply tap either switch once for momentary activation, or double-tap for five continuous minutes. A mode selector switch at the rear of the housing enables the operator to set the power output that suits their targeting task. Independent windage and elevation dials enable users to zero and perform shot correction for the green and IR lasers. The DBAL-A3 is made of the lightweight and durable 6061-T6 aluminum alloy with a matte black corrosion and scratch-resistant Type III hard -anodized finish. This rugged housing is ESD compliant for air worthiness, and it meets MIL-STD 810G standards for& extreme temperature tolerance and waterproofing. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARrxzaybaczz), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Visible Laser Performance
-
- Class IIIa green
- Peak wavelength: 532nm
- Output power: <5 mW
- Beam divergence: <0.8 mRad
- Visible range, day: 50 feet
- Visible range, night: 820 yards
- IR Laser
-
- Class IIIb eye-safe IR
- Peak wavelength: 835nm
- Output power: <0.7 mW
- Beam divergence: <0.8 mRad
- 275 yard maximum visible range, day or night
- Illuminator Performance
-
- Eye safe IR LEDs
- Peak wavelength: 835nm
- Output power: <600 mW
- Adjustable beam angle from 2° spot to 30° flood
- 1100 yard maximum visible range, day or night
- Use and Handling
-
- Separate windage and elevation adjustment dials for the green and IR lasers
- Finger-adjustable impact point correction
- High and low visible/IR laser and illuminator outputs
- Double Tap activation switch: Single tap momentary use, double-tap 5 continuous minutes activation
- Shrouded activation button, windage, elevation, and output dials
- Rear-facing activation and low-battery indicators
- Construction Details
-
- 6061T-6 aluminum alloy housing
- Scratch and corrosion-resistant desert sand Type III hard coat finish anodized
- Broad -40 to 149°F operating temperature range
- Watertight to 16 feet
- 3.5x2.8" footprint
- Tethered battery cover, laser/LED emitter windows
- 8 oz weight
- Runs on one included CR123A battery
- Pre-drilled mounting holes for top rail mount or reflex sight
UPC: 381890092000 In the Box Steiner DBAL-A3 class 1/3R Civilian Visible Green/IR Laser Sight with IR Illuminator (Desert Sand) CR123A Battery Remote Activation Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner DBAL-A3 class 1 3R Civilian Visible Green IR Laser Sight with IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9009 Specs | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 16 yd / 15 m (Day)
820 yd / 750 m (Night) | | | | Laser Type | Class IIIb Eye Safe | | Peak Wavelength | 835 nm | | Peak Output | <0.7 mW | | Beam Divergence | 0.8 MRAD | | Range of Illumination | 275 yd / 250 m (Day, Night) | | | | Peak Wavelength | 835 nm | | Peak Output | <600 mW | | Beam Divergence | 2 to 30
