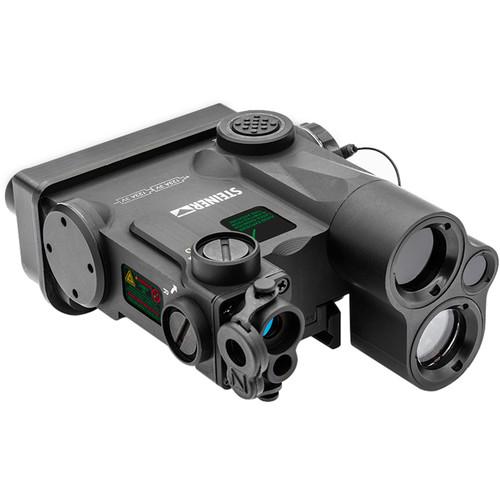

Product description The latest in the line of iconic aiming devices, the Steiner DBAL-A4 Visible Green/IR Aiming Laser Sight is the culmination of form and function utilizing many of today's invaluable illumination tools.Like the original, this Dual Beam Aiming Laser (DBAL) utilizes both a visible 520nm green laser with an 835nm invisible infrared (IR) laser for tactical use in a variety of situations during the day and night, and while using night-vision scopes and goggles. This model is outfitted with a 520nm green laser that is easier to see in low light and in the dark, especially at longer ranges, than the more common red lasers for easier target acquisition and tracking. Building on these aiming aids, Steiner added a powerful dual IR illuminator: one that is optimized for close use and another for maximum beam throw. This latest iteration of the DBAL sees the addition a visible white 500 lumen weaponlight. When put together, the visible and invisible aiming and illumination functions add a powerful accessory to a rifle or long gun without taking up a lot of rail space.Designed for daily use by tactical professionals, Steiner specifically engineered the housing to be thin so it will fit under scopes, dot sights, and other optics without causing an obstruction. The housing is made of a lightweight and durable aluminum alloy that is treated with a black scratch- and corrosion-resistant hard-anodized finish, and is waterproof and submersible to a depth of 16 feet. Intuitive tactile controls allow settings to be changed and the device to be activated in the dark. Rear facing ports enable the use of optional remote pressure pads so you can activate the DBAL without having to move your support hand and cause instability. - Visible Laser
-
- Class IIIa visible green
- Peak wavelength: 520nm
- Visible laser marks targets day and night
- Green laser wavelength is centered in the visual spectrum so it is easier to see at night than red
- Output power: <5 mW
- Beam divergence: <0.5 MRAD
- Visible range, day: 16 yards
- Visible range, night: 820 yards
- Infrared Laser
-
- Class I eye-safe IR
- Peak wavelength: 835nm
- Use to mark and track targets while using NVD scopes and goggles in stealth tactical situations
- Output power: <0.7 mW
- Beam divergence: <0.5 MRAD
- 275-yard maximum visible range
- Weaponlight
-
- White LED illumination
- Maximum of 500 lumens of bright light
- Light large areas for positive target identification while maintaining situational awareness
- Infrared Illuminator
-
- Class 3R eye-safe IR LEDs
- Peak wavelength: 850nm
- Output power: <600 mW
- Invisible illumination is undetectable unless users are NVDs like scopes and goggles to identify and mark targets in the dark without giving their position away
- Dual illuminators: one designed with a flood beam for close use, a second one works as a spot light for maximum throw
- 1100-yard maximum visible range
- Use and Handling
-
- Windage and elevation adjustment dials simultaneously adjusts both visible and IR lasers for faster and easier zeroing
- High and low visible/IR laser and illuminator outputs
- Double-tap activation switch: single tap for momentary use, double tap for 5 continuous minutes activation
- Rubberized positive tactile activation buttons are easy to find and use in the dark
- Simple rear-facing throw-lever output selector enables fast visible/IR selection for rapidly changing situations
- Dual remote activation cable ports for optional pressure pads
- Construction Details
-
- Low-profile housing is designed to fit under a scope to limit obstruction with magnified optics
- Lightweight and durable aluminum alloy housing
- Scratch- and corrosion-resistant black Type III hard-coat anodized finish
- Integrated 1.5" quick release long Picatinny/Weaver rail mount
- Waterproof and submersible to 16 feet
- Broad -4 to 149°F operating temperature range
- 3.5x2.8" footprint
- Tethered battery cover ensures it won't get lost when changing out batteries in the field
- Light 10.8 oz weight including batteries
- Runs on two included CR123A batteries
UPC: 000381890146 In the Box Steiner DBAL-A4 Visible Green/IR Aiming Laser Sight (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner DBAL-A4 Visible Green IR Aiming Laser Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9014 Specs | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 520 nm | | Peak Output | <5 mW | | Beam Divergence | <0.5 MRAD | | Range of Illumination | 820.5 yd / 750 m (Night)
16.4 yd / 15 m (Day) | | | | Laser Type | Class 1 Eye Safe | | Peak Wavelength | 835 nm | | Peak Output | <0.7 mW | | Beam Divergence | <0.5 MRAD | | Range of Illumination | 273.5 yd / 250 m (Night) | | | | Laser Type | Class 3R Eye Safe | | Peak Wavelength | 850 nm | | Peak Output | <600 mW | | Beam Divergence | 4
