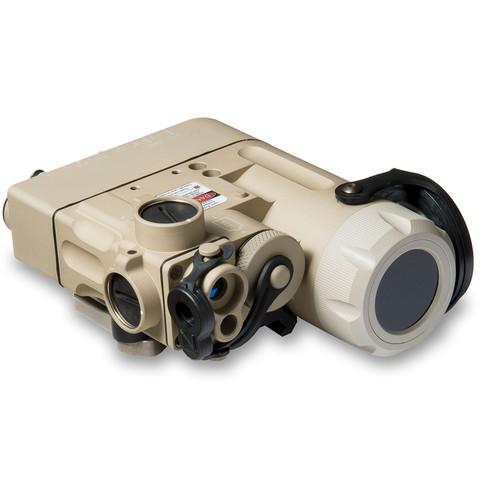

Product description Steiner Optics's DBAL-D2 Green/IR Aiming Laser Sight is a durable yet compact tactical and covert operations aiming device that combines an easy-to discern green visible and infrared aiming lasers with a powerful IR illuminator. Its 850nm infrared laser is visible with NVDs up to 273 yards away, and the green has a max range of 16' during the day or 273 yards at night. The human eye is able to see green easily and at further distances than the commonly-used red, and is virtually invisible to most species of game, making it ideal for varmint hunting. The two lasers are co-aligned to allow the operator to zero or correct the impact point of both lasers simultaneously using the shrouded windage/elevation dials. Its illuminator beam is adjustable from a tight 2° spot for target designation, or it can be opened up to 30° to flood a large area.A rear-facing pushbutton activation switch is easy to find, even in the dark, and the included remote pressure pad switch increases the usability and operator safety by allowing them to control the DBAL-D2 while remaining in the firing position. The rotary selector switch, also rear-facing, enables the operator to quickly choose the output - green visible, IR laser, IR illuminator - and intensity to suit the targeting task. The laser system runs on a single CR123A battery with a max runtime of about 3 hours. A quick-release Picatinny rail mount is integrated into the overall design to help reduce the form-factor to make this sight ideal for use on with virtually any rifle platform. The housing is made of the strong and lightweight 6061-T6 aluminum alloy with a desert sand corrosion and scratch-resistant MIL-STD hard-anodized finish. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Visible Laser Performance
-
- Class IIIa green
- Peak wavelength: 532nm
- Output power: <5 mW
- Beam divergence: <0.8 mRad
- Visible range, day: 50 feet
- Visible range, night: 820 yards
- Green light is easier to discern for the human eye than red, and is virtually invisible to most species of varmints and game animals
- IR Laser
-
- Class I eye-safe IR
- Peak wavelength: 850nm
- Output power: <0.7 mW
- Beam divergence: <0.8 mRad
- 275 yard maximum visible range, day or night
- Illuminator Performance
-
- Eye safe IR LED
- Peak wavelength: 850nm
- Output power: <600 mW
- Adjustable beam angle from 2° spot to 30° flood
- 1100 yard maximum visible range, day or night
- Use and Handling
-
- Co-aligned visible and IR lasers for day/night use without re-zeroing
- Shrouded windage/elevation dials prevent accidental re-adjustment
- Rear-facing visible, IR, IR illuminator selector dial
- Double Tap activation switch: Single tap momentary use, double-tap 5 continuous minutes activation
- Shrouded activation button, windage, elevation, and output dials
- Rear-facing activation and low-battery indicators
- Construction Details
-
- 6061T-6 aluminum alloy housing
- Scratch and corrosion-resistant desert sand Type III hard coat finish anodized
- Broad -40 to 149°F operating temperature range
- Waterproof and submersible to 16 feet
- Tethered battery cover, laser/LED emitter windows
- 12.5 oz weight
- Runs on one included CR123A battery
- Integrated quick-release Picatinny rail mount
UPC: 000381890023 In the Box Steiner DBAL-D2 Green/IR Aiming Laser Sight with IR LED Illuminator (Desert Sand) CR123A Battery Remote Activation Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner DBAL-D2 Green IR Aiming Laser Sight with IR LED Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9002 Specs | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 16 yd / 15 m (Day)
820 yd / 750 m (Night) | | | | Laser Type | Class I Eye Safe | | Peak Wavelength | 850 nm | | Peak Output | <0.7 mW | | Beam Divergence | 0.8 MRAD | | Range of Illumination | 275 yd / 250 m (Day, Night) | | | | Peak Wavelength | 850 nm | | Peak Output | <600 mW | | Beam Divergence | 2 to 30
