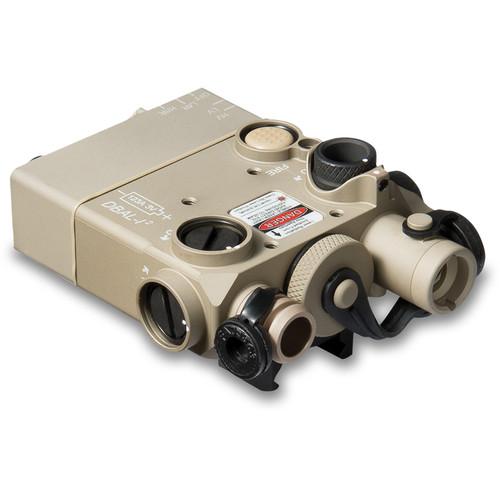

User Manual for Steiner DBAL-I2 Dual-Beam Green Visible IR Aiming Laser Click to enlarge the picture
Contents of the user manual for the Steiner DBAL-I2 Dual-Beam Green Visible IR
- Product category: Laser Sights Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Laser Sights
|
User manual for the Steiner DBAL-I2 Dual-Beam Green Visible IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description Steiner Optics' DBAL-I2 Dual-Beam Green Visible/IR Aiming Laser is a durable yet compact tactical and covert operations aiming device that combines green visible and infrared lasers to create a true day/night aiming device. Its 850nm infrared laser is visible with NVDs up to 273 yards away, and the green has a max range of 16.4 yards during the day or 820 yards at night. The human eye is able to see green easily and at further distances than the commonly used red, and is virtually invisible to most species of game, making it ideal for varmint hunting. Each laser has its own windage and elevation adjustment dials; and the visible laser dials are hand-adjustable for faster corrections. The four adjustment dials and push-button switch are protected to reduce snag-points and to prevent accidental activation and adjustments. Facing the user is a selector toggle switch to choose high or low output modes for each laser, and LEDs that show when the sight is activated and when the battery is low.The laser system runs on a single included CR123A battery with a max runtime of about three hours. A quick release Picatinny rail mount is integrated into the overall design to help reduce the form-factor to make this sight ideal for use on with virtually any rifle platform. Threaded mounting holes are machined into the top of the housing allowing for the easy addition of a short top rail for accessories such as IR illuminators or reflex sight. The housing is made of the strong and lightweight 6061-T6 aluminum alloy with a desert sand corrosion and scratch-resistant MIL-STD hard-anodized finish. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Aiming Laser Performance
-
- Class IIIa green
- Peak wavelength: 532nm
- < 5MW maximum power output
- Beam divergence: <0.8 mrad
- 16.4 yard maximum visible range during the day
- 820 yard maximum visible range at night
- The human eye is more sensitive to the green wavelength than red, making the dot easier to see at longer distances
- Illuminator Performance
-
- Class I infrared laser
- Peak wavelength: 850nm
- 0.7mW maximum power output
- Beam divergence: <0.8 mrad
- 273 yard maximum visible range, day or night
- Use and Handling
-
- Rear-facing visible/IR selector toggle switch
- Selectable low and high modes for each laser
- Independent windage and elevation adjustment dials for each laser
- Visible laser: finger-adjustable impact point correction
- Protected adjustment dials and activation switch reduce snag points and prevent accidental adjustments
- Rear-facing activation and low-battery indicators
- Pre-drilled mounting holes for top rail or reflex sight
- Construction Details
-
- Lightweight and durable 6061-T6 aluminum alloy housing
- Corrosion and scratch-resistant desert sand Type III hard-anodized finish
- Waterproof and submersible to 16.4'
- Broad -40 to 149°F operating temperature
- Quick release Picatinny rail mount
- Tethered visible & IR laser emitter windows and battery cover
- Low-profile 3.5 x 2.8" footprint
- Runs on a single CR123A battery
- 8.0 oz weight with battery
UPC: 000381890061 In the Box Steiner DBAL-I2 Dual-Beam Green Visible/IR Aiming Laser (Desert Sand) CR123A Battery Picatinny Rail Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner DBAL-I2 Dual-Beam Green Visible IR Aiming Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9006 Specs | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 16.4 yd / 15 m (Day)
820 yd / 750 m (Night) | | | | Laser Type | Class I | | Peak Wavelength | 850 nm | | Peak Output | 0.7 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 273 yd / 250 m (Day, Night) | | | | Runtime | 3 Hours | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Water Resistance | Waterproof to 16.4' / 5 m | | Dimensions | L: 3.5 x W: 1.6 x H: 2.8" / L: 8.8 x W: 4.0 x H: 7.0 cm | | Weight | 8.0 oz / 226.8 g | | | | Package Weight | 0.905 lb | | Box Dimensions (LxWxH) | 5.35 x 5.0 x 2.95" |
