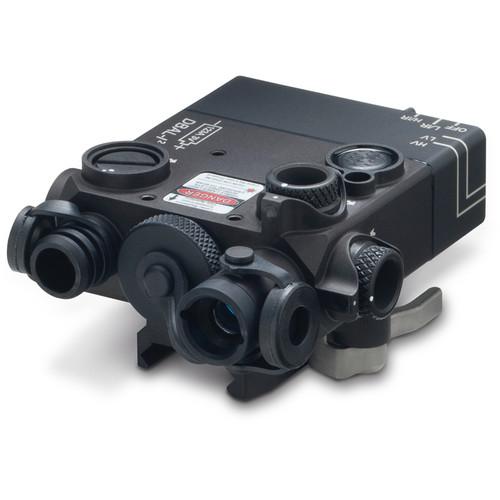

User Manual for Steiner DBAL-I2 Infrared Aiming Laser with IR LED Illuminator Click to enlarge the picture
Contents of the user manual for the Steiner DBAL-I2 Infrared Aiming Laser with
- Product category: Laser Sights Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Laser Sights
|
User manual for the Steiner DBAL-I2 Infrared Aiming Laser with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description Designed as an invaluable tactical tool for covert and night operations, Steiner Optics' DBAL-I2 Infrared Aiming Laser with IR LED Illuminator is a durable yet compact device that combines an infrared aiming laser with a powerful IR illuminator. Its 850nm infrared laser is visible with NVDs up to 273 yards away, and its illuminator beam is adjustable from a tight 2° spot for target designation, or it can be opened up to 30° to flood a large area to make staging or navigation easier using NVDs.A rear-facing rotary selector switch enables the operator to quickly choose the output - IR laser or IR illuminator - and intensity to suit the targeting task. The laser system runs on a single CR123A battery with a max runtime of about 3 hours. A quick-release Picatinny rail mount is integrated into the overall design to help reduce the form-factor to make this sight ideal for use on with virtually any rifle platform. The housing is made of the strong and lightweight 6061-T6 aluminum alloy with a matte black corrosion and scratch-resistant MIL-STD hard-anodized finish. Threaded mounting holes are machined into the top of the housing allowing for the easy addition of a short top rail for accessories such as larger IR illuminators or a reflex sight. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - IR Laser
-
- Class I eye-safe IR
- Peak wavelength: 850nm
- Output power: <0.7 mW
- Beam divergence: <0.8 mRad
- 273 yard maximum visible range, day or night
- Illuminator Performance
-
- Eye safe IR LED
- Peak wavelength: 850nm
- Output power: <600 mW
- Adjustable beam angle from 2° spot to 30° flood
- 1100 yard maximum visible range, day or night
- Use and Handling
-
- Shrouded windage/elevation dials prevent accidental re-adjustment
- Rear-facing IR laser, IR illuminator selector dial
- Rear-facing activation and low-battery indicators
- Pre-drilled mounting holes for top accessory rail or reflex sight
- Integrated remote cable port
- Construction Details
-
- 6061T-6 aluminum alloy housing
- Scratch and corrosion-resistant black Type III hard coat finish anodized
- Broad -40 to 149°F operating temperature range
- Waterproof and submersible to 16 feet
- Tethered battery cover, laser/LED emitter windows
- 8 oz weight
- Runs on one included CR123A battery
- Integrated quick-release Picatinny rail mount
UPC: 000381890078 In the Box Steiner DBAL-I2 Infrared Aiming Laser with IR LED Illuminator (Matte Black) CR123A Battery Picatinny Rail Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner DBAL-I2 Infrared Aiming Laser with IR LED Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9007 Specs | | | Laser Type | Class I Eye Safe | | Peak Wavelength | 850 nm | | Peak Output | <0.7 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 273 yd / 250 m | | | | Peak Wavelength | 850 nm | | Peak Output | <600 mW | | Beam Divergence | 2 to 30
