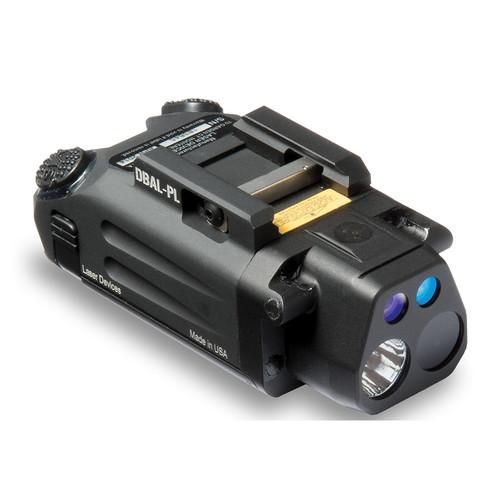

Product description Steiner Optics gives tactical professionals a 24/7 day/night illumination tool with the DBAL-PL Visible/IR Weaponlight with Green/IR Aiming Lasers. This compact multi-function laser aiming device incorporates a 400-lumen white LED light and a green visible aiming laser with an infrared LED illuminator and IR aiming laser. The single-output LED light is ideal for clearing rooms and blinding targets and close to medium range. The green laser is the perfect color choice because the human eye is better able to see the green wavelength and at further distances than the commonly-used red and is virtually invisible to most species of game, making it ideal for varmint hunting. During covert operations, the IR laser is easy to discern for targeting, while the illuminator can be used to flood large areas for clearing rooms while using NVDs or NV weapon sights.The DBAL-PL has dual switches that control the visible and IR systems. Press the left button to activate the IR illuminator and laser systems, and use the right one for the weaponlight and green laser systems. Once activated, users can choose from laser/weaponlight or IR laser/IR illuminator. The lasers are co-aligned to make zeroing and shot-correction easier, faster, and more reliable. The visible laser has a maximum visible range of 2460' at night and 50' during the day, the IR laser has a max visibility of 820' day or night.The sight features a lightweight and durable 6061-T6 aluminum alloy housing with a scratch and corrosion-resistant matte black Type III hard coat anodized finish. To withstand the rigors of daily use, the housing is sealed to be submersible to 16' and recoil-resistant. It runs on two CR123A batteries, and an easily accessible battery compartment enables users to quickly and easily change batteries while the DBAL is mounted. A Picatinny rail mount is integrated on the top of the housing for repeatable fast tool-free removal and installation without the need to re-zero the sight. This versatile illumination and aiming device has a compact 3.5x1.6x1.3" form factor and weighs just 5.4 oz with batteries. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Visible Weaponlight
-
- Single 400-lumen output
- White recoil-resistant LED
- Visible Laser
-
- Class IIIa green visible aiming laser
- 532nm peak wavelength
- <5 mW power output
- <0.8 mRad beam divergence
- Visible range of 2460' at night and 50' during the day
- Green wavelength is easy to see with the human eye but virtually invisible to many animal species
- IR Laser
-
- Class I eye safe IR laser
- 850nm peak wavelength
- <0.7 mW power output
- <0.8 mRad beam divergence
- 820' maximum visible range
- IR Illuminator
-
- Eye-safe infrared LED
- 850 nm peak wavelength
- <600 mW power output
- 18° beam divergence
- Max illumination range of 820'
- Use and Handling
-
- Co-aligned green laser and IR laser
- Adjustable windage and elevation screws adjust both visible and IR lasers
- Dual pushbutton switch system: Left switch controls the IR systems, right controls the visible systems
- Choose either green laser or weaponlight / IR laser or IR illuminator
- Construction Details
-
- Lightweight and durable 6061-T6 aluminum housing
- Corrosion and scratch-resistant Type III matte-black hard coat anodized finish
- Integrated Picatinny rail mount
- Easy-access quick-release battery latch - change batteries without un-mounting
- Broad -40 to 149°F operating temperature range
- Waterproof and submersible to 16 ft, and recoil resistant
- Runs on two included CR123A batteries
- Compact, 3.5x1.6x1.3" form factor
- Lightweight: 5.4 oz weight
In the Box Steiner DBAL-PL Visible/IR Weaponlight with Green/IR Aiming Lasers (Matte Black) 2 x CR123A Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner DBAL-PL Visible IR Weaponlight with Green IR Aiming Lasers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9021 Specs | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 50' / 15 m (Day)
2460' / 750 m (Night) | | | | Laser Type | Class I Eye Safe | | Peak Wavelength | 850 nm | | Peak Output | <0.7 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 820' / 250 m | | | | Peak Wavelength | 850 nm | | Peak Output | <600 mW | | Beam Divergence | 18
