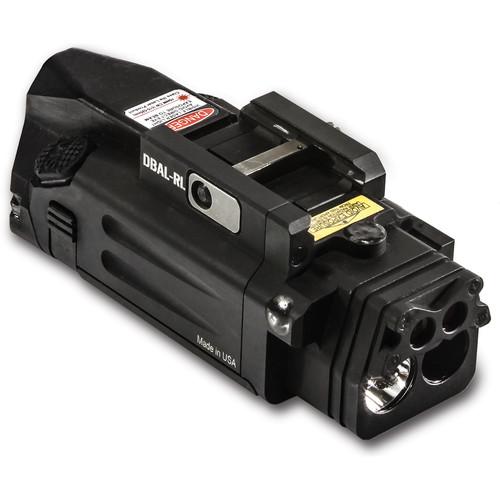

User Manual for Steiner Dual Beam Aiming Laser Rifle Light Click to enlarge the picture
Contents of the user manual for the Steiner Dual Beam Aiming Laser Rifle
- Product category: Laser Sights Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Laser Sights
|
User manual for the Steiner Dual Beam Aiming Laser Rifle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description Steiner Optics gives tactical professionals a 24/7 day/night illumination tool with the Dual Beam Aiming Laser Rifle Light. This compact, multi-function laser aiming device features a 400-lumen white LED light, a green visible aiming laser, and an IR laser and illuminator for use with night vision gear. The single-output LED light is ideal for clearing rooms and blinding targets and close to medium range. The green laser is the perfect color choice because the human eye is better able to see the green wavelength and at further distances than the commonly-used red and is virtually invisible to most species of game, making it ideal for varmint hunting. During covert operations, the IR laser is easy to discern for targeting, while the illuminator can be used to flood large areas for clearing rooms while using NVDs or NV weapon sights.The DBAL-RL has dual switches that control the visible and IR systems, and a remote pressure switch. Once activated, the user can choose from laser/weaponlight or IR laser/IR illuminator. The lasers are co-aligned to make zeroing and shot-correction easier, faster, and more reliable. The visible laser has a maximum visible range of 2460' at night and 50' during the day, the IR laser has a max visibility of 820' day or night. The sight features a lightweight and durable 6061-T6 aluminum alloy housing with a scratch and corrosion-resistant matte black Type III hard coat anodized finish. To withstand the rigors of daily use, the housing is sealed to be submersible to 16' and recoil-resistant. It runs on two CR123A batteries, and an easily accessible battery compartment enables users to quickly and easily change batteries while the DBAL is mounted. A Picatinny rail mount is integrated on the top of the housing for repeatable fast tool-free removal and installation without the need to re-zero the sight. This versatile illumination and aiming device has a compact 3.5x1.6x1.3" form factor and weighs just 5.4 oz with batteries. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARxtbfztttrbuvstw), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Visible Weaponlight
-
- Single 400-lumen output
- White recoil-resistant LED
- Visible Laser
-
- Class IIIa green visible aiming laser
- 532nm peak wavelength
- <5 mW power output
- <0.8 MRAD beam divergence
- Visible range of 2460' at night and 50' during the day
- Green wavelength is easy to see with the human eye but virtually invisible to many animal species
- IR Laser
-
- Class I eye safe IR laser
- 850nm peak wavelength
- <0.7 mW power output
- <0.8 MRAD beam divergence
- 820' maximum visible range
- IR Illuminator
-
- Eye-safe infrared LED
- 850 nm peak wavelength
- <600 mW power output
- 18° beam divergence
- Max illumination range of 820'
- Use and Handling
-
- Co-aligned green laser and IR laser
- Adjustable windage and elevation screws adjust both visible and IR lasers
- Dual pushbutton switch system: Left switch controls the IR systems, right controls the visible systems
- Remote pressure switch
- Choose either green laser or weaponlight / IR laser or IR illuminator
- Construction Details
-
- Lightweight and durable 6061-T6 aluminum housing
- Corrosion and scratch-resistant Type III matte-black hard coat anodized finish
- Integrated Picatinny rail mount
- Easy-access quick release battery latch — change batteries without un-mounting
- Broad -40 to 149°F operating temperature range
- Waterproof and submersible to 16 ft, and recoil resistant
- Runs on two included CR123A batteries
- Compact, 3.5x1.6x1.3" form factor
- Lightweight: 5.4 oz weight
UPC: 000381890276 In the Box Steiner Dual Beam Aiming Laser Rifle Light Remote Pressure Switch & Cable 2 x CR123A Batteries Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner Dual Beam Aiming Laser Rifle Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9027 Specs | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 50' / 15 m (Day)
2460' / 750 m (Night) | | | | Laser Type | Class I Eye Safe | | Peak Wavelength | 850 nm | | Peak Output | <0.7 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 820' / 250 m | | | | Peak Wavelength | 850 nm | | Peak Output | <600 mW | | Beam Divergence | 18
