User Manual for Steiner GS3 2-10x42 Riflescope Click to enlarge the picture
Contents of the user manual for the Steiner GS3 2-10x42 Riflescope
- Product category: Riflescopes Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Riflescopes
 |
User manual for the Steiner GS3 2-10x42 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|

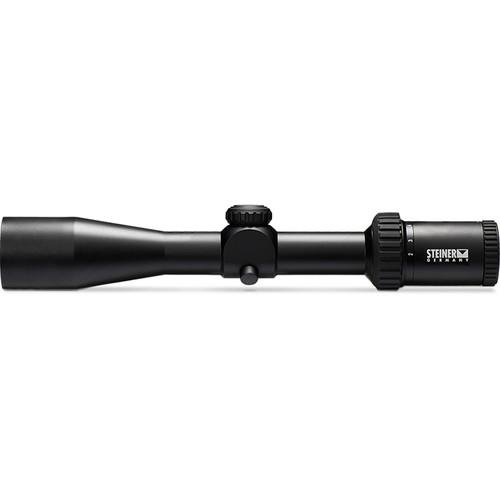

Product description With a generous objective lens size and zoom magnification, the GS3 2-10x42 Riflescope from Steiner Optics delivers a sharp, clear image. This scope features Steiner's Color Adjusted Transmission lens coatings, which amplify contrast to visually separate game from its surroundings. Windage and elevation adjustments of 1/4 MOA per click with a maximum range of 70 MOA afford precise adjustment for wind and trajectory. The Steiner 4A reticle sits in the second focal plane and provides a simple, uncluttered aiming tool. The short 5.4" mounting length permits use of the GS3 on short actions, muzzleloaders and lightweight mountain rifles. The scope's 30mm main tube is machined from solid aluminum for durability, and the nitrogen-filled housing is waterproof and fog-proof. The 13.5", 18 oz scope offers a diopter adjustment range of +2 to -3 and eye relief of 3.5 to 4.3". - Optical Performance
-
- Objective diameter: 42mm
- 2-10x magnification
- CAT-Color Adjusted Transmission coatings optimize contrast for spotting game
- Linear field of view:52-10.5' at 100 yd
- Parallax correction: fixed at 328'
- Eye relief: 3.5-4.3"

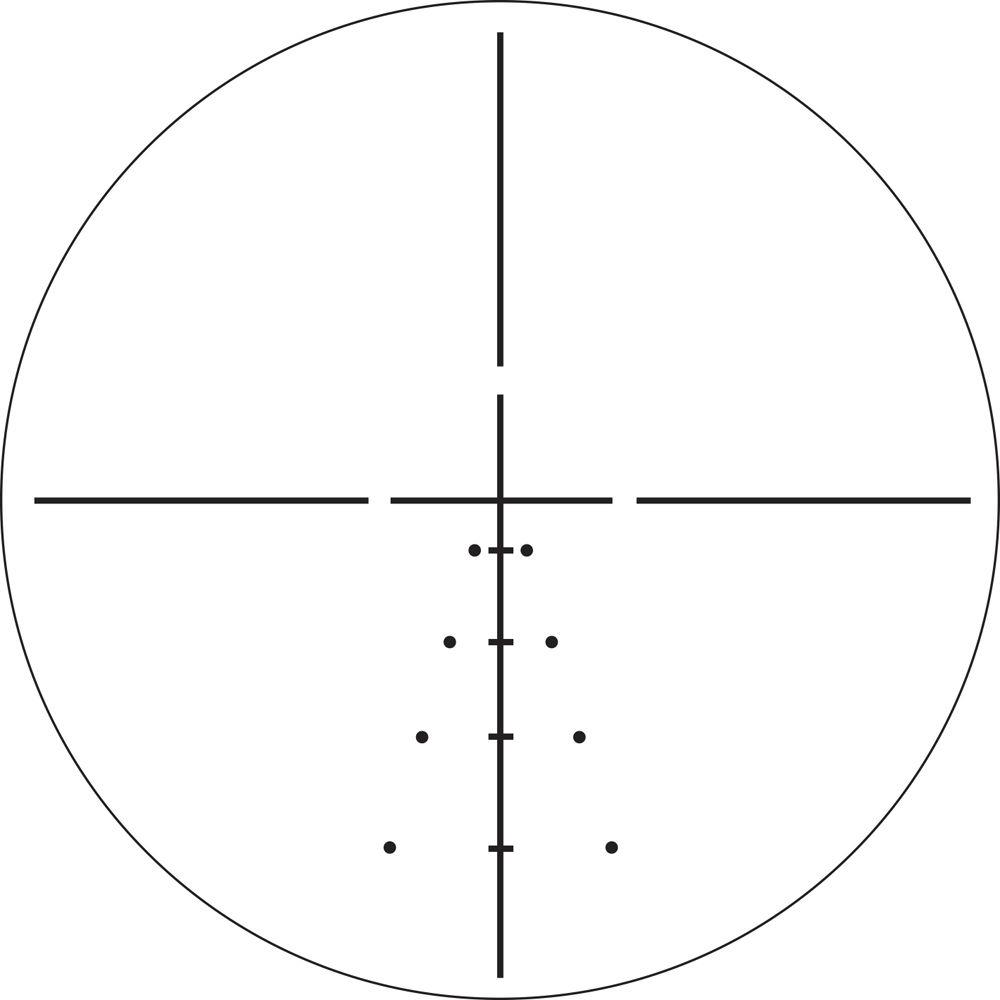

- Steiner 4A Reticle
-
- Provides a simple, uncluttered aiming tool
- Second focal plane
- Use and Handling
-
- 1/4 MOA per click impact point correction
- Windage/elevation adjustment range: 70
- Construction Details
-
- Maintube diameter: 30mm
- Machined aluminum construction for durability
- Nitrogen-filled; waterproof & fogproof
- Short 5.4" mounting length permits use on short actions, muzzleloaders and lightweight mountain rifles
UPC: 000382350090 In the Box Steiner GS3 2-10x42 Riflescope (4A Reticle) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner GS3 2-10x42 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner GS3 Specs | | | Magnification | 2 to 10x | | Objective Lens Diameter | 42 mm | | Field of View | 2x: 52' @ 100 yd / 17.3 m @ 100 m
10x: 10.5' @ 100 yd / 3.5 m @ 100 m | | Exit Pupil Diameter | 2x: 12 mm
10x: 4.2 mm | | Eye Relief | 3.5 to 4.3" / 89 to 108 mm | | | | Reticle Type | Steiner 4A Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 328' / 100 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 34.3 cm | | Weight | 18 oz / 510 g |
