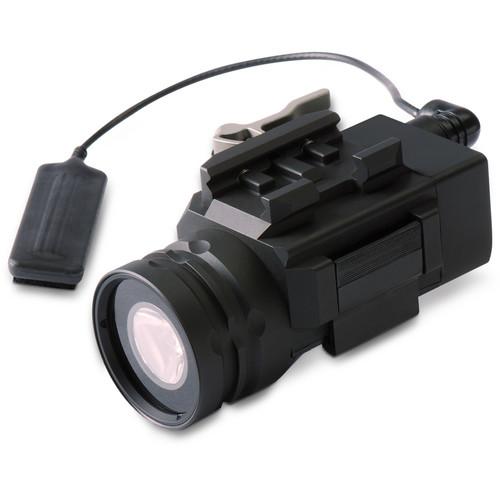

Product description When your mission shifts faster than you can change lights, Steiner Optics' Mk3 Battle Light LED Weaponlight / IR Illuminator gives you a dual-purpose tool with the ability to instantly move from visible light to infrared illumination with the flip of a switch. It has a 500-lumen max white light output and disorientating strobe mode with a Total Internal Reflection (TIR) lens that is factory-focused to produce a smooth 8° beam without holes or hot spots that has been optimized for maximum throw. Move the rear-facing toggle switch to the IR settings with two outputs for use with NVDs.The Mk3 features a push button switch and a separate integrated port for an optional remote cable switch when mounted on a firearm. To cut weight and reduce user fatigue the light is made of a lightweight aluminum alloy and weighs in at just 8 oz including batteries and the integrated Picatinny/Weaver quick-release mount. Designed for durability, the housing features a corrosion and scratch-resistant anodized finish, is O-ring sealed to make it waterproof and submersible to 16', and its broad operating temperature enables it to be used with confidence in most weather and conditions. - Light Performance
-
- 500-lumen max output
- White LED emitter
- Factory-focused Total Internal Reflection (TIR) lens
- TIR lens optimizes beam for maximum throw and coverage, and produces a smooth beam without holes or hot spots
- 8° focused spot light
- Disorientating strobe mode
- IR Illuminator
-
- 850nm eye-safe IR LED
- Low output: 150mW
- High output: 600mW
- Switching
-
- Type: Push button
- Location: Tailcap
- Textured boot sits flush with housing to prevent accidental activation

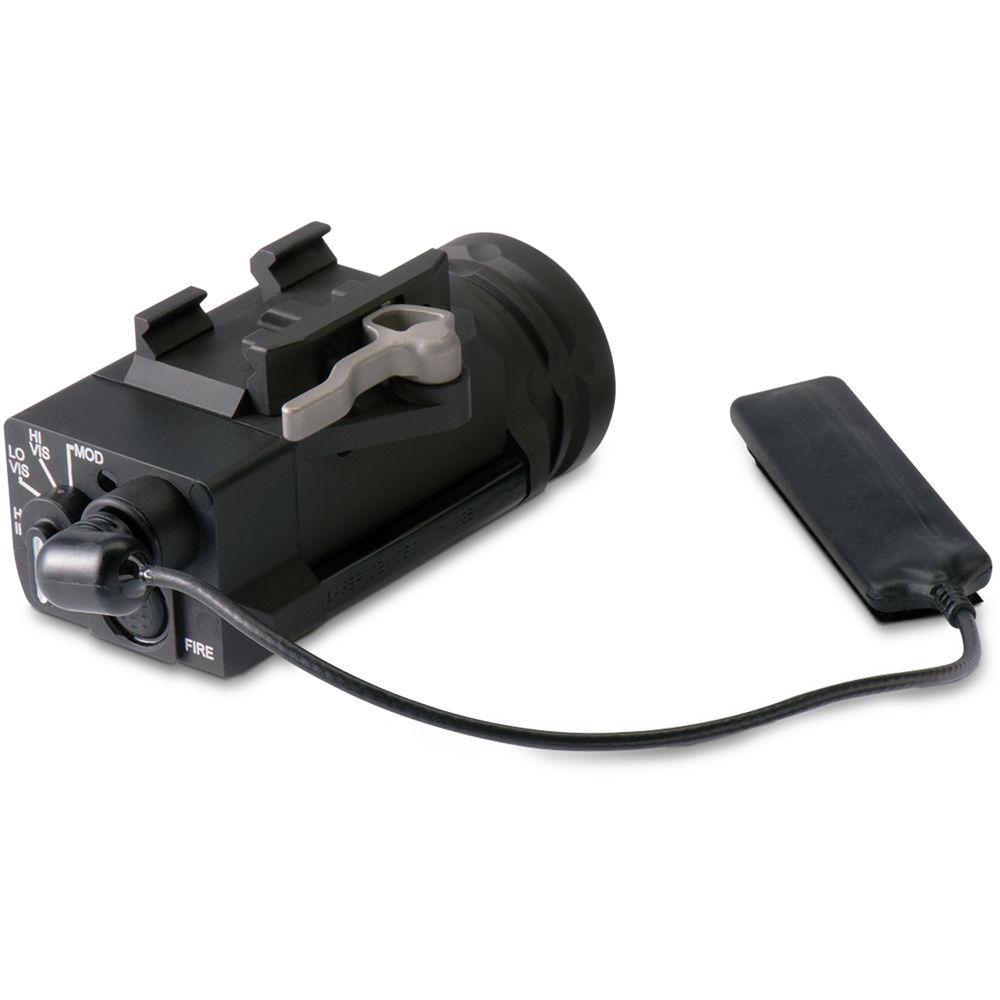

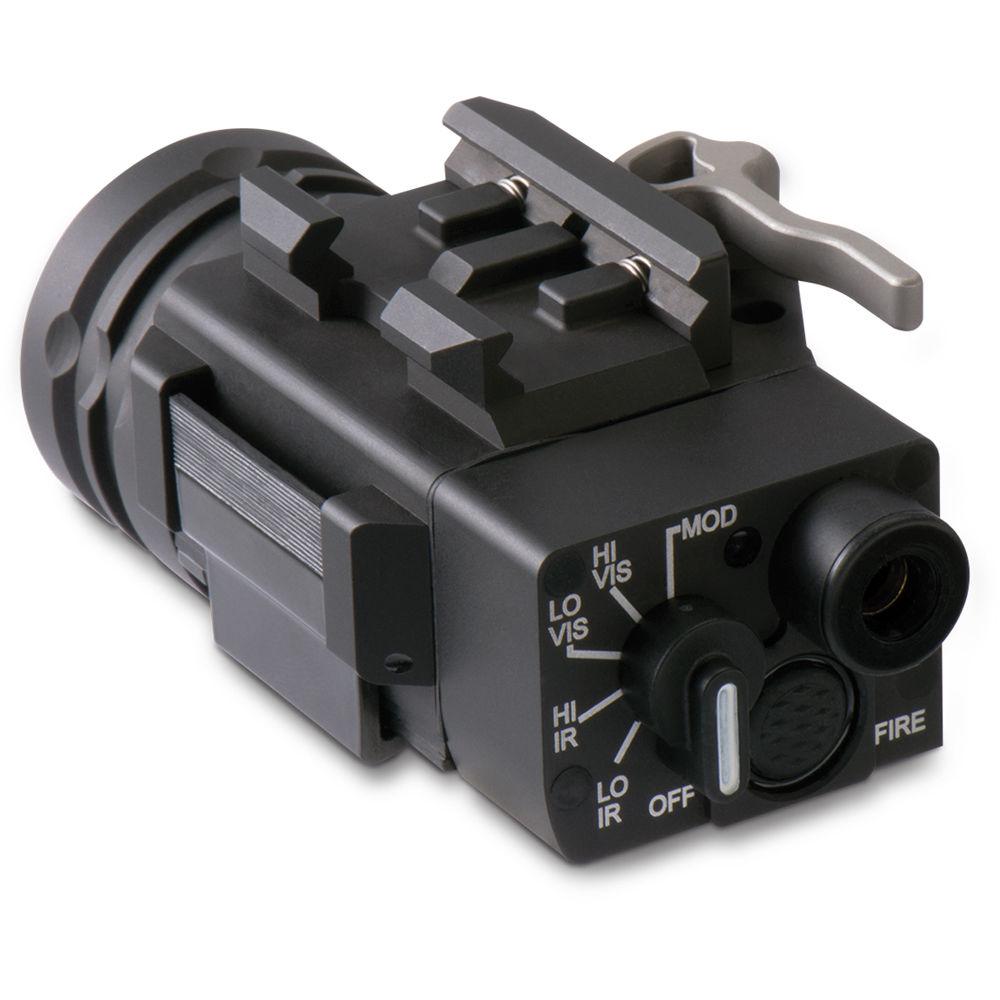

- Mode selector to easily switch between IR and visible outputs and strobe
- Integrated cable port for optional remote pressure pad switch
- Construction
-
- Lightweight aluminum alloy housing
- Corrosion and scratch-resistant matte-black anodized finish
- Waterproof and submersible to 16'
- Broad -40 to 150°F operating temperature range
- Less than 4" long and weighs 8 oz including batteries and mount
- Runs on two user-supplied CR123A batteries
- Integrated quick-release Picatinny/Weaver rail mount
UPC: 000381890719 In the Box Steiner Mk3 Battle Light LED Weaponlight / IR Illuminator Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner Mk3 Battle Light LED Weaponlight IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner MK 3 Specs | | | Illumination Source | White LED emitter | | Output Range | 500 lumens | | Beam Angle | 8° | | | | Source | IR LED | | Peak Wavelength | 850 nm | | Output | Low: 150 mW
High: 600 mW | | | | Battery | 2 x CR123A | | Construction | Aluminum alloy | | Weatherproofing | Waterproof, submersible to 16' / 5 m | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Dimensions | 4.0 x 2.2 x 1.7" / 10.1 x 5.5 x 4.4 cm | | Weight | 8.0 oz / 226.8 g, with battery and mount | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 5.2 x 4.8 x 3.1" |
