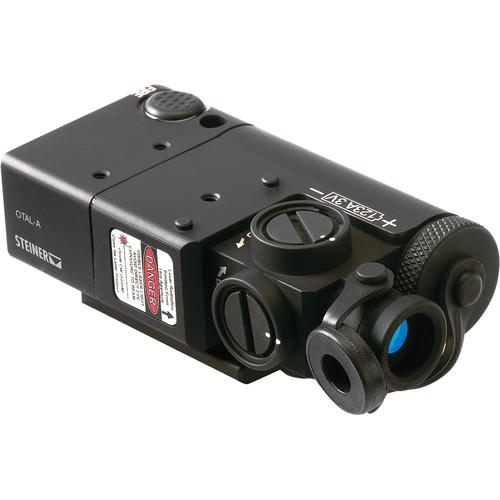

Product description The compact and powerful OTAL-A Offset Green Aiming Laser from Steiner Optics features a visible 532nm green aiming laser with a max range of 16' during the day or 273 yards at night. Low-profile shrouded windage and elevation dials allows users to zero and perform shot correction easily while reducing potential snag points and preventing accidental adjustments. A rear-facing toggle selector switch controls the low or high output intensity, and the textured top-mounted recessed activation switch is easy to find by touch. An optional remote activation pressure pad switch is available and plugs into rear-facing port to give users control the OTAL-A while remaining in the firing position. The laser system runs on a single CR123A battery with a max runtime of about 3 hours.A quick-release HT mount is integrated into the overall design to reduce the form-factor to make this sight ideal for use on with virtually any rifle platform with a Picatinny rail, enabling it to be mounted in front of scopes, dot sights, or NV scopes. The housing is made of the strong and lightweight 6061-T6 aluminum alloy with a black corrosion and scratch-resistant Mil-Spec hard-anodized finish. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Performance
-
- Class IIIa visible green
- 532nm peak wavelength
- 5mW max output
- Visible to 16' during the day
- 573 yd maximum visible range at night
- Use and Handling
-
- High and low output modes
- Rear-facing selector toggle switch
- Integrated push-button activation switch
- Port for remote pressure pad switch
- Shrouded windage and elevation impact point correction dials
- Shrouded dials prevent snags and accidental adjustments
- Construction Details
-
- 6061T-6 aluminum housing
- Type III anodized hard coat with black finish
- Broad -40 to 149°F operating temperature range
- Waterproof and submersible to 16 ft
- Tethered laser port and battery cover
- Compact 3.8x1.8" footprint
- 6 oz weight
- Integrated quick release HT Picatinny mount
- Runs on one included CR123 battery
UPC: 000381890528 In the Box Steiner OTAL-A Offset Green Aiming Laser (Black) CR123A Battery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner OTAL-A Offset Green Aiming Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9052 Specs | | | Laser Type | Class IIIa | | Laser Color | Green | | Peak Wavelength | 532 nm | | Peak Output | <5 mW | | Beam Divergence | <0.8 MRAD | | Range of Illumination | 16' / 5 m (Day)
273 yd / 250 m (Night) | | | | Mount | Quick Release Picatinny | | | | Runtime | 3 Hours | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Water Resistance | Waterproof to 16.4' / 5 m | | Dimensions | L: 3.8 x W: 1.5 x H: 1.8" / L: 9.7 x W: 3.8 x H: 4.6 cm | | Weight | 6.0 oz / 170.0 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 5.35 x 4.9 x 3.0" |
