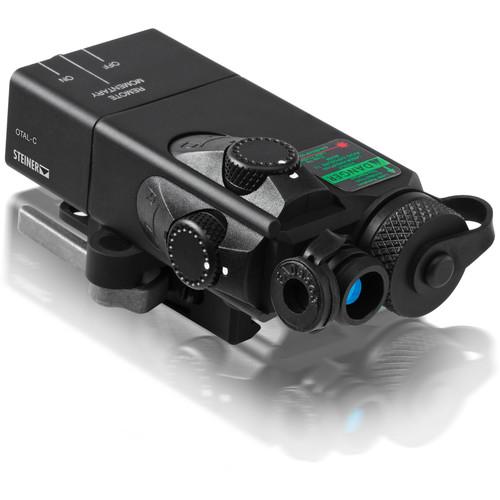

User Manual for Steiner OTAL-C IR Offset Aiming Laser Click to enlarge the picture
Contents of the user manual for the Steiner OTAL-C IR Offset Aiming Laser
- Product category: Laser Sights Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Laser Sights
|
User manual for the Steiner OTAL-C IR Offset Aiming Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description The OTAL-C IR Offset Aiming Laser from Steiner Optics is a low-profile, lightweight device designed for the M-4 platform for confident target acquisition. It features a Class Ia, eye-safe 850nm infrared aiming laser with a max range 273 yards when used with night vision devices. Low-profile windage and elevation dials allows users to zero-in and perform shot corrections easily while reducing potential snag points and preventing accidental adjustments. A rear-facing toggle switch turns the unit on and off, and a remote pressure pad switch is included so the user can activate the OTAL while remaining in the firing position. The laser system runs on a single AA battery with a max runtime of about 5 hours. A quick-release HT mount is integrated into the overall design to reduce the form-factor to make this sight ideal for use on with virtually any rifle platform with a Picatinny rail, enabling it to be mounted in front of scopes, dot sights, or NV scopes. The housing is made of the strong and lightweight aluminum alloy with a black finish. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Performance
-
- Class Ia infrared
- 850nm peak wavelength
- <0.7 mW output
- Range: 273 yards when used with night vision devices
- Use and Handling
-
- Rear-facing selector toggle switch
- Remote pressure pad switch
- Low-profile windage and elevation impact point correction dials
- Construction Details
-
- Aluminum housing
- Type III anodized hard coat with black finish
- Broad -40 to 149°F operating temperature range
- Submersible to 16'
- Tethered laser port and battery cover
- Compact V3.8 x 1.8 x 1.4" footprint
- 5.6 oz weight
- Integrated quick release HT Picatinny mount
- Runs on one AA battery
UPC: 000381890566 In the Box Steiner OTAL-C IR Offset Aiming Laser Remote Cable Pressure Pad Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner OTAL-C IR Offset Aiming Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9056 Specs | | | Peak Output | <0.7 mW | | Range of Illumination | 273 yd / 250 m | | | | Laser Type | Class Ia | | Peak Wavelength | 850 nm | | | | Mount | Quick Release Picatinny | | | | Runtime | 5 Hours | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Water Resistance | Waterproof to 16.4' / 5 m | | Dimensions | L: 3.8 x W: 1.4 x H: 1.8" / L: 9.7 x W: 3.6 x H: 4.6 cm | | Weight | 4.9 oz / 138.9 g (with Battery) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 5.2 x 4.8 x 3.0" |
