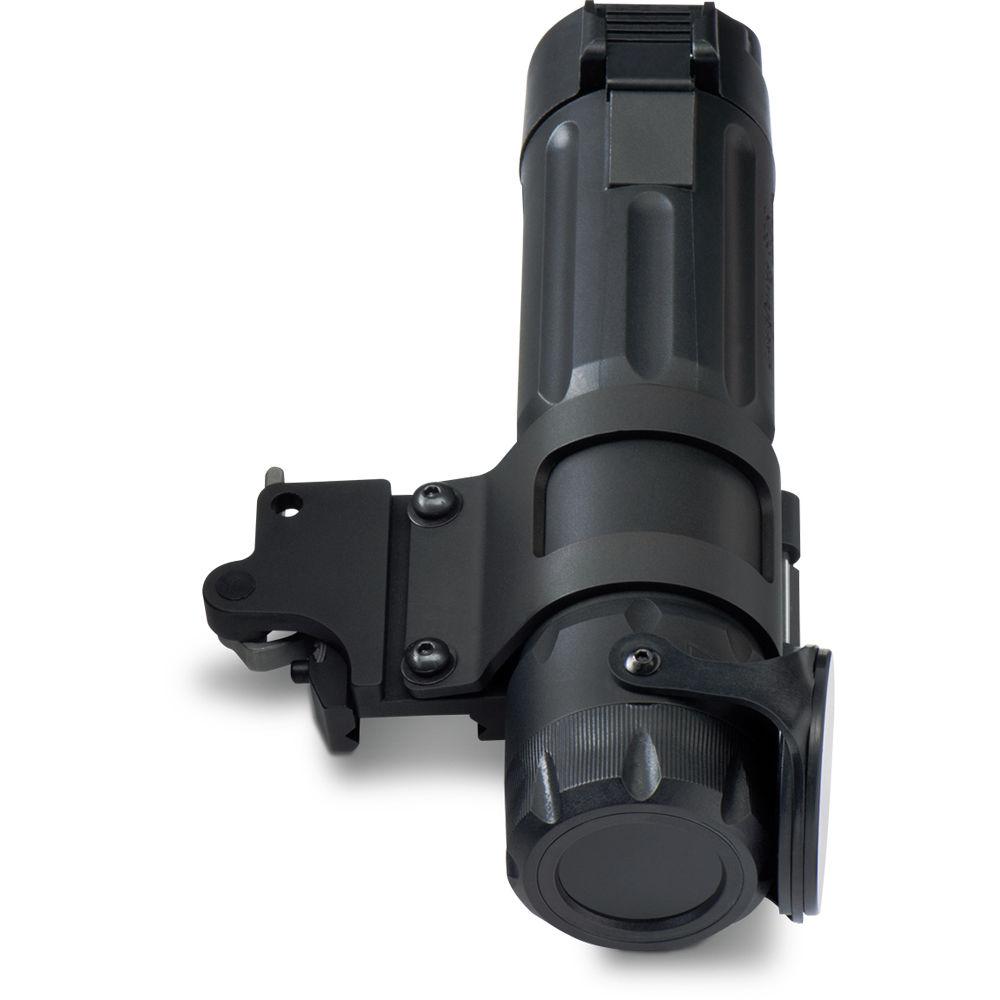

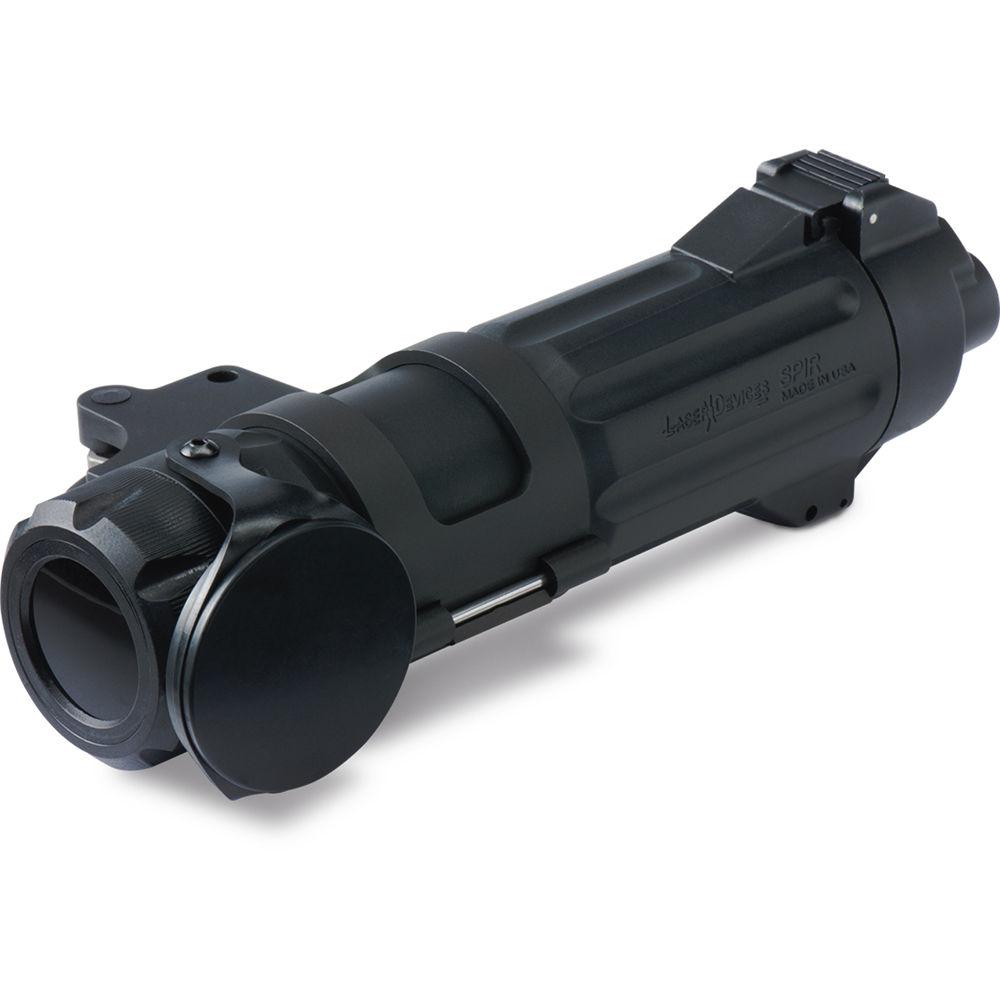

User Manual for Steiner SPIR Special Purpose IR LED Illuminator Click to enlarge the picture
Contents of the user manual for the Steiner SPIR Special Purpose IR LED
- Product category: Light & Laser Accessories Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Light & Laser Accessories
 |
User manual for the Steiner SPIR Special Purpose IR LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|
Product description Utilizing an eye-safe 850nm IR LED emitter, the SPIR Special Purpose IR LED Illuminator from Steiner will illuminate shadowed areas or targets for users equipped with a night vision device. This unit has a selector switch for changing between the 300mW and 600mW output settings along with an integrated momentary activation switch on the tailcap. Also, it has an integrated remote cable port and comes with a quick release Picatinny/Weaver mount for attachment to a firearm.
The SPIR features an anodized-aluminum housing for durability and it is waterproof to 16' deep. Additionally, it is powered by two CR123A batteries which will provide a runtime of about two hours. - IR Illuminator
-
- 850nm eye-safe IR LED
- Low Output: 300mW
- High Output: 600mW
- 2-30° divergence
- Switching
-
- Type: Push button
- Location: Tailcap
- Momentary on activation turns on SPIR with pressed and turns off when released
- Mode selector to easily switch between IR outputs
- Integrated cable port for included 7" remote pressure pad switch
- Construction
-
- Lightweight aluminum alloy housing
- Waterproof and submersible to 16'
- Integrated quick release Picatinny/Weaver rail mount
- Runs on two CR123A batteries
UPC: 000381890702 In the Box Steiner SPIR Special Purpose IR LED Illuminator - 7" Remote Cable Switch
- 5/8" Tape Fastener Loop
- Illuminator Exit Port Cover Strap
- IR LED Illuminator Exit
- 2 x CR123A Batteries
- Storage Pouch
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner SPIR Special Purpose IR LED Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9070 Specs | | | Source | IR LED | | Peak Wavelength | 850 nm | | Output | Low: 300 mW
High: 600 mW | | Beam Divergence | 2-30° | | | | Battery | 2 x CR123A | | Construction | Aluminum alloy | | Weatherproofing | Waterproof, submersible to 16' / 5 m | | Dimensions | 6.75 x 1.55 x 1.96" / 17.1 x 3.9 x 5.0 cm | | Weight | 6.5 oz / 184.3 g, with battery and mount | | | | Package Weight | 1.215 lb | | Box Dimensions (LxWxH) | 8.4 x 5.55 x 3.0" |
