User Manual for Steiner Tri-Band MCID Beacon Click to enlarge the picture
Contents of the user manual for the Steiner Tri-Band MCID Beacon
- Product category: Laser Sights & Illuminators Steiner
- Brand: Steiner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Steiner Laser Sights & Illuminators
 |
User manual for the Steiner Tri-Band MCID Beacon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Steiner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Steiner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Steiner product will considerably shorten its lifespan!
|

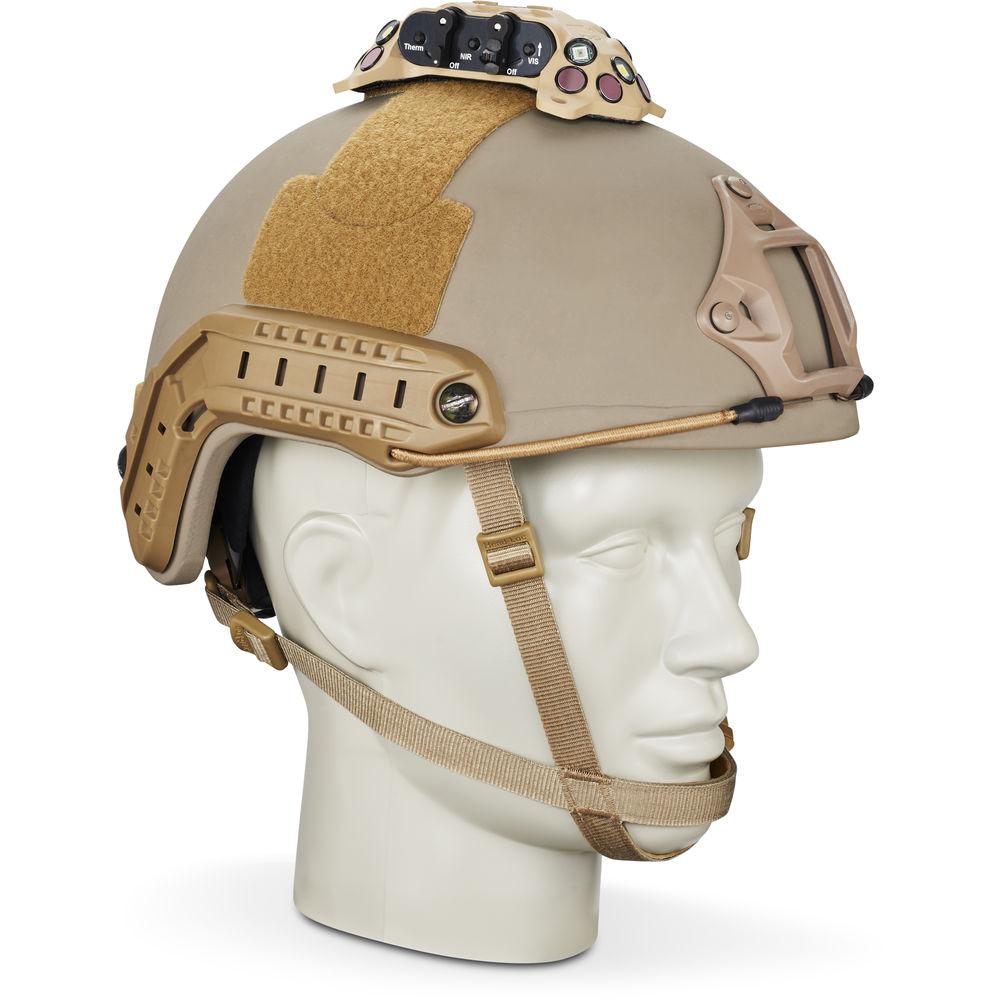

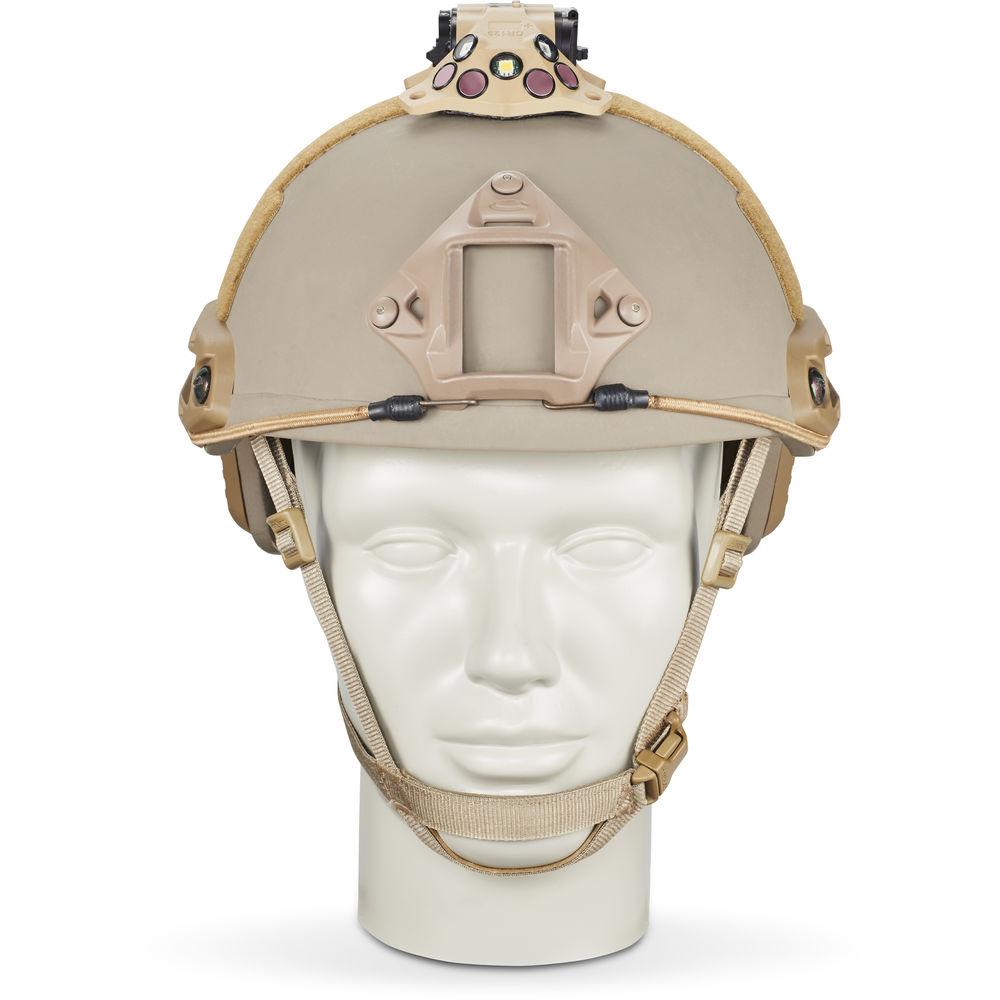

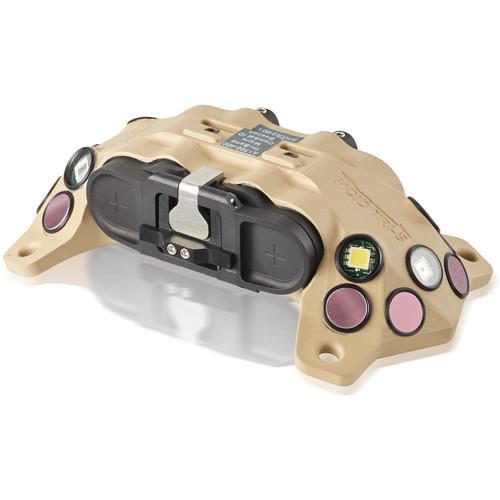

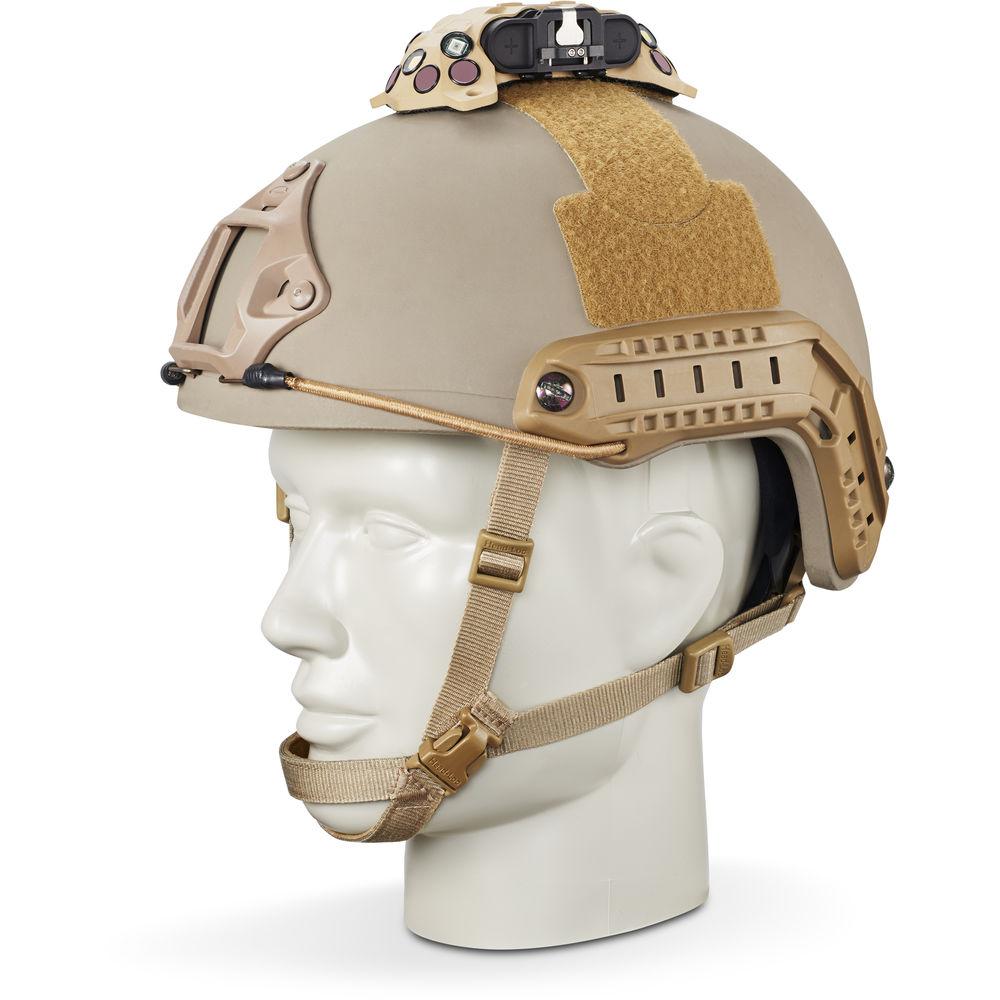

Product description Steiner's Tri-Band MCID Beacon is designed to give a tactical advantage by empowering personnel with covert signaling capabilities in three optical bands: visible, NIR, and MWIR. It can be worn on helmets, MOLLE vests, and packs or attached to vehicles. For a simultaneous or separate operation of the three groups of LEDs, the device offers a dedicated On switch for each spectral band. The LED emitters are specially arranged to generate a wide-angle (200°) omnidirectional beam of infrared light.
To withstand the rigors of the battlefield and other adverse conditions, the polymer housing is lightweight, durable, and waterproof (submersible to 33'). Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Light Performance
-
- 14 LED emitters generate flashing beacons
- 3 LEDs emit beacons in white light
- 3 LEDs emit beacons in NIR (0.88µm)
- 8 LEDs emit beacons in MWIR (3 - 5µm)
- 200° omnidirectional cone of light

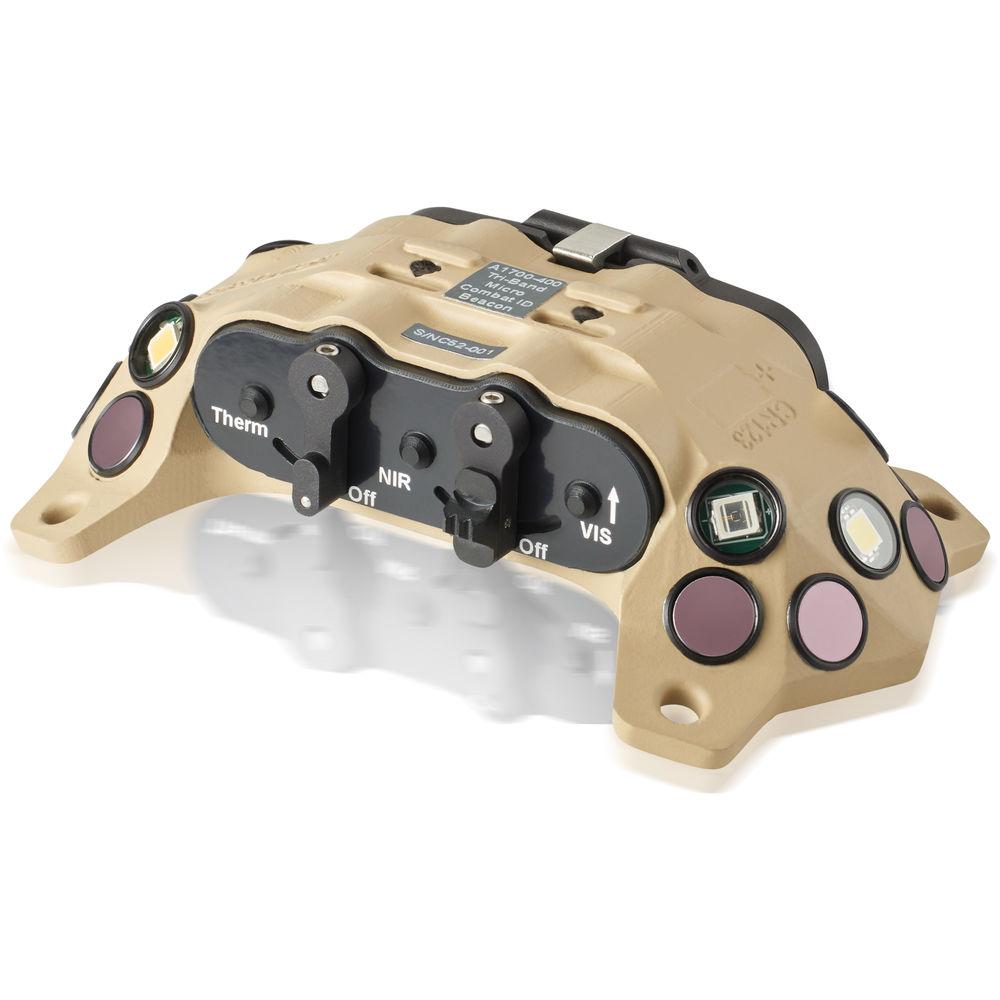

- 3 dedicated On switches allow separate operation of three spectral bands
- Construction Details
-
- Lightweight and durable polymer housing
- Mountable on helmets, MOLLE vests, packs, or vehicles
- Waterproof, submersible to 33' for 30 minutes
UPC: 000381893161 In the Box Steiner Tri-Band MCID Beacon (VIS, NIR, MWIR) - 3 x CR-2032 Batteries
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Steiner Tri-Band MCID Beacon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSteiner 9316 Specs | Light Sources | 3 x VIS (White) LEDs
3 x SWIR LEDs
8 x MWIR LEDs
Beam Width: 200° | | Spectral Band | VIS: White Light, NIR: 0.88 µm, MWIR (Thermal): 3 - 5 µm | | Power Output | VIS: 80 lumens
IR: not provided by manufacturer | | Battery / Runtime | 3 x CR-123 batteries / 4.5 - 14 h | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Temperature | -40 to 176°F / -40 to 80°C | | Waterproof Performance | Submersible to 33' / 10 m for 30 minutes | | Dimension | 3.7 x 1.5 x 0.5" / 94.0 x 38.1 x 12.7 mm | | Weight | 8.3 oz / 235.3 g |
