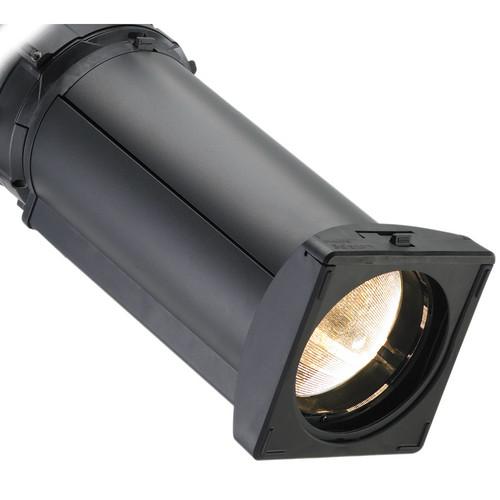

User Manual for Strand Lighting 15-35° Zoomspot Lens Tube for SPX Ellipsoidal Click to enlarge the picture
Contents of the user manual for the Strand Lighting 15-35° Zoomspot Lens Tube
- Product category: Projection Lenses Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Projection Lenses
|
User manual for the Strand Lighting 15-35° Zoomspot Lens Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|
Product description One of the great features of the Strand SPX Ellipsoidal series is the interchangeability of fixed beam and zoom lens tubes to the body of the fixture as needed for specific venues and changing productions. This Strand 15-35° Zoomspot Lens Tube for SPX Ellipsoidal by Philips Selecon is a great way to span distances from 15 - 60' with beam angles that can easily render a tight spot or wide wash. Outfitted with this lens the SPX can output a beam diameter of 5.3 - 28.4'. Please click on the link below for specs on the included accessory: Color Frame - All lens tubes are interchangeable and can be ordered separately.
- Ease of maintenance - full access to all lens surfaces for cleaning.
In the Box Strand Lighting 15-35° Zoomspot Lens Tube for SPX Ellipsoidal 6.25 x 6.25" Color Frame for SPX frfzxucfbsrrbfxxbsuzzacqrdsefvwf 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting 15-35° Zoomspot Lens Tube for SPX Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting SPX1535LT Specs | Lens | Borosilicate glass | | Beam Angle | 15-35° | | Throw Distance | 15 - 60' (4.6 - 18.3 m) | | Photometrics | 15 Degrees
889 peak / 628 flat fc at 20' (6.0 m) with 5.3' (1.6 m) beam diameter
395 peak / 279 flat fc at 30' (9.1 m) with 7.9' (2.4 m) beam diameter
176 peak / 124 flat fc at 45' (13.7 m) with 11.8' (3.6 m) beam diameter
99 peak / 70 flat fc at 60' (18.3 m) with 15.8' (4.8 m) beam diameter
35 Degrees
511 peak / 361 flat fc at 15' (4.6 m) with 9.5' (3.0 m) beam diameter
184 peak / 130 flat fc at 25' (7.6 m) with 15.8' (4.8 m) beam diameter
94 peak / 66 flat fc at 35' (10.7 m) with 22.1' (6.7 m) beam diameter
57 peak / 40 flat fc at 45' (13.7 m) with 28.4' (8.6 m) beam diameter | | Dimensions | Length: 14.6" (37 cm) | | Weight | Not specified by manufacturer |
