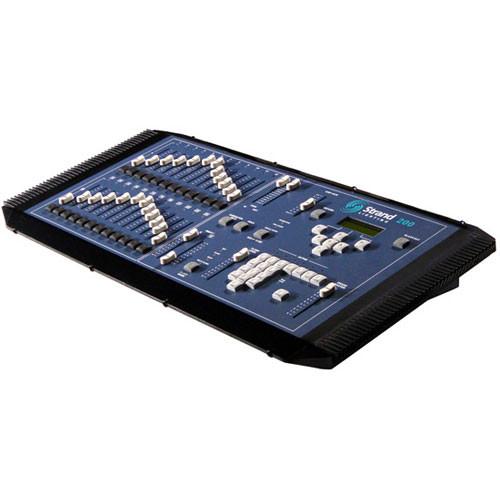

Product description What You Need to Know When Working with DMX Read More The Strand 200 Plus 12/24 Channel Lighting Control Console is fully digital. It enables two scene control over 12 channels, or one scene control over 24 channels of your lighting design. LED indicators are on all controls. This step-up from the 100 series allows up to 24 effects each with 99 steps, a split cross fader with time fade function, and bump buttons on all channels. This UL, CE and cUL rated model has a rotary timed fader that can be set from one second to 15 minutes in Preset mode, and from 0.1 to 5 seconds in Effect mode.This model (64314) is listed by Strand as including a multi-voltage 120-240VAC power supply. - Special Effects
- · Up to 24 special effects in 4 pages of 6 with 99 steps each
· Effect type may be Chase, Build, Cycle, Random, Audio Input
· Up to 6 effects can be active simultaneously. The start, stop, fade time, and running speed
(step time) of each effect can be controlled individually.
· The fade in and fade out time of each effect is set by the FX fade time potentiometer and adjustable from instant (0) to 2 minutes.
· Individual steps and their contents may be inserted or deleted. - Submasters
- 24 submaster scenes arranged on two pages of 12
- Design on the Fly
- Edit Scenes and Effects either Live or in a Blind mode.
- Blackout Control
- When the blackout button is pressed all channels are set to zero. Pressing the blackout button again will reset the channels to their previous levels.
- Master Sliders
- A dipless cross-fade is performed by moving both sliders in tandem. If the masters are set at opposite ends of their scales, the console will either mix both presets (both at 10) or blackout (both at 0).
- Channel Sliders
- Two sliders for each channel, are mounted one above the other in Preset mode. In Single scene mode all faders will operate as a single 24 channel scene with a hold function to create two scene operation.
- Bump Buttons and Bump Master
- One button is located below each of the channel faders on both banks.
- MIDI Compatible
- Effects may be controlled by Audio (sound-to-light) or a MIDI compatible control device.
- Safe Memory
- Maintains its memory for one month without power (by internal rechargeable batteries). It distinguishes between being turned off and loss of power. If switched off a series of diagnostic tests will be run before the desk is operational. Your program may also be stored on a compact flash memory card (available separately).
Note:This is a dimmer control board only. Dimmer pack(s) must be ordered separately. In the Box Strand Lighting 200 Plus 12/24 Channel Console (120-240V) 18VDC Power Supply Integral DMX 512 5- pin Socket Integral MIDI in/out/thru 5-pin DIN Socket Limited 1-Year Warranty Note: DMX cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting 200 Plus 12 24 Channel Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting 64331 Specs | Rating | 18VDC power supply from 120-240VAC 50/60Hz mains | | Dimensions | 19 x 12.2 x 2" (48 x 31 x 5cm) (WxDxH) | | Weight | 15 lbs (7kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 33.0 x 19.0 x 8.5" |
