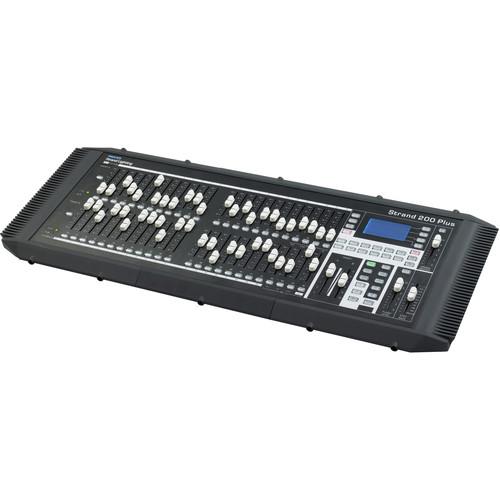

User Manual for Strand Lighting 200 Plus Series 24 48 Portable Console with Power Supply Click to enlarge the picture
Contents of the user manual for the Strand Lighting 200 Plus Series 24
- Product category: Lighting Consoles & Controllers Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Lighting Consoles & Controllers
|
User manual for the Strand Lighting 200 Plus Series 24 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More xsxewvqdazbdyvfa The Strand 200 Plus Series 24/48 Portable Console with Power Supply by Philips is one of the latest in a long line of enhanced manual lighting desks from Philips Strand Lighting. The consoles feature Ethernet and DMX ports as well as a video display port for users needing more information than is provided by the on panel LCD display. The 200 plus series consoles are ideal for any application that needs manual and memory control. The 200 Plus 24/48 offers 48 submasters plus conventional preset operation. Choose either submaster, two scene or expanded single scene operation on the fly to meet the needs of your production. It has a full suite of controls for multi-color LED luminaires, too, as well as the capability of running up to 24 moving lights, allowing you complete control of both conventional dimmers and a host of sophisticated next generation luminaires. The console also features FX effects playbacks with each effect having up to 48 steps. Effects are easy to access, record and change dynamically. All show information can be saved to an optional USB memory device to give you a secure back up of your show. Strand has introduced a new DMX512 capture function allowing you to capture up to 512 channels of DMX512 and play them back. There are 12 memories available. Simple to use and set up with a wide range of features, the 200 Plus 24/48 consoles are an ideal choice for facilities that need a compact and effective lighting controller. - Six available operation modes: Single Scene, Two Scene, Submaster, Moving Light, LED and FX Playback
- 24 Pages of submasters. Each submaster page has 48 submasters for a total of 1152
- 12 FX stacks, each with 96 steps for a total of 1,152 recordable stacks. Stacks can be previewed on system faders
- 24 Moving lights and 24 LED lights
- Show console contents files saved on optional USB drive
- Two trigger buttons for external DMX512 devices
- You can record a full 512 channels into the DMX512 base memory
- 1024 total DMX512 Outputs
- DMX512 input recorder with 12 memories
- Integrated video display port
- Supplied with 90-240VAC CE, ETL/UL, cUL universal power supply
In the Box Strand Lighting 200 Plus Series 24/48 Portable Console with Power Supply Dust Cover Integrated Video (VDU) Universal Voltage Power Supply Printed Installation Guide 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting 200 Plus Series 24 48 Portable Console with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting 64341 Specs | Construction | Rigid folded sheet steel and flame retardant ABS controls | | Operating Conditions | Ambient temperature: 32 to 104°F (0 to 40°C)
Storage temperature: 32 to 95°F (0 to 35°C)
Humidity: 0 - 95% non-condensing | | Power Requirements | 90-240VAC | | Connectivity | Ethernet (RJ45) port x1, ArtNet compatible
USB port (library storage - USB key sold separately) x1
VGA monitor output (monitor not included) x1
DMX512 In (XLR5M) port x1
DMX512 Out (XLR5F) port x2 | | Approvals | CE marked with UL listed and cUL power supply | | Dimensions | 31.7 x 12.6 x 3.1" (804 x 319 x 79.4 mm) | | Weight | 21 lb (9.5 kg) | | | | Package Weight | 23.35 lb | | Box Dimensions (LxWxH) | 34.0 x 19.0 x 8.0" |
