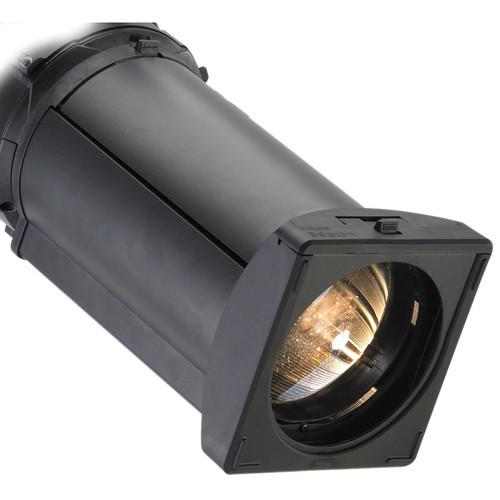

User Manual for Strand Lighting 25-50° Zoomspot Lens Tube for SPX Ellipsoidal Click to enlarge the picture
Contents of the user manual for the Strand Lighting 25-50° Zoomspot Lens Tube
- Product category: Projection Lenses Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Projection Lenses
|
User manual for the Strand Lighting 25-50° Zoomspot Lens Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|
Product description One of the great features of the Strand SPX Ellipsoidal series is the interchangeability of fixed beam and zoom lens tubes to the body of the fixture as needed for specific venues and changing productions. This Strand 25-50° Zoomspot Lens Tube for SPX Ellipsoidal by Philips Selecon is a great way to span distances from 10 - 45' with beam angles that can render a medium spot (or a tight one with an optional iris) or very wide wash. Outfitted with this lens the SPX can output a beam diameter of 4.4 - 32.6'. Please click on the link below for specs on the included accessory: Color Frame - All lens tubes are interchangeable and can be ordered separately.
- Ease of maintenance - full access to all lens surfaces for cleaning.
In the Box Strand Lighting 25-50° Zoomspot Lens Tube for SPX Ellipsoidal 6.25 x 6.25" Color Frame for SPX cfqbrqrxuxwq 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting 25-50° Zoomspot Lens Tube for SPX Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting SPX2550LT Specs | Lens | Borosilicate glass | | Beam Angle | 25-50° | | Throw Distance | 10 - 35' (4.6 - 18.3 m) | | Photometrics | At 25°
1,623 peak / 1,148 flat fc at 10' (3.0 m) with 4.4' (1.34 m) beam diameter
406 peak / 287 flat fc at 20' (6.0 m) with 8.9' (2.7 m) beam diameter
180 peak / 128 flat fc at 30' (9.1 m) with 13.3' (4.0 m) beam diameter
80 peak / 57 flat fc at 45' (13.7 m) with 20' (6.0 m) beam diameter
At 50°
498 peak / 301 flat fc at 10' (3.0 m) with 9.3' (2.8 m) beam diameter
122 peak / 75 flat fc at 20' (6.0 m) with 18.7' (5.7 m) beam diameter
54 peak / 33 flat fc at 30' (9.1 m) with 28' (8.5 m) beam diameter
40 peak / 25 flat fc at 35' (10.7 m) with 32.6' (9.9 m) beam diameter | | Dimensions | Length: 11" (28 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 15.6 x 9.2 x 9.1" |
