User Manual for Strand Lighting Acclaim Axial MKII Zoomspot 24-44 Click to enlarge the picture
Contents of the user manual for the Strand Lighting Acclaim Axial MKII Zoomspot
- Product category: Stage & Studio Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Stage & Studio
|
User manual for the Strand Lighting Acclaim Axial MKII Zoomspot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|

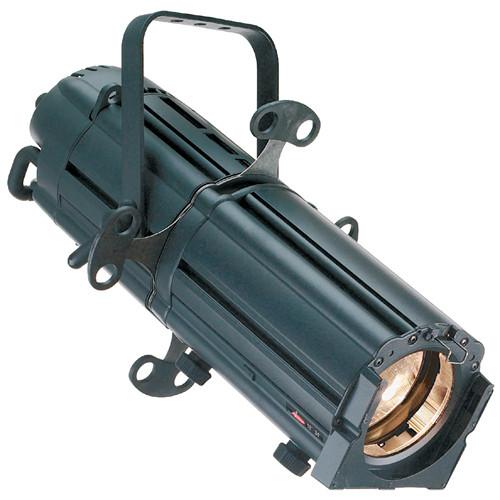

Product description The Strand Lighting Acclaim Axial MKII Zoomspot 24-44° (115-240VAC) by Philips Selecon is a 575-600W compact cool-beam ellipsoidal fixture with precise beam control suitable for front stage lighting from auditorium positions or for gobo projection. It features simple-to-use lamp alignment, an automatic power disconnect (for safety) when the lamp module is removed, and a slot for an iris or a rotating gobo holder. Hot mirror technology reduces the heat in the beam to protect gobos and color filters. With a useful throw distance of 7.0 - 56' (2.1 - 17 m) and precise optics for excellent pattern projection, the Acclaim Axial Zoomspot gives you a versatile ellipsoidal with great performance for small to mid-range stages and studios. For full specs on the accessory included with this product please click on the link below: C-clamp - Simple-to-use lamp alignment maximizes light output and beam quality.
- Interchangeable lens tray between Medium and Wide versions, no tools required.
- Hot mirror technology reduces the heat in the beam to protect gobos and color filter.
- Slot provided for iris or rotatable (35°) pattern holder.
- Adjustable beam Peak-Flat setting using central planetary gear.
- Automatic disconnection of power on removal of lamp module.
- Slot provided for iris or rotatable (35°) gobo holder.
- Cranked yoke with adjustable balance point.
- "Swing-down" doors for easy access to lens cleaning.
- Heat is managed out of the fixture through a combination of controlled infrared reflections, heat sinks, in-beam filter and engineered air flow. Heat sensitive components such as the lamp socket and cabling are protected minimizing maintenance costs.
- Constructed of pressure die-castings and aluminum extrusion.
- Fully compliant to CE standards.
In the Box Strand Lighting Acclaim Axial MKII Zoomspot 24-44 (115-240VAC) Color Frame 4 x Shutter Safety Cable US Theatrical C-Clamp Instruction Sheet 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting Acclaim Axial MKII Zoomspot 24-44 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting Acclaim Axial MKII Specs | Beam Angle | 24 to 44° | | Compatible Gobos | Size M | | Lamps | 575W GLC: 15,000 lumens, 400hrs average life
575W GLA: 13,500 lumens, 1500hrs average life
600W GKV: 15,000 lumens, 400hrs average life
600W GLB: 13,000 lumens, 1500hrs average life | | Photometrics | With 115V GLC lamp
At 24°
1,994 peak / 897 flat fc at 7.0' (2.1 m) with 3.0' (0.91 m) beam diameter
578 peak / 260 flat fc at 13' (4.0 m) with 5.5' (1.67 m) beam diameter
222 peak / 100 flat fc at 21' (6.4 m) with 8.9' (2.7 m) beam diameter
125 peak / 56 flat fc at 28' (8.5 m) with 11.9' (3.6 m) beam diameter
80 peak / 36 flat fc at 35' (10.6 m) with 14.9' (4.5 m) beam diameter
55 peak / 25 flat fc at 42' (12.8 m) with 17.9' (5.5 m) beam diameter
41 peak / 18 flat fc at 49' (15 m) with 20.8' (6.3 m) beam diameter
31 peak / 14 flat fc at 56' (17 m) with 23.8' (7.25 m) beam diameter
At 44°
938 peak / 500 flat fc at 7.0' (2.1 m) with 5.7' (1.7 m) beam diameter
272 peak / 145 flat fc at 13' (4.0 m) with 10.5' (3.2 m) beam diameter
104 peak / 56 flat fc at 21' (6.4 m) with 17' (5.1 m) beam diameter
59 peak / 31 flat fc at 28' (8.5 m) with 22.6' (6.9 m) beam diameter
38 peak / 20 flat fc at 35' (10.6 m) with 28.3' (8.6 m) beam diameter
26 peak / 14 flat fc at 42' (12.8 m) with 33.9' (10.3 m) beam diameter
19 peak / 10 flat fc at 49' (15 m) with 39.6' (12 m) beam diameter
15 peak / 8.0 flat fc at 56' (17 m) with 45.3' (13.8 m) beam diameter | | Yoke | Cranked yoke with adjustable balance point | | Cable | 3.0' (0.91 m) | | Dimensions | 20.5 x 14.4 x 11.8" (52 x 36.6 x 30 cm)
Color frame: 4.87 x 4.87" (12.37 x 12.37 cm)
Gobo holder width: 3.75" (9.5 cm) | | Weight | 12.31 lbs (5.6 kg) |
