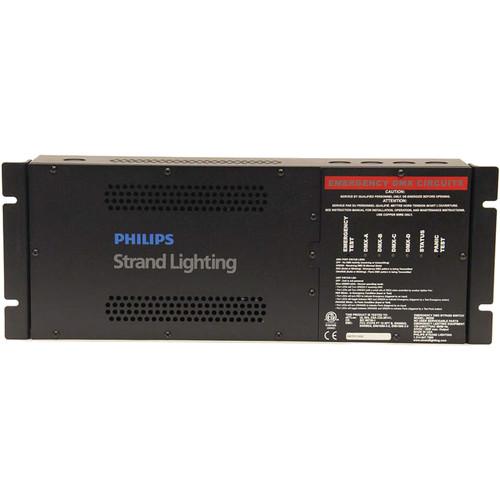

User Manual for Strand Lighting Emergency DMX Bypass Switch Click to enlarge the picture
Contents of the user manual for the Strand Lighting Emergency DMX Bypass Switch
- Product category: DMX Devices Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting DMX Devices
|
User manual for the Strand Lighting Emergency DMX Bypass Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|
Product description The Emergency DMX Bypass Switch from Strand Lighting provides a solution for emergency and panic situations at venues using DMX lighting. Using separate panic/emergency state triggers, the Bypass can control 4 DMX universes and also serve as a DMX splitter. The unit can be set to drive all loads on each DMX path to 100% and return them to the DMX controller when the situation returns to normal. Returns can also be set using Intelligent Timing which senses valid DMX inputs or manually from 1 to 10 minutes. - Benefits
-
- Accepts up to 4 DMX universes
- Emergency Input
- Panic Input
- Integrated DMX Splitter with user-selectable operational settings
- Emergency and Panic test buttons
- Durable steel construction that easily mounts near lighting control panels or inside 19" racks
- Designed and manufactured in the USA
In the Box Strand Lighting Emergency DMX Bypass Switch 2 x Rack Mounting Ears Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting Emergency DMX Bypass Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting 96250 Specs | Material of Construction | Steel | | Mounting | Surface or rack mounting | | Voltage | Input: 100-240 / 277 VAC, 50/60 Hz, 1 Phase
Output: 24 VDC, 1.75 A | | Connections | DMX Universes Input: 4
DMX Universes Output: 4
Panic Input: 1
Emergency Input: 1 | | Compliance | cETLus, CE, EMC | | Operating Conditions | Temperature: 32 to 77°F (0 to 25°C)
Humidity: 5 to 95% non-condensing | | Dimensions | Without Ears (H x W): 7.0 x 17" / 17.8 x 43.2 cm
With Ears (H x W): 7.0 x 19" / 17.8 x 48.2 cm | | Weight | 9.7 lb / 4.4 kg |
