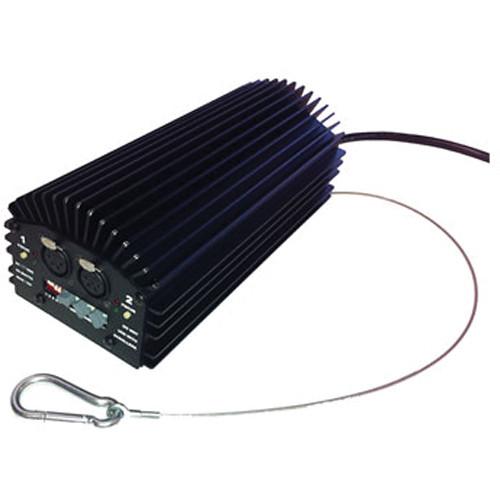

User Manual for Strand Lighting LightPack Portable LED Luminaire Controller Click to enlarge the picture
Contents of the user manual for the Strand Lighting LightPack Portable LED Luminaire
- Product category: Dimmers Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Dimmers
|
User manual for the Strand Lighting LightPack Portable LED Luminaire contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|
Product description The Strand Lighting LightPack Portable LED Luminaire Controller (120 V Twistlock Connector) delivers power and control to any Philips Selecon PL Wash luminaire or Philips Color Kinetics Color Blast wash lights. Smart addressing technology simplifies set up and allows you to quickly address any luminaire regardless of its type. You can set an address, select an operating mode, and press a button to set up any connected luminaire. Each output is configured to match the luminaire regardless of the number of colors the unit supports and delivers exactly the right number of control channels needed. An intensity channel set up option is also available to make your luminaires even easier to use and program.
Ideal for a wide range of applications from special events to theatres and television studios, the
LightPack LED controller delivers power and control almost anywhere you need it. - Simple, intuitive user interface
- DMX input or local on/off/color select button
- 2 addressable outputs with tool-free set up
- Automatic identification of connected luminaire
- 8 or 16 bit operating modes allows users to choose fade resolution by luminaire
- Intensity channel selection can add an intensity channel to any luminaire
- Support for tunable white, RGB, and RGBAW luminaires
- Rugged enclosure with integrated heat sinks for silent fan-free operation
- Universal operating voltage, 100 to 240 VAC
- ETL, cETL listed and CE approved
In the Box Strand Lighting LightPack Portable LED Luminaire Controller (120 V Twistlock Connector) Wall Mount Bracket Pipe Mount Bracket Cheeseboro Clamp DMX512 Terminator 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting LightPack Portable LED Luminaire Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting 71362 Specs | | | Supply Voltage | 100 to 240 VAC (auto-ranging) | | Frequency | 50/60 Hz | | Output | 24 VDC, 55 W per connector | | Supported Devices | Luminaire Types: Philips Selecon PL Wash
Philips Color Kinetics Color Blast | | | | Temperature | 32 to 122°F (0 to 50°C) | | Humidity Range | 5 to 95% non-condensing | | Compliance | ETL, cETL listed and CE certified | | | | Connectors | Twistlock connector The input connector is rated for maximum input of 120 V. | | Controls | Focus / bump button (1 for each luminaire port) 1 x 4-position DIP switch for mode settings 3 x rotary DIP switch for DMX512 address setting | | Indicators | Red and green status indicators (1 set for each luminaire port) | | Ports | 1 x AC cable input
1 x DMX512 in
1 x DMX512 out / thru
2 x LED luminaire control (power and data) | | | | Board Dimensions (H x W x D) | 3.25 x 4.17 x 9.62" (82.6 x 105.9 x 244.4 mm) | | Weight | 4.2 lb (1.9 kg) |
