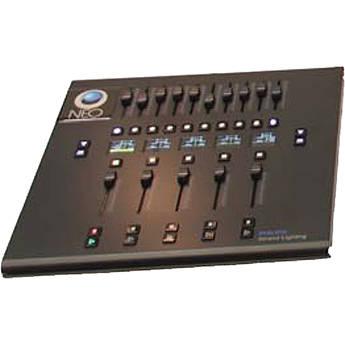

User Manual for Strand Lighting NEO Console Playback Wing Click to enlarge the picture
Contents of the user manual for the Strand Lighting NEO Console Playback Wing
- Product category: Lighting Console Accessories Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Lighting Console Accessories
|
User manual for the Strand Lighting NEO Console Playback Wing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|
Product description The NEO Console Playback Wing from Strand can be used to provide additional physical fader playback, depending upon model, to your NEO lighting control console. The interconnection between each wing and the control console is via a USB connection and can be powered either directly from a NEO console or plugged directly into a common power outlet through an optional power supply. - Playback Wing Attributes
-
- Ten motorized submasters faders with backlit bump buttons
- Five motorized playback faders with GO, stop/back backlit buttons
- Page up and down backlit buttons for independent paging
- Five color LCD displays for fader identification
- USB connectivity to a NEO Lighting Control Console
- USB communication daisy chain between each wing
- Power input and output connections on each wing (power daisy chain) – powered via the console or optional power supply (5' power cable supplied with unit for console connection)
- A maximum of three wings in total can be connected to each NEO Lighting Control Console
- Kensington lock slot at back of unit
- 1 x XLR port for a console light (sold separately)
In the Box Strand Lighting NEO Console Playback Wing Dust Cover USB Cable (5' / 1.5 m) Power Cable (5' / 1.5 m) Quick Start Guide Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting NEO Console Playback Wing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting 91005 Specs | Security | Kensington lock slot | | Connectivity | 1 x USB 2.0 Type-B, input from NEO Lighting Control Console
2 x USB 2.0 Type-A, for communication with additional optional wings
Power input, from console via included cable or from optional power supply
Power output, for additional optional wings
XLR port for optional console light | | Controls | 15 x Motorized faders (1 row of 10 & 1 row of 5)
10 x Motorized submaster faders with backlit bump buttons (top row)
5 x motorized playback faders with GO, stop/back backlit buttons (bottom row)
Page up and down backlit buttons | | Displays | 5 x color LCDs |
