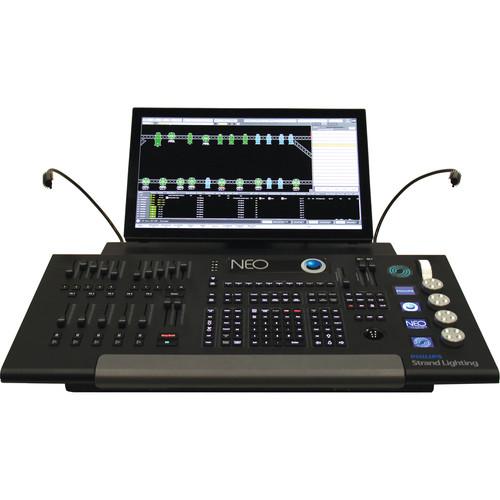

User Manual for Strand Lighting NEO Lighting Control Console Click to enlarge the picture
Contents of the user manual for the Strand Lighting NEO Lighting Control Console
- Product category: Lighting Consoles & Controllers Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Lighting Consoles & Controllers
|
User manual for the Strand Lighting NEO Lighting Control Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More yfyyrbxfaqayfttwxxbretyezasbvfdb Gain elaborate control over your lights with the NEO Lighting Control Console from Strand Lighting. It is compatible with up to 100 universes of DMX per console and has 10 motorized submasters, motorized A/B playback faders, five motorized multi-function faders, and dual motorized grand masters. Also, Icons and Shutter controls are represented graphically on the display and Floating Windows allow the operator to configure the view to their preferences. The individual keys are backlit for better viewing and a timeline feature allows drag and drop creation of a timed sequence.
The show can be secured on a "Mission Critical" SQL server and boot time is reduced by the use of solid state disk drives. Also, it has a variety of input and outputs, included USB 2.0 and USB 3.0 ports, one DMX in and four DMX out ports, MIDI and SMPTE out / in, two COM, two XLR, and HDMI, DisplayPort, and DVI outs for using a monitor. - Feature Set
-
- Up to 100 universes of DMX per console and comes with 1 universe of 512 DMX outputs
- Ten motorized submasters
- Motorized A/B playback faders
- Five motorized multi-function faders
- Dual motorized grand masters
- Individually controlled backlit keys
- Four indented push encoders
- Color LCD screens for encoder assignment
- Keyboard drawer with storage with USB
- Touchscreen capable interface
- Unlimited cues, cue Lists, groups, palettes, effects, and macros
- Tempo button
- Tracking, cue only and hybrid tracking programming
- Flexible shortcut system
- Generic palettes
- Timeline effects
- Pixel mapping
- Media playback
- Multi-user
- Tracking backup
- User security system (login)
- Timed events with sunrise/sunset
- Telnet interface
- Android / iOS remotes
- Undo history
- Visual timecode editor
- Power monitor
- Color and position paths per cue
- Blind pre-visualization
- Magic sheet layout
- Four DMX out ports, one DMX in port, and two network ports
- Three video outs (HDMI / VESA Display Port / DVI)
- MIDI out/in
- SMPTE out/in
- USB 3.0 and USB 2.0 ports
- Two COM ports
- Two XLR ports for console lights
- Tablet storage
In the Box Strand Lighting NEO Lighting Control Console - NEO Console Universe yfyyrbxfaqayfttwxxbretyezasbvfdb
- Dust Cover
- Universal Voltage Power Supply
- IEC Cables (US, Europe, Asia)
- 2 x Console Lights
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting NEO Lighting Control Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting 91001 Specs | Construction | High-density and impact-resistant aluminum and plastics | | Protocols | Shownet, E1.31 (Streaming ACN), Artnet, DMX512, KiNet (Philips Color Kinetics Control Protocol), Pathway, RDM | | Connections | 4 x 5-pin DMX out
1 x 5-pin DMX in
1 x MIDI in/out
1 x SMPTE in/out
1 x VESA DisplayPort
1 x HDMI
1 x DVI
2 x RJ45 network ports
1 x 1/8" mini audio line in/out/mic in
2 x COM ports
2 x USB 3.0 (rear panel)
7 x USB 2.0 (2 on rear panel, 4 on front, 1 in keyboard drawer)
2 x 3-pin XLR ports (12 V) for console lights (included) | | Power Requirements | 100-240 VAC | | Approvals | cETLus, CE, C-Tick | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 32 to 95°F (0 to 35°C) | | Humidity | 0-95%, non-condensing | | Dimensions | 31.0 x 5.6 x 19.5" (78.7 x 14.2 x 49.5 cm) | | Weight | 37.0 lb (16.8 kg) console only |
