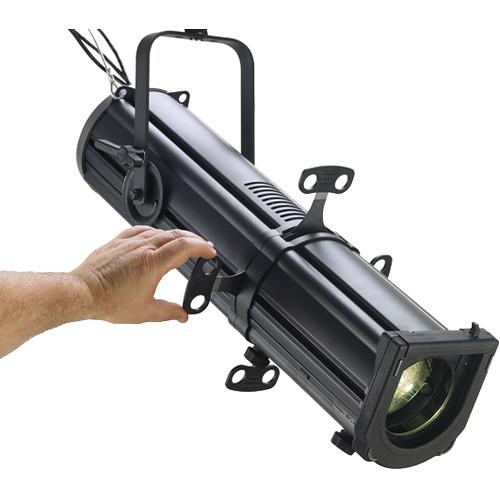

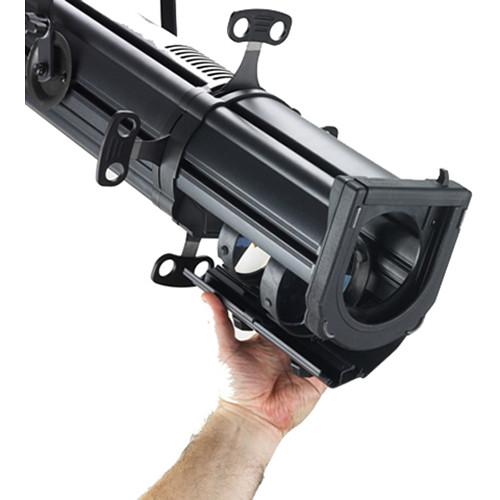

Product description The black PLFRESNEL1 MKII LED Luminaire from Strand Lighting is a general purpose lighting fixture for theatre, small studio, and display lighting applications. It produces an adjustable cone of light with a soft edge which is easily blended with adjacent beams to provide even illumination. A key benefit of the luminaire is that it is not necessary to change lamps or color filters. Combining the control and light quality of a Philips Selecon Fresnel with seamless fading between colors allows designers a new level of creativity.
The MKII Luminaire also hosts smart cable management with the inclusion of PLICB (PL Interconnect Box). The PLICB mounts to the luminaires yoke, between the C-Clamp and the yoke, and swivels independently to allow for the luminaire moving freely through its focus range with no need for a cable service loop. The PLICB allows for all of the luminaires cabling with DMX and PowerCON in and through connections. - Delivers the performance of a 500W Fresnel fixture with a maximum power consumption of 140W
- Variable beam angle from 15 to 54 degrees
- Infinite color choice from the RGBW engine and color temperatures in white
- Homogenized fully mixed color output light, no multiple color shadows
- 50,000 hours of life expectancy
- Quick selection of Warm White, Cool White, and Daylight
- User defined on-board preset states available to record your color composition
- Color presets simplify matching existing light sources
- Constant color balance down to very low light levels irrespective of intensity setting
- DMX512 input/output with 8- or 16-bit resolution and a simple 5-channel control
- Device settings can be configured remotely via RDM controls
- On-board LCD menu is updated for ease of luminaire set up
- No ultraviolet (wavelengths of less than 400nm) - for UVA, B, C, or the infrared spectrum (wavelengths of more than 775nm)
- Electronic universal power supply 100-240VAC
- PowerCON in and through connectors (PLICB)
- cETLus listed, C-Tick and CE marked (IP20 Rated)
In the Box Strand Lighting PLFRESNEL1 MKII LED Luminaire (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting PLFRESNEL1 MKII LED Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting PLFRESNEL1 MKII Specs | Source | True RGBW 120W LED Engine, using custom designed LED array | | Output | 2000 lumens (full RGBW white light) | | CRI | >80 @ 4000K white LED only | | Beam Angle | 15-54° (user adjustable) | | Operating Voltage | 100 to 240 VAC (auto-ranging) | | Frequency | 50/60 Hz | | Current Draw | 1.2 A (120 V) / 0.6 A (240 V) | | Power Consumption | Maximum: 140 W with all LEDs at full RGBW (100%)
Standby Power 5 W (unit powered, LEDs off) | | Ambient Temperature | 32 to 104°F / 0 to 40°C | | IP Rating | IP20 indoor use only | | Conformance | cETLus listed, CE and C-Tick marked | | Control | On-board menu / DMX512 / RDM DMX512 | | DMX Channels | 15 channels (16-Bit mode)
9 channels (8-Bit mode)
5 channels (5-Channel mode) | | Construction | Machined aluminum, sheet metal, plastic | | Dimensions | 17.5 x 13.5" / 44.5 x 34.2 cm, with yoke | | Weight | 11.4 lb / 5.17 kg |
