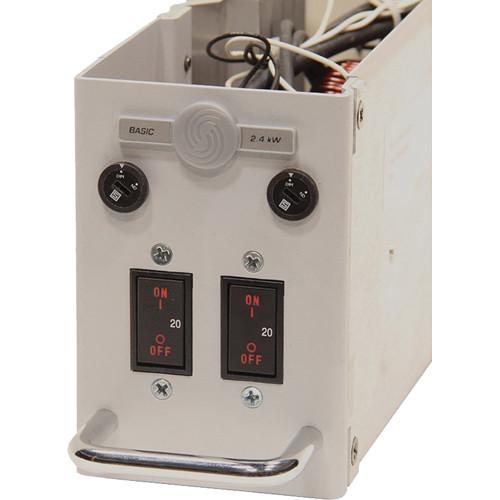

Product description The Power Through C21 2.4kW 350μs Dual SSR Dimmer/Relay Module from Strand Lighting offers a method of future-proofing your C21 dimming system with a dual 350uS (120 VAC) SCR dimmer in conjunction with a mechanical bypass relay for each dimmer. Each module has two individual recess mounted switches that allow for a manual switch between dimmer or relay, so there is never a mistake about how your system is set up. As many solid-state lighting instruments do not like power from a dimmed circuit, the manual switches on each module ensure that you have complete control of your rigs' power with-out any question of remote activation or deactivation of your Power Through Module settings.
In Dimmer (DIM) Mode, the SCR will work exactly the same way that all C21 / EC21 dimmers have worked for years. In Relay/Non-Dim (ND) Mode, the circuit will completely bypass the choke and SCR giving you clean power to your lighting devices and power supplies that require a constant power feed. - On/off relay activation through the control system
- Dim/non-dim switch on the face of each module
- Dual back-to-back SCRs for each circuit
- 350µS risetime toroidal filters
- High-density modular assembly front of module (set to DIM or ND)
- Circuit breaker design for improved trip indication and smooth faceplate, eliminating breaker damage in touring applications
In the Box Strand Lighting Power Through C21 2.4kW 350μs Dual SSR Dimmer/Relay Module Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting Power Through C21 2.4kW 350μs Dual SSR Dimmer Relay Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting 76562PT Specs | Construction | Heavy-duty formed aluminum | | Power Requirements | 120 VAC | | Compliance | UL/cUL recognized and CTL/cETL listed |
