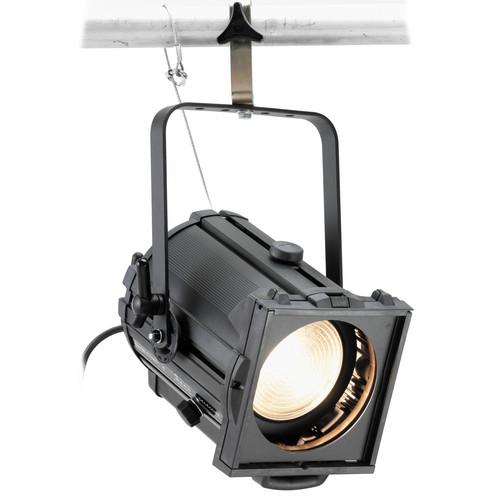

User Manual for Strand Lighting Rama 6" Fresnel Head Click to enlarge the picture
Contents of the user manual for the Strand Lighting Rama 6" Fresnel Head
- Product category: Stage & Studio Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Stage & Studio
|
User manual for the Strand Lighting Rama 6" Fresnel Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|
Product description The Strand Lighting Rama 6" Fresnel Head (P28) (120VAC) is a lens luminaire with a 6" (150 mm) lens, beam angles from 7 to 50°, and useful throw distances of 13-59' (4-18 m). The Rama 6" Fresnel produces an adjustable cone of light with a soft edge for strong key lights, saturated color washes, or for blending with adjacent beams for even illumination. Constructed from aluminum extrusions and moulded engineering plastics (for a cooler luminaire), the Rama Fresnel features a smooth "Posi-glide" focus system, an adjustable yoke balance point and an integrated safety cable for safer, easier operation. A swing-down door for easy lamp access (mains power automatically disconnects when the door is opened), tilt/focus information in degrees, and a heat-insulated rear grab handle add to Rama's improved design. This Rama Fresnel is fitted with a P28 lamp socket and is supplied for use with 120VAC. A lamp is not included. - Wide range of beam angles from 7 to 50°
- High quality industry standard 150mm (6") lens.
- Flat, even beam with very little spill allows clean masking cut with barndoor flaps
- Operator focus friendly with cooler filter frame access, large rear grip handle
- Integrated safety bond, rated for the fitting; maximum free length = 26.37" (670mm)
- Posi-slide focus action, fast, direct, dampened to reduce potential damage to the lamp
- Yoke balance point can be positioned along the length of the luminaire
- Constructed of aluminum extrusion and moulded engineering plastics
- Heat-insulated rear grab handle doubles as handy storage for the fixture line cord
- Pan, tilt and focus scales are in degrees, allowing for accurate WSIYWYG implementation
- Swing down door for easy lamp access. An integral micro-switch provides automatic disconnection of power to the fixture when open, preventing a student or technician from inserting a lamp into an electrically live fixture
In the Box Strand Lighting Rama 6" Fresnel Head (P28) (120VAC) Color Frame C Clamp Cable (3') Integral Safety Cable Manual 3-Year Limited Warranty Note: Lamp Not Included Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting Rama 6" Fresnel Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting Rama Specs | Socket (Lampholder) | G22 | | Lens (Condenser) | 6" (150 mm) | | Beam Angle | 7 to 50° | | Cable | Integral 3' | | Focusing | Sliding focus mechanism with fixing knob | | Weight | 12.31 lb (5.58 kg) | | Dimensions | 11.25 x 17.5 x 14.56" (28.57 x 44.45 x 36.98 cm) | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 17.7 x 12.9 x 10.9" |
