User Manual for Strand Lighting S21 6-Dimmer Strip with GR Edison, NEMA 5-20R Connector Click to enlarge the picture
Contents of the user manual for the Strand Lighting S21 6-Dimmer Strip with
- Product category: Dimmers Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Dimmers
|
User manual for the Strand Lighting S21 6-Dimmer Strip with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|

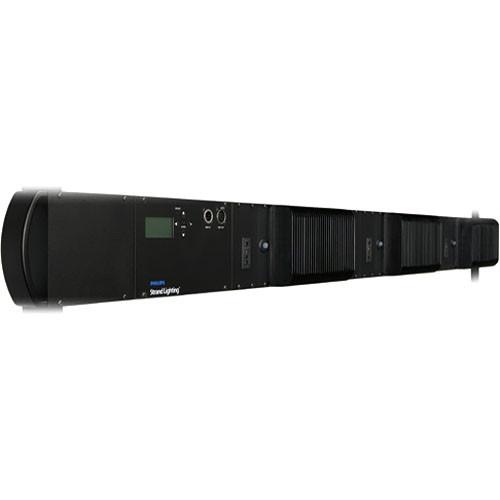

Product description This S21 6-Dimmer Strip with GR Edison, NEMA 5-20R Connector from Strand Lighting features 3 dual dimmers, GR Edison, NEMA 5-20R Connectors, DMX capability, and LCD menu operation. It is meant for theatrical lighting fixtures and special effects equipment. It may be pipe or wall mounted using optional accessory brackets. - Each S21 IGBT dual module contains two dimmers and is fully rated at 2.4kW per module. The 2.4kW rating of the module may be split evenly across both dimmers at 1.2kW, used on a single dimmer at 2.4kW, or any combination of loads on either dimmer that does not exceed 2.4kW per module.
- S21 dimmers are designed to operate a wide variety of lighting loads of up to their rated capacity. The range of load types which may be connected includes incandescent lamps, and a number of "well-behaved" inductive loads such as low-voltage (step-down transformer) fixtures, fluorescent lamps, and most types of small motors used in special effects equipment such as wind or fog machines.
In the Box Strand Lighting S21 6-Dimmer Strip with GR Edison, NEMA 5-20R Connector Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting S21 6-Dimmer Strip with GR Edison, NEMA 5-20R Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting 71502 Specs | Dimmer | 3 x Dual dimmer modules | | Output Voltage | 100 V / 110 V / 115 V / 120 V (user selectable) | | Power | Minimum load: 1 W
Maximum load / dimmer: 2.4 kW per dimmer module (max.)
Dimming phase: forward or reverse (user selectable or automatic)
Transition (rise) time: up to 1000 μs (automatic adjustable)
Insert loss: max 2.5 V
Power feed: 3-phase, 4-wire 120 / 208 V, 20 A; terminal block or optional input power cables available | | Connectors | Load connector types:
GR - Edison NEMA 5 - 20R | | Frequency | 50 / 60 Hz | | Operating Conditions | Ambient temperature: 32 - 104°F (0 to 40°C)
Humidity: 5 - 95% non-condensing | | Cooling | Natural convection | | Dimensions | 6 x 4 x 72" / 15.2 x 10.2 x 182.9 cm | | Weight | 38.5 lb / 17.5 kg | | Compliance | ETL listed |
