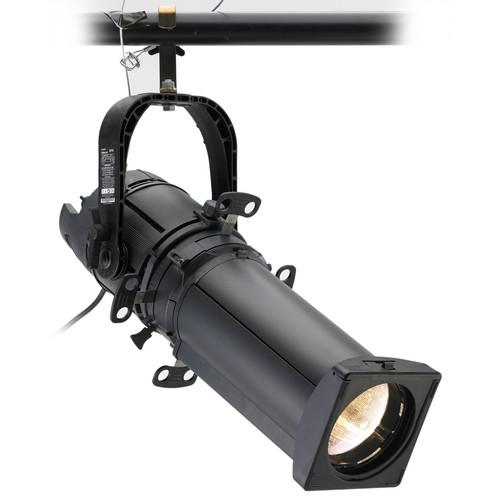

Product description The Strand SPX 15 to 35° Ellipsoidal Zoomspot (115-240VAC) by Philips Selecon joins the efficiency of ERS technology with the latest developments in compact filament lamps to produce a high-performance fixture with precise beam control. The 15-35° variable beam gives you flexibility plus the ability to define the required beam angle to avoid wasted light in shutter cuts. Control and shaping of the beam using shutter masks makes this light an excellent image pattern projector. Its useful throw distances of 15 to 60' make the SPX a versatile lighting tool for multi-purpose venues and repertory theaters. Convenience features include cool-touch lens barrel, rear handle and yoke and a safety micro-switch for relamping. Bulb and electrical plug are not included. Please click on link below for complete specs on the lens tube included with this item: 15-35° Lens Tube
Color Frame
C-Clamp - Up to 27% more efficient than current industry benchmark units.
- All lens tubes interchangeable and can be ordered separately.
- Designed to manage the power and heat from high output tungsten halogen 750W sources.
- More light and high contrast pattern projections - fully adjustable beam distribution from peak (3:1) to flat (2:1) using intuitive adjustment solution.
- Precise positioning with rigid molded yoke, shutter clamp lock, and reference scales on tilt, lens and lens tube angle settings.
- Compartmental heat management system exhausts the heat away from the critical lamp socket and cabling to minimize heat damage.
- Minimal light spill with enclosed front color frame / accessory holder.
- Dual accessory slots for simultaneous use of B size gate patterns, rotators and irises.
- Mains isolation via micro-switch for maximum safety while re-lamping.
- Ease of maintenance - full access to all lens surfaces for cleaning.
In the Box Strand Lighting SPX 15 - 35° Ellipsoidal Zoomspot (115-240VAC) 6.25 x 6.25" Color Frame for SPX 15-35° Zoomspot Lens Tube for SPX Ellipsoidal Fitted Safety Chain US Theatrical C-Clamp Instructions 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting SPX 15 - 35° Ellipsoidal Zoomspot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting SPX Ellipsoidal Specs | Rating | 750W | | Socket (Lampholder) | G9.5 | | Lamps | 115V
575W GLC, 400 hours average life
575W GLA, 1500 hours average life
750W GLD, 300 hours average life
750W GLE, 1,500 hours average life | | Reflector (Mirror) | Anodized aluminum | | Lens | Borosilicate glass mounted | | Yoke | Cool-touch yoke of formed aluminum | | Focusing | Thumb screw adjustment | | Photometrics | 15 Degrees
889 peak / 628 flat fc at 20' (6.0 m) with 5.3' (1.6 m) beam diameter
395 peak / 279 flat fc at 30' (9.1 m) with 7.9' (2.4 m) beam diameter
176 peak / 124 flat fc at 45' (13.7 m) with 11.8' (3.6 m) beam diameter
99 peak / 70 flat fc at 60' (18.3 m) with 15.8' (4.8 m) beam diameter
35 Degrees
511 peak / 361 flat fc at 15' (4.6 m) with 9.5' (3.0 m) beam diameter
184 peak / 130 flat fc at 25' (7.6 m) with 15.8' (4.8 m) beam diameter
94 peak / 66 flat fc at 35' (10.7 m) with 22.1' (6.7 m) beam diameter
57 peak / 40 flat fc at 45' (13.7 m) with 28.4' (8.6 m) beam diameter | | Cable | 3.0' (1.0 m) | | Power Requirements | 115-240VAC | | Approvals | ETL / cETL listed to UL 1573 | | Dimensions | Overall: 26.4 x 16 x 13" (67 x 40.6 x 33 cm)
Color frame: 6.25 x 6.25" (15.9 x 15.9 cm) | | Weight | 18.25 lb (8.27 kg) |
