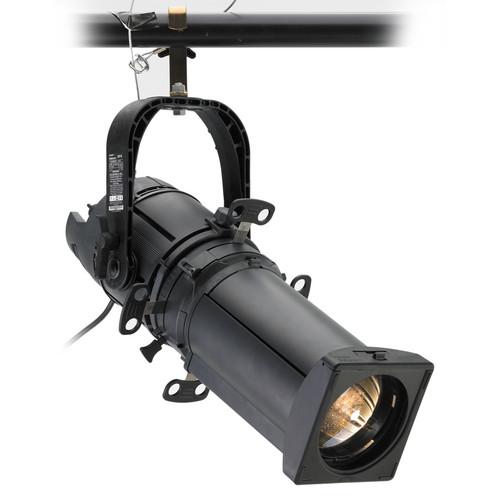

User Manual for Strand Lighting SPX 25 - 50° Ellipsoidal Zoomspot Click to enlarge the picture
Contents of the user manual for the Strand Lighting SPX 25 - 50°
- Product category: Stage & Studio Strand Lighting
- Brand: Strand Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Strand Lighting Stage & Studio
|
User manual for the Strand Lighting SPX 25 - 50° contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Strand Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Strand Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Strand Lighting product will considerably shorten its lifespan!
|
Product description The Strand SPX 25 - 50° Ellipsoidal Zoomspot (115-240VAC) by Philips Selecon joins the efficiency of ERS technology with the latest developments in compact filament lamps to produce a high-performance fixture with precise beam control. The 25 - 50° beam is capable of covering large areas of the stage or background at short throw distances. Control and shaping of the beam using shutter masks makes this light an excellent image pattern projector. Its useful throw distances of 10 - 45' make the SPX a versatile lighting tool for multi-purpose venues and repertory theaters. Convenience features include cool-touch lens barrel, rear handle and yoke and a safety micro-switch for relamping. Bulb and electrical plug are not included. For complete specs on select items included in this kit please click on the links below: Color Frame
C-Clamp
25 - 50 Degree Lens Tube - Up to 27% more efficient than current industry benchmark units.
- All lens tubes interchangeable and can be ordered separately.
- Designed to manage the power and heat from high output tungsten halogen 750W 115V (800W 230-240V) sources.
- More light and high contrast pattern projections - fully adjustable beam distribution from peak (3:1) to flat (2:1) using intuitive adjustment solution.
- Precise positioning with rigid molded yoke, shutter clamp lock, and reference scales on tilt, lens and lens tube angle settings.
- Compartmental heat management system exhausts the heat away from the critical lamp socket and cabling to minimize heat damage.
- Minimal light spill with enclosed front color frame / accessory holder
- Dual accessory slots for simultaneous use of B size gate patterns, rotators and irises.
- Mains isolation via micro-switch for maximum safety while re-lamping.
- Ease of maintenance - full access to all lens surfaces for cleaning.
In the Box Strand Lighting SPX 25 - 50° Ellipsoidal Zoomspot (115-240VAC) 6.25 x 6.25" Color Frame for SPX Fitted Safety Chain US Theatrical C-Clamp 25-50° Zoomspot Lens Tube for SPX Ellipsoidal Instructions 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Strand Lighting SPX 25 - 50° Ellipsoidal Zoomspot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStrand Lighting SPX Ellipsoidal Specs | Rating | 800W | | Socket (Lampholder) | G9.5 | | Lamps | 115V
575W GLC, 400 hours average life
575W GLA, 1500 hours average life
750W GLD, 300 hours average life
750W GLE, 1,500 hours average life
750W Philips 6981P, 300 hours average life
575W (GLC) Philips 6989P, 400 hours average life
575W (GLA) Philips 6992P, 1,500 hours average life
375W (GLG) Osram HP, 300 hours average life
240V
800W (GKV) Philips 6982P, 200 hours average life
600W (GKV) Philips 6986P, 300 hours average life
600W (GLB) Philips 6991P, 1,500 hours average life
230V
800W (GKV) Philips 6982P, 200 hours average life
600W (GKV) Philips 6986P, 300 hours average life
600W (GLB) Philips 6991P, 1,500 hours average life | | Reflector (Mirror) | Anodized aluminum | | Lens | Borosilicate glass mounted | | Yoke | Cool-touch yoke of formed aluminum | | Focusing | Thumb screw adjustment | | Beam Angle | 25 - 50° | | Throw Distance | 10 - 45' (3.0 - 13.7 m) | | Photometrics | At 25°
1,623 peak / 1,148 flat fc at 10' (3.0 m) with 4.4' (1.34 m) beam diameter
406 peak / 287 flat fc at 20' (6.0 m) with 8.9' (2.7 m) beam diameter
180 peak / 128 flat fc at 30' (9.1 m) with 13.3' (4.0 m) beam diameter
80 peak / 57 flat fc at 45' (13.7 m) with 20' (6.0 m) beam diameter
At 50°
498 peak / 301 flat fc at 10' (3.0 m) with 9.3' (2.8 m) beam diameter
122 peak / 75 flat fc at 20' (6.0 m) with 18.7' (5.7 m) beam diameter
54 peak / 33 flat fc at 30' (9.1 m) with 28' (8.5 m) beam diameter
40 peak / 25 flat fc at 35' (10.7 m) with 32.6' (9.9 m) beam diameter | | Cable | 3.0' (1.0 m) | | Approvals | ETL / cETL listed to UL 1573 | | Dimensions | Overall: 22.8 x 16 x 13" (57.9 x 40.6 x 33 cm)
Color frame: 6.25 x 6.25" (15.9 x 15.9 cm) | | Weight | 18.25 lb (8.27 kg) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 31.0 x 13.0 x 13.0" |
