User Manual for Streamlight 3AA ProPolymer Haz-Lo Flashlight Click to enlarge the picture
Contents of the user manual for the Streamlight 3AA ProPolymer Haz-Lo Flashlight
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
 |
User manual for the Streamlight 3AA ProPolymer Haz-Lo Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

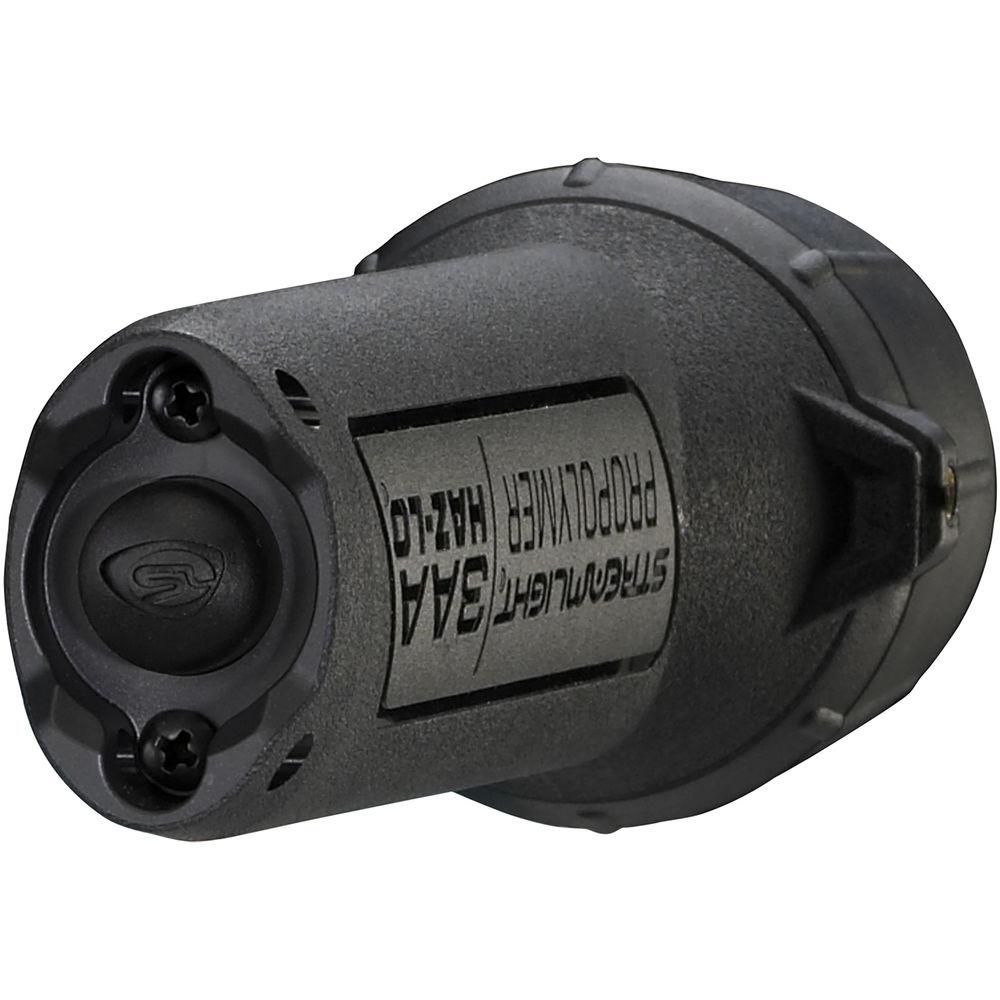

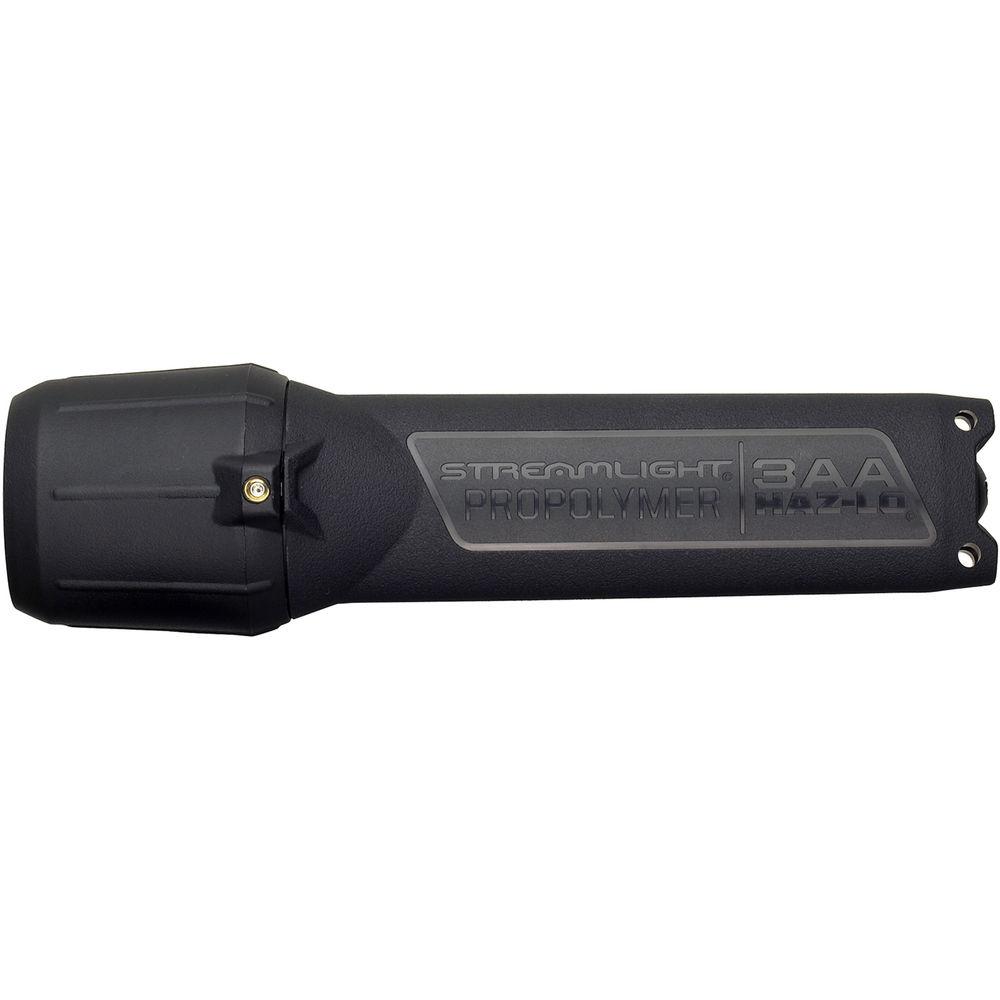

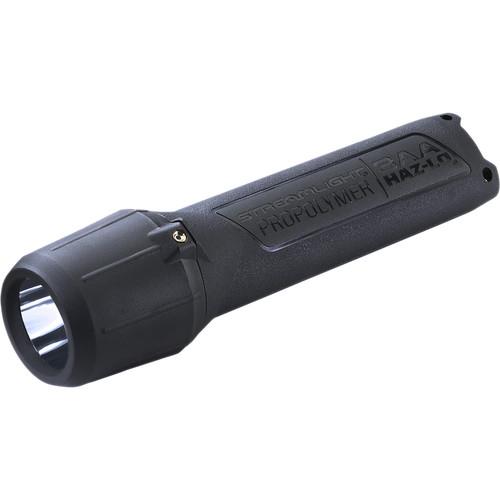

Product description UL-rated intrinsically safe, the 3AA ProPolymer Haz-Lo Flashlight is durable, easy to operate and maintain, and able to withstand adverse conditions. Its C4 LED delivers 120 lumens of white light, controlled on a momentary- or constant-on basis by a tailcap push-button switch, and it runs on two widely available AA alkaline batteries. The light's O-ring sealed and vented, anti-static engineered resin housing and polycarbonate lens are rated IP67 water resistant, capable of withstanding submersion in shallow water for 30 minutes with no damage, and impact resistant to 3.3'. An integrated face cap lock and sealed tailcap switch provide further security in explosive environments, and visual and mechanical safeguards prevent incorrect battery installation. The light is powered by three included AA batteries. This item comes in clamshell packaging. - Light Performance
-
- 120 lumens output
- Runtime: 6.5 hours to 10% of initial lumen output
- C4 LED
- Smooth parabolic reflector
- Switching
-
- Location: tailcap
- Type: push button
- Momentary- and constant-on activation
- Construction Details
-
- Anti-static, non-conductive, corrosion-resistant engineered resin housing
- Polycarbonate lens with face cap lock for extra security
- IP67-rated water resistant, submersible to 3.3' for 30 minutes
- Impact resistant to 9.8'
- Runs on three AA batteries (included)
- Measures 7.0 x 1.5 x 1.1", head diameter 1.9"
- Safety Approvals
-
- UL Classified Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III; Exia; T-Class: T4
- MSHA Permissible Flashlight. Approval No. 20-A140003-0. Tested for Intrinsic Safety in methane-air mixtures only
- DEMKO 13 ATEX 1214468X; II 1G Ex ia IIC T4 Ga; II 1D Ex ia IIIC To 118°C Da IECEx UL 14.0032X; Ex ia IIC T4 Ga; Ex ia IIIC To118°C Da
- INMETRODNV 15.0169XEx ia IIC T4 Ga; Ex ia IIIC To118°C Da
- Meets applicable European Community Directives
UPC: 080926687219 In the Box Streamlight 3AA ProPolymer Haz-Lo Flashlight (Black, Clamshell Packaging) 3 x AA Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight 3AA ProPolymer Haz-Lo Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight 3AA ProPolymer Haz-Lo Specs | | | Lumen Output | 120 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | Low: 6.5 Hours | | Battery Type | 3 x AA | | | | Lens Material | Polycarbonate | | Material of Construction | Plastic | | Water Resistance | Waterproof to 3.3' / 1 m, IP67 | | Impact Resistance | Yes, 9.8' / 3.0 m | | Bezel Diameter | 1.9" / 48.3 mm | | Dimensions | H: 1.5 x W: 1.1 x L: 7.0" / H: 3.8 x W: 2.8 x L: 17.8 cm | | Weight | 7.5 oz / 213 g (With Batteries) |
