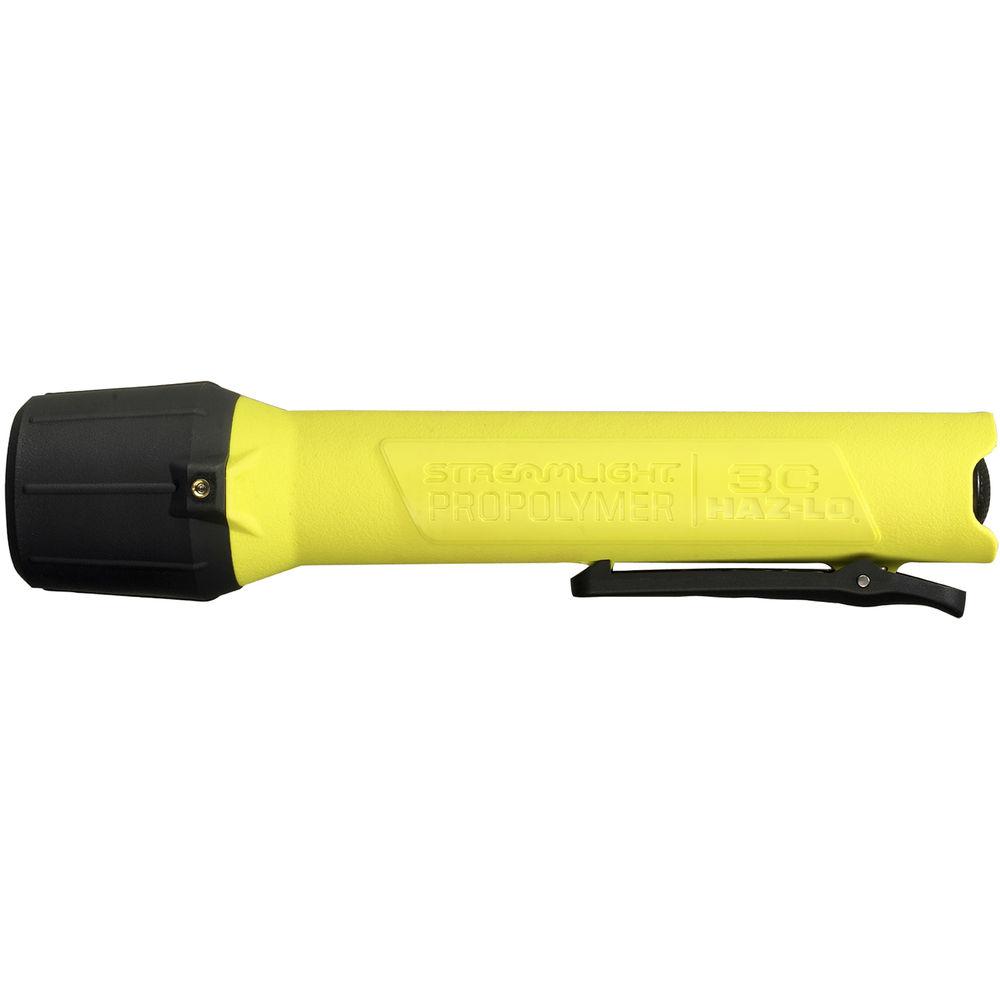

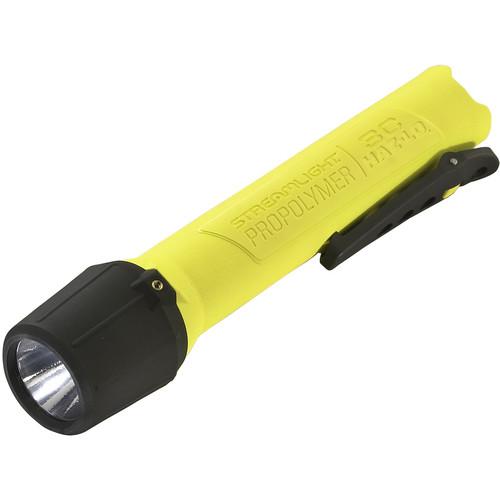

Product description UL-rated intrinsically safe, the Streamlight 3C ProPolymer Haz-Lo LED Flashlight is durable, easy to operate and maintain, and able to withstand adverse conditions. Its C4 LED delivers 150 lumens of white light, controlled on a momentary- or constant-on basis by a tailcap push-button switch, and it runs on three widely available C alkaline batteries. The light's O-ring sealed and vented, anti-static engineered polymer resin housing and polycarbonate lens are rated IP67 water resistant, capable of withstanding submersion in shallow water for 30 minutes with no damage, and impact resistant to 9.8'. An integrated face cap lock and sealed tailcap switch provide further security in explosive environments, and visual and mechanical safeguards prevent incorrect battery installation. This item comes in clamshell packaging. - Light Performance
-
- 150 lumens output
- Runtime: 18 hours to 10% of initial lumen output
- C4 LED

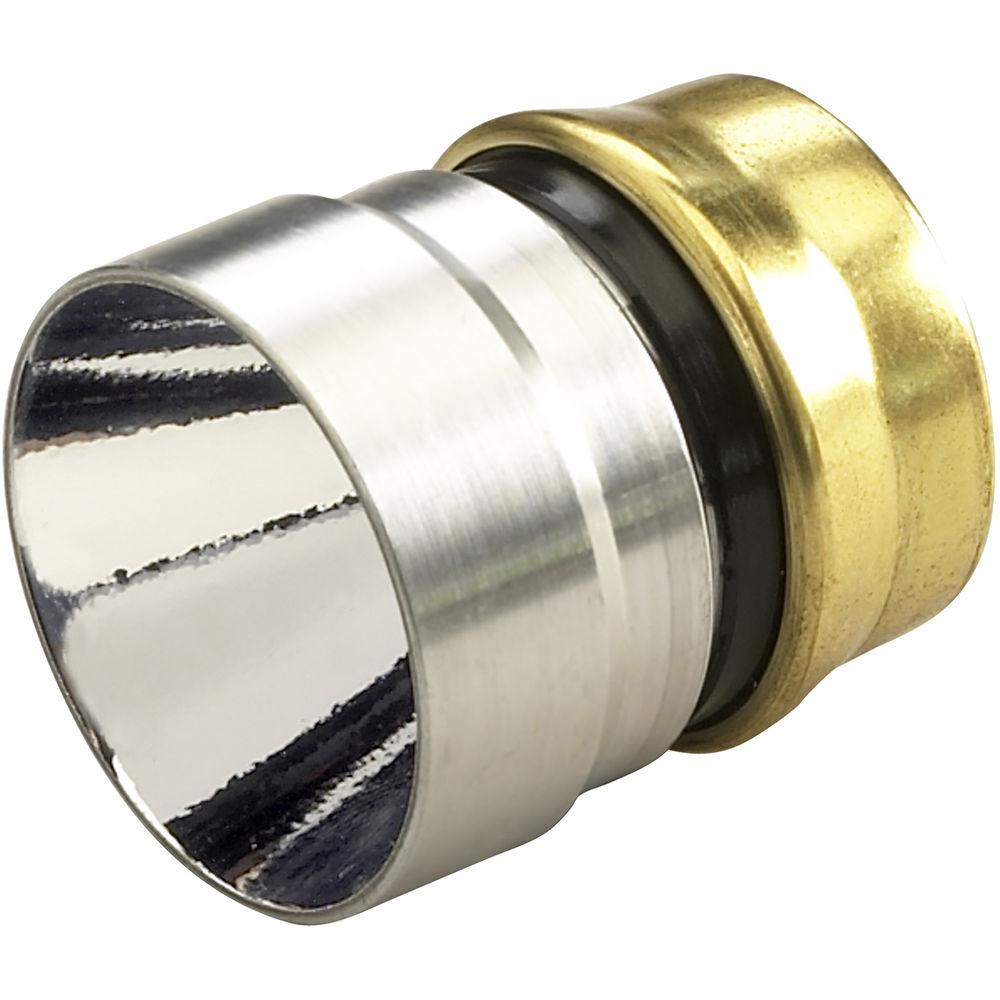

- Lightly textured parabolic reflector
- Switching
-
- Location: tailcap
- Type: push button
- Momentary- and constant-on activation
- Construction Details
-
- Anti-static, non-conductive, corrosion-resistant engineered polymer resin housing
- Polycarbonate lens with face cap lock for extra security
- IP67-rated water resistant, submersible to 3.3' for 30 minutes
- Impact resistant to 9.8'
- Runs on three user-supplied C batteries
- Electronically regulated for consistent performance throughout battery life
- Measures 9.3 x 1.5", head diameter 2.1"
- Safety Approvals
-
- UL Classified Class I, Division 1, Groups A,B,C,D; Class II, Division 1, Groups E,F,G; Class III; Exia; T-Class: T4
- MSHA Permissible Flashlight. Approval No. 20-A130003-0 Tested for Intrinsic Safety in Methane-Air mixtures only.
- FTZU 11 ATEX 0183X; II 1G Ex ia IIC T4 Ga; II 1D Ex ia IIIC T99C Da IECEx FTZU 14.0011X; Ex ia IIC T4 Ga; Ex ia IIIC T99°C Da
- INMETRO UL-BR 12.0516X Ex ia IIC T4 Ga; Ex ia IIIC T99°C
- Meets applicable European Community Directives
UPC: 080926338203 In the Box Streamlight 3C ProPolymer Haz-Lo LED Flashlight (Yellow, Clamshell Packaging) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight 3C ProPolymer Haz-Lo LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight 3C ProPolymer Haz-Lo Specs | | | Lumen Output | 150 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | Low: 18 Hours | | Battery Type | 3 x C | | | | Lens Material | Polycarbonate | | Material of Construction | Plastic | | Water Resistance | Waterproof to 3.3' / 1 m, IP67 | | Impact Resistance | Yes, 9.8' / 3.0 m | | Bezel Diameter | 2.1" / 5.3 cm | | Dimensions |
