User Manual for Streamlight Argo HAZ-LO LED Headlamp Click to enlarge the picture
Contents of the user manual for the Streamlight Argo HAZ-LO LED Headlamp
- Product category: Headlamps Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Headlamps
 |
User manual for the Streamlight Argo HAZ-LO LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

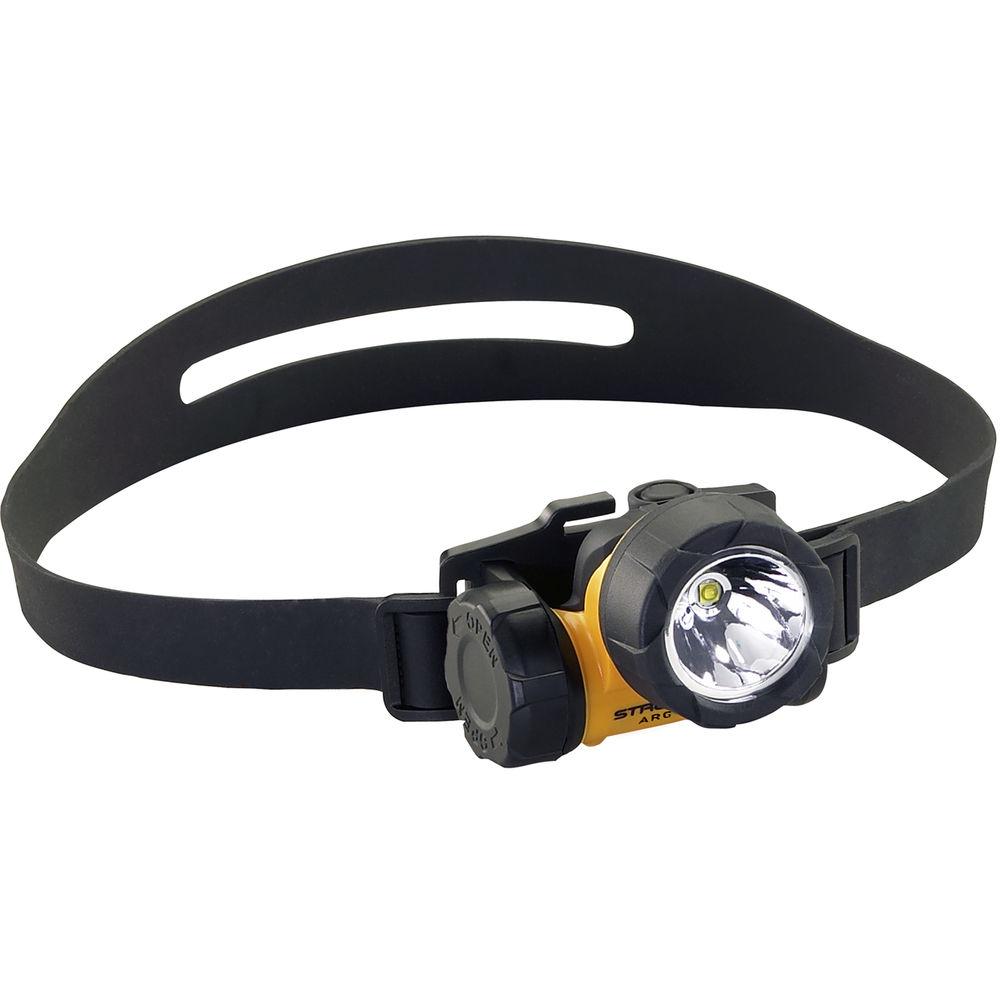

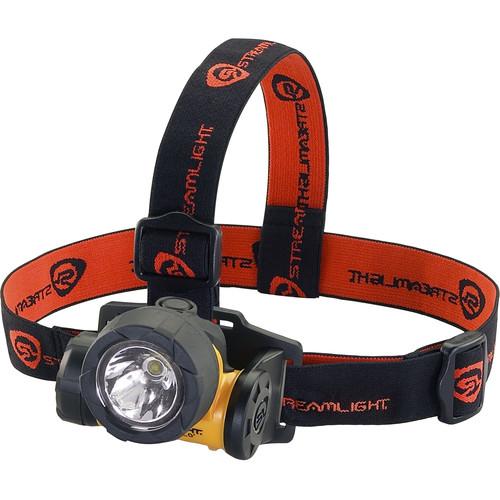

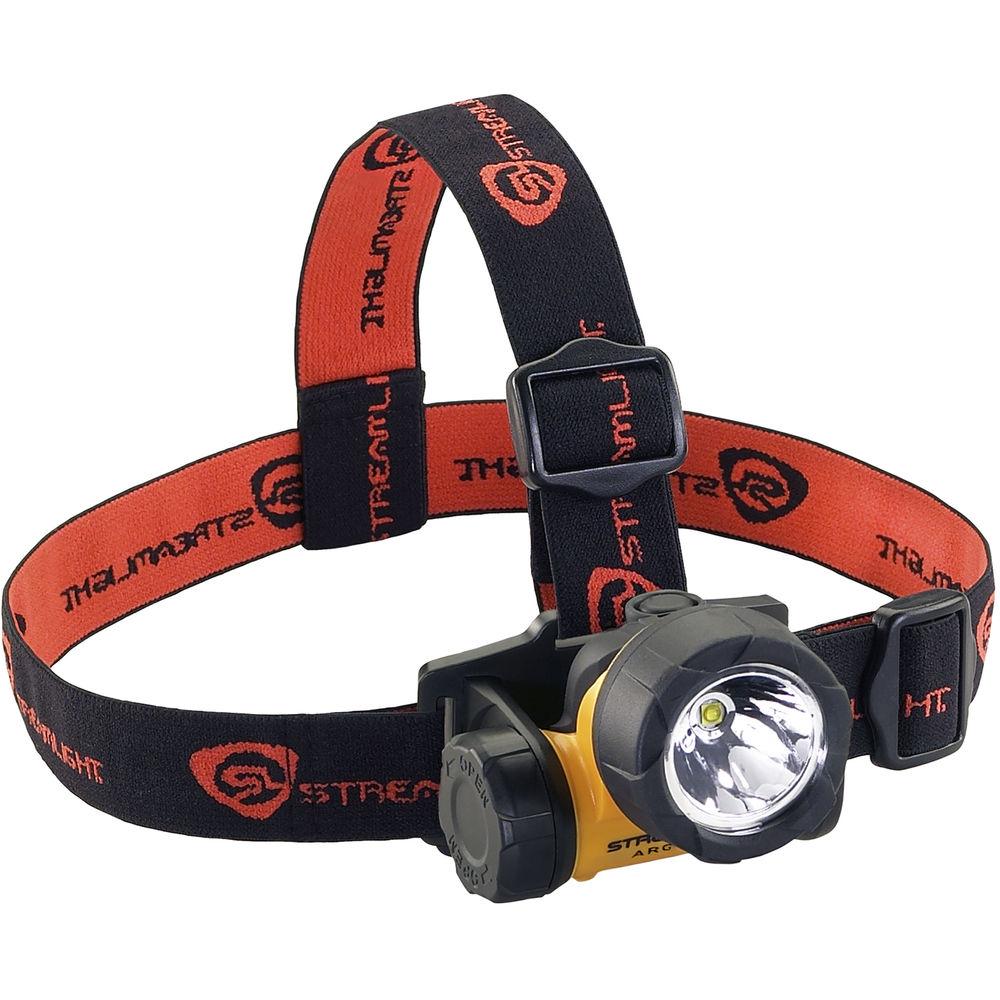

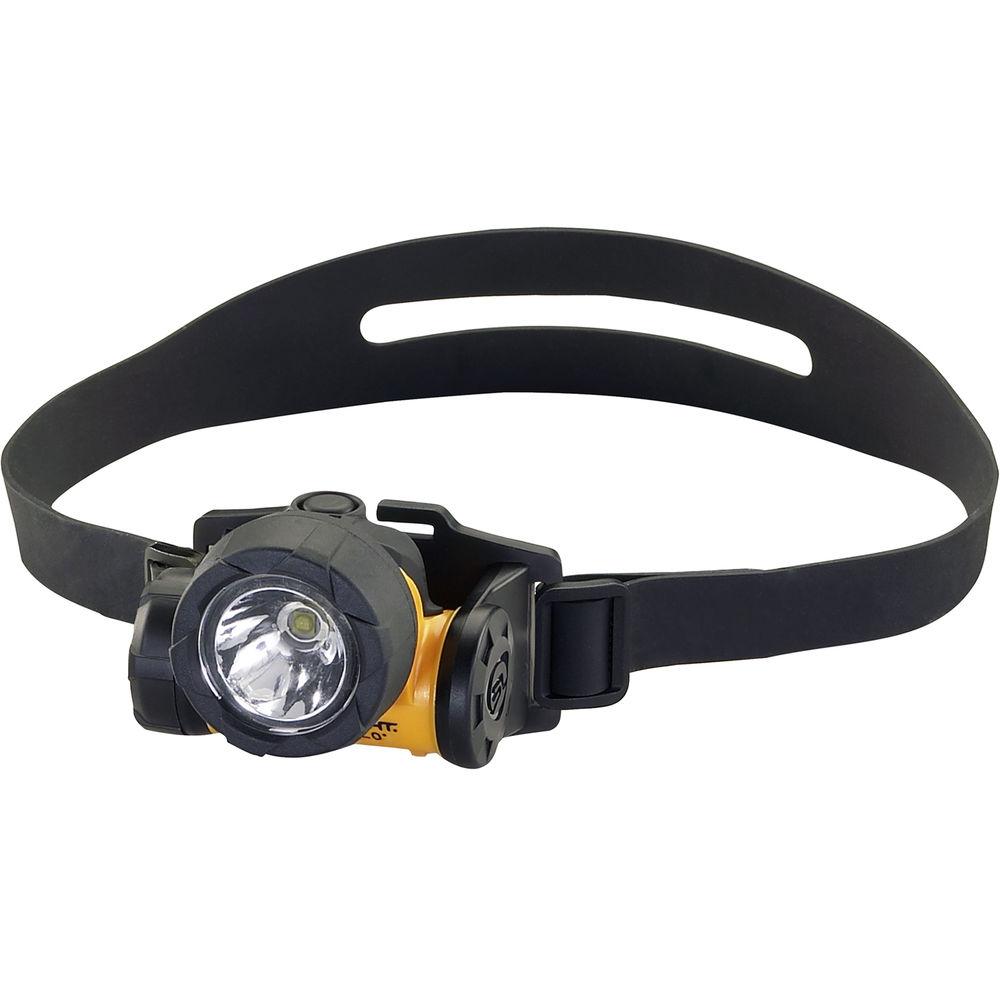

Product description Designed for use in hazardous environments, the intrinsically safe Argo HAZ-LO LED Headlamp from Streamlight provides a direction-adjustable beam for hands-free use. It runs at brightness levels of 90 and 20 lumens, with runtime of 8 and 50 hours, respectively, on a fresh set of AAA natteries. The thermoplastic housing is IPX4-rated water resistant and impact resistant to 6.6', and comes with an elastic headband and a rubber hard hat strap. - Light Performance
-
- High: 90 lumens
- Low: 20 lumens
- Runtime: 8/50 hours
- Switching
-
- Single push-button switch
- Construction Details
-
- Approvals: Class 1, Division 1, Groups A,B,C,D; Class II, Division 1, Groups E,F,G; Class III, T-Class: T4 Exia
- Durable thermoplastic construction with polycarbonate lens
- 90° tilting head
- IPX4 water resistant
- Impact resistant to 6.6'
- Elastic headband
- Rubber hard hat strap
UPC: 080926610262 In the Box Streamlight Argo HAZ-LO LED Headlamp (Yellow, Clamshell Packaging) Elastic Headband Rubber Hard Hat Strap 3 x AAA Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Argo HAZ-LO LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Haz-Lo Specs | | | Lumen Output | Low: 20 Lumens
High: 90 Lumens | | Illumination Source | 1 x LED | | Estimated Runtime | High: 8 Hours
Low: 50 Hours | | Battery Type | 3 x AAA | | | | Lens Material | Polycarbonate | | Material of Construction | Polycarbonate | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Dimensions | W: 2.7 x H: 2.4" / W: 6.9 x H: 6.1 cm | | Weight | 5.4 oz / 153 g (With Batteries) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
