User Manual for Streamlight Dualie 2AA Flashlight Click to enlarge the picture
Contents of the user manual for the Streamlight Dualie 2AA Flashlight
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
 |
User manual for the Streamlight Dualie 2AA Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

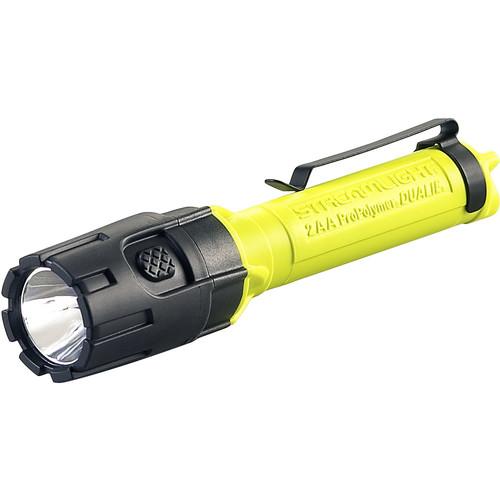

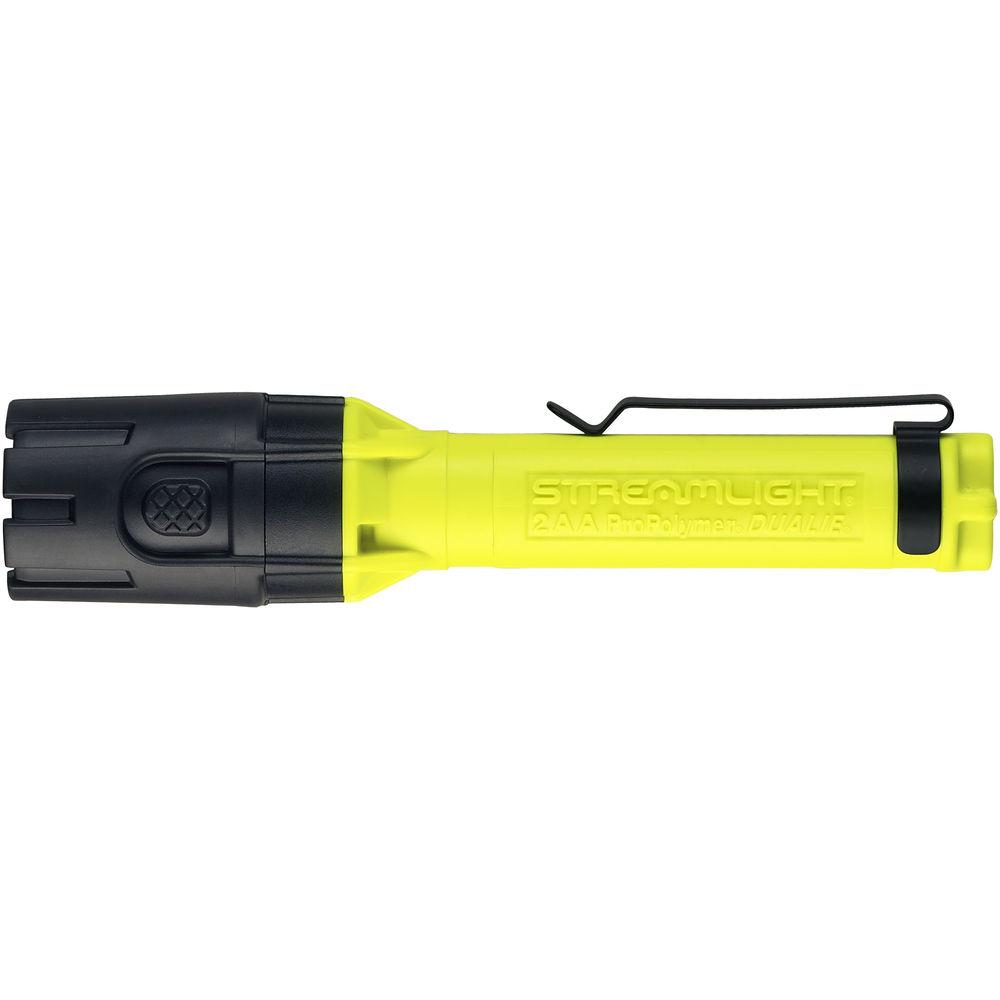

Product description With 115 lumens of light focused on what's in front of you and another 115 lumens in a flood beam at your feet, the intrinsically safe Streamlight Dualie 2AA Flashlight illuminates your work area and helps avoid slips, trips, and falls. Each C4 LED beam is controlled by its own push-button switch, so you can use them alone or together. Each beam will run 24 hours alone; combine them for a total 175-lumen output and the runtime is 15 hours (all runtimes are to 10% of initial output.) The removable pocket clip can be used in either direction, and the light has a magnetized tailcap that clings to metal surfaces (such as the inside of a car hood) for hands-free use. The Dualie's durable, non-conductive, corrosion-proof polymer resin housing and polycarbonate lens are rated IPX4 water resistant, submersible in shallow water with no damage, and impact resistant to 6.6'. The light runs on two AA batteries. This item comes in clamshell packaging. - Light Performance
-
- Forward-facing spot beam: 115 lumens

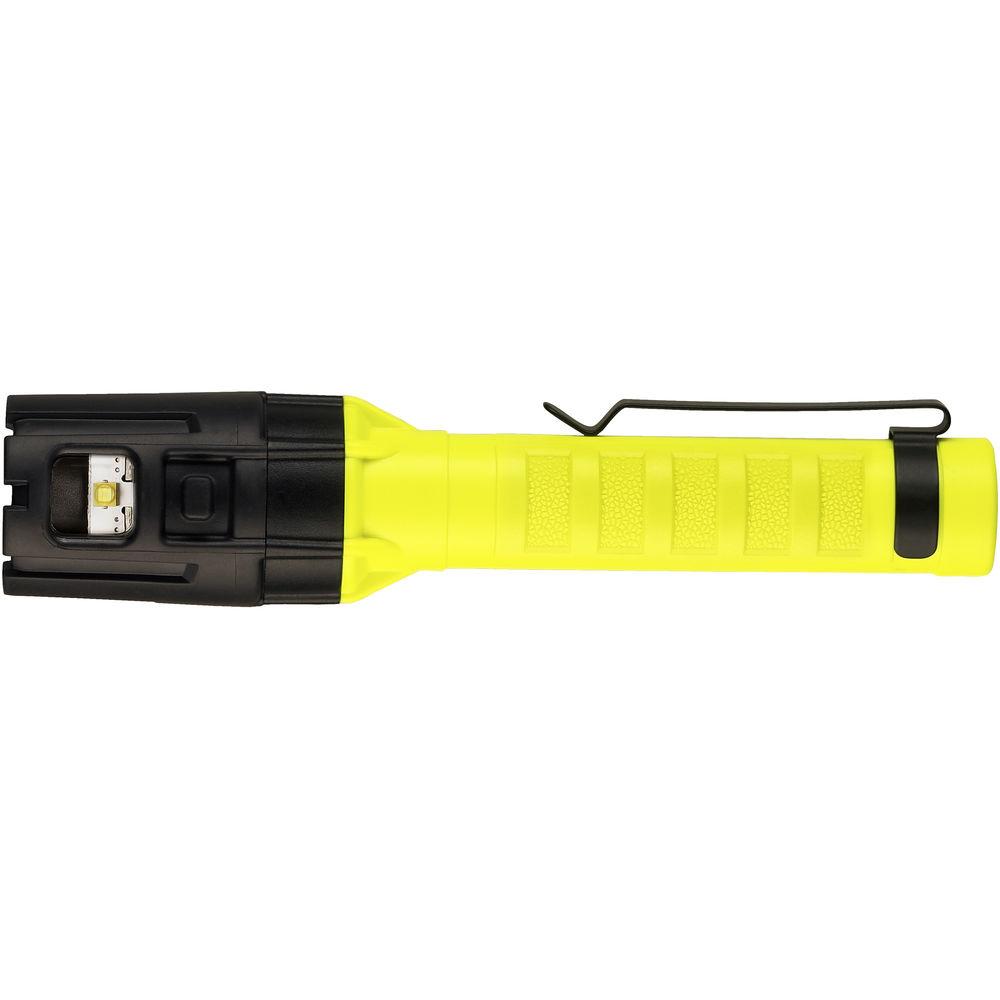

- Downward-facing flood beam: 115 lumens
- Both beams: 175 lumens

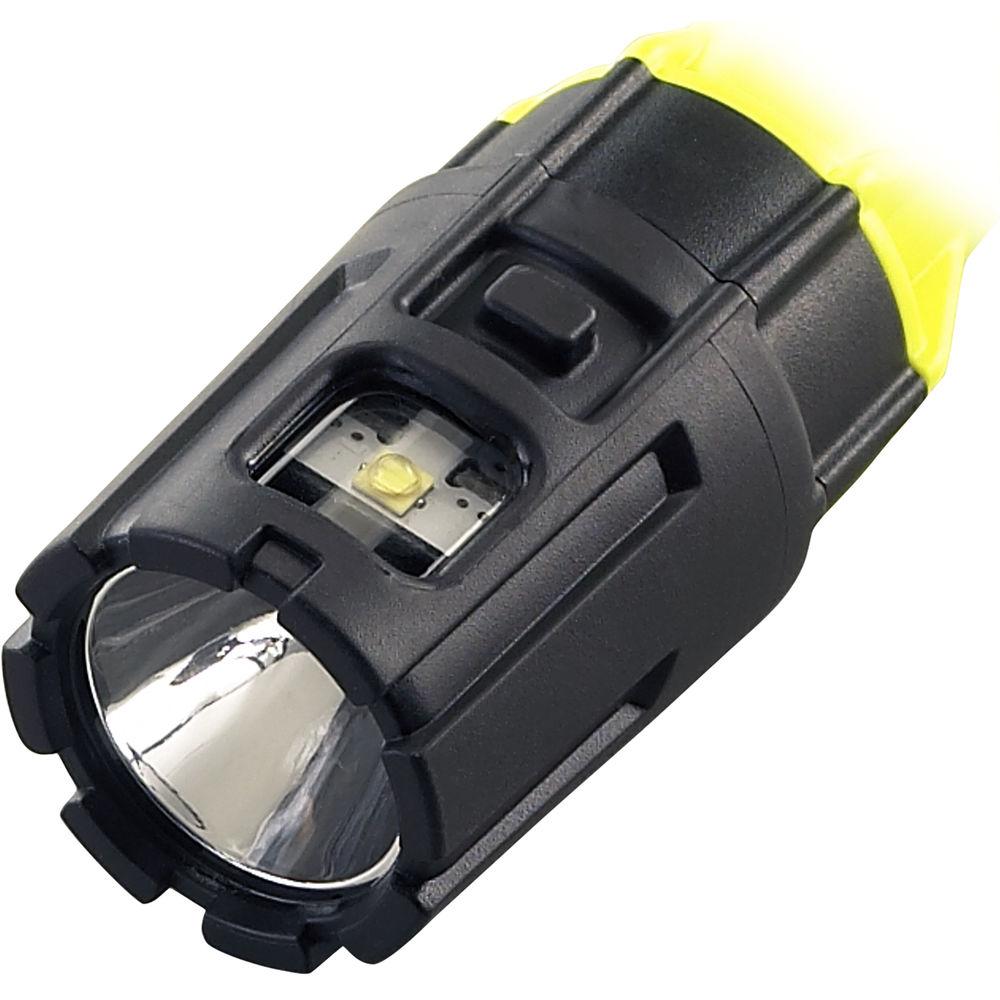

- C4 LEDs
- Runtime: individual beams, 24 hours; both beams, 15 hours (runtimes to 10% of original output)
- Spot beam: smooth parabolic reflector
- Switching
-
- Dual push buttons
- Location: opposite sides of head
- Construction Details
-
- Shock resistant, non-conductive, lightweight engineered polymer resin with textured surface
- Polycarbonate lens

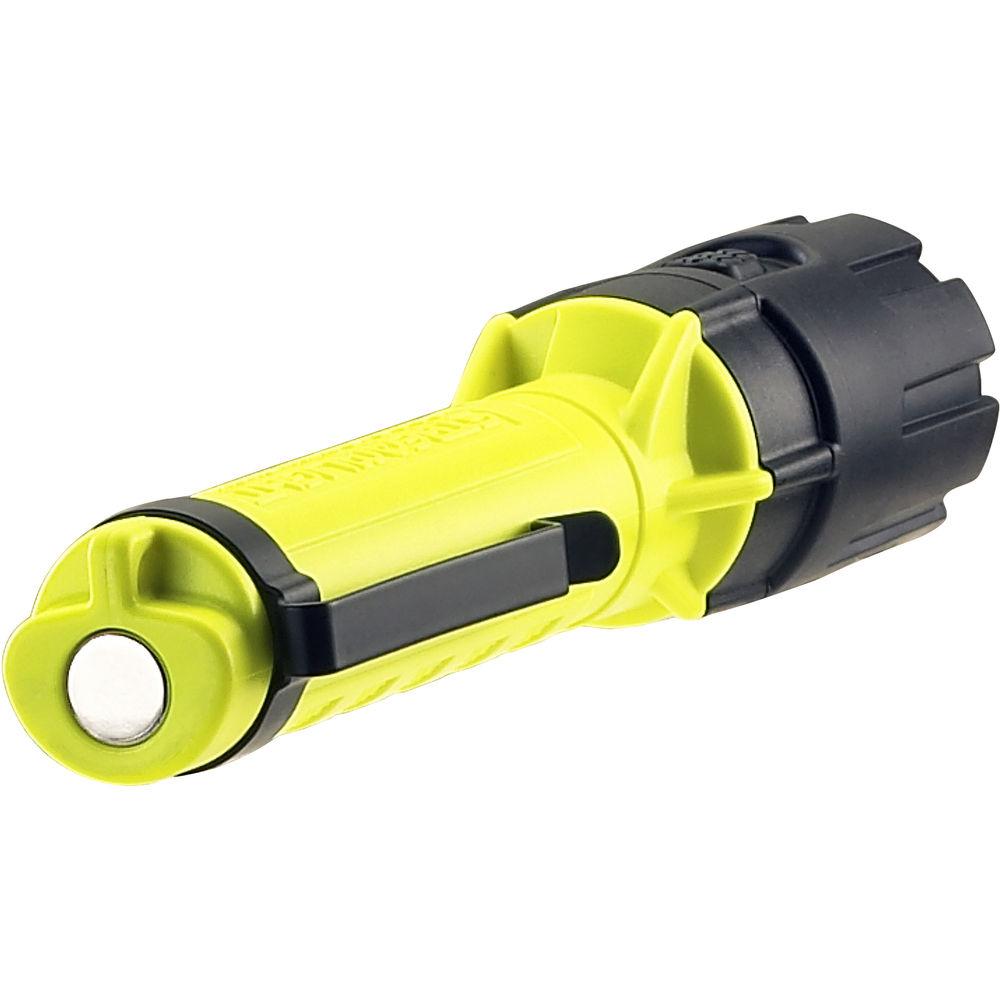

- Magnetic tailcap for hands-free trouble-light use
- Removable two-way pocket/belt clip
- IPX4-rated splash-proof
- Impact resistant to 6.6'
- Runs on two AA batteries
- Safety Approvals
-
- Class I, II, Division 1, Groups A, B, C, D, E, F, G; Class III; CL I, ZN 0, IIC; Exia; T-Code: T4 (approved for use with Energizer E91, Duracell MN1500, and Rayovac NO.815 alkaline batteries)
- II 1G Ex ia op is IIC T3/T4 Ga; FTZU 16ATEX0120X, IECEx FTZU 16.0022X (approved for use with Duracell MN1500, Rayovac NO.815 (T4); Energizer E91, Panasonic LR6XP & LR6XWA (T3))
- Ex ia op is IIC T3/T4 Ga; DNV 17.0011X (approved with Duracell MN1500, Rayovac NO.815 (T4); Energizer E91, Panasonic LR6XP & LR6XWA (T3))
- Meets applicable European Community Directives
UPC: 080926677500 In the Box Streamlight Dualie 2AA Flashlight (Yellow, Clamshell Packaging) 2 x AA Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Dualie 2AA Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Dualie 2AA Specs | | | Lumen Output | High: 175 Lumens
Low: 115 Lumens | | Illumination Source | 2 x LED | | | | Estimated Runtime | Spot: 24 Hours
All Beams: 15 Hours | | Battery Type | 2 x AA | | | | Lens Material | Polycarbonate | | Material of Construction | Plastic | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Bezel Diameter | 1.3" / 33.0 mm | | Dimensions |
