User Manual for Streamlight Dualie 3AA Laser Flashlight Click to enlarge the picture
Contents of the user manual for the Streamlight Dualie 3AA Laser Flashlight
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
 |
User manual for the Streamlight Dualie 3AA Laser Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

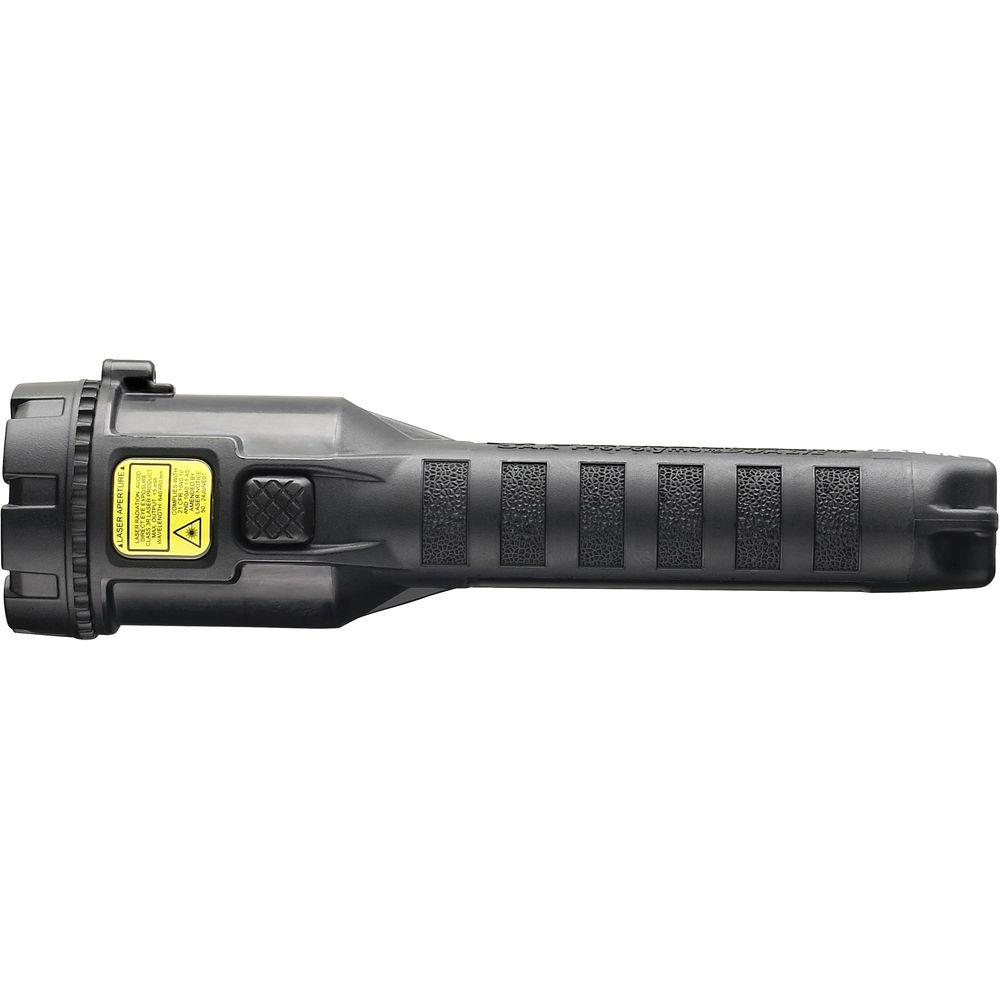

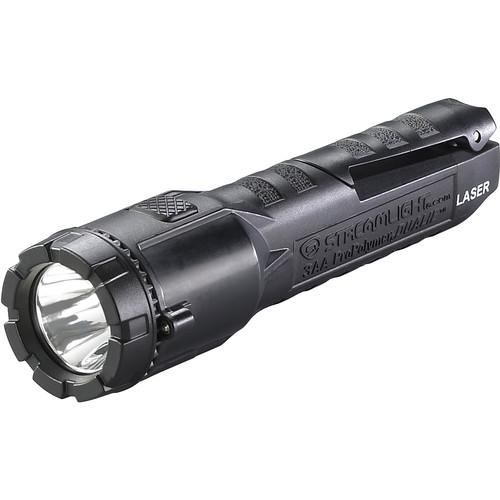

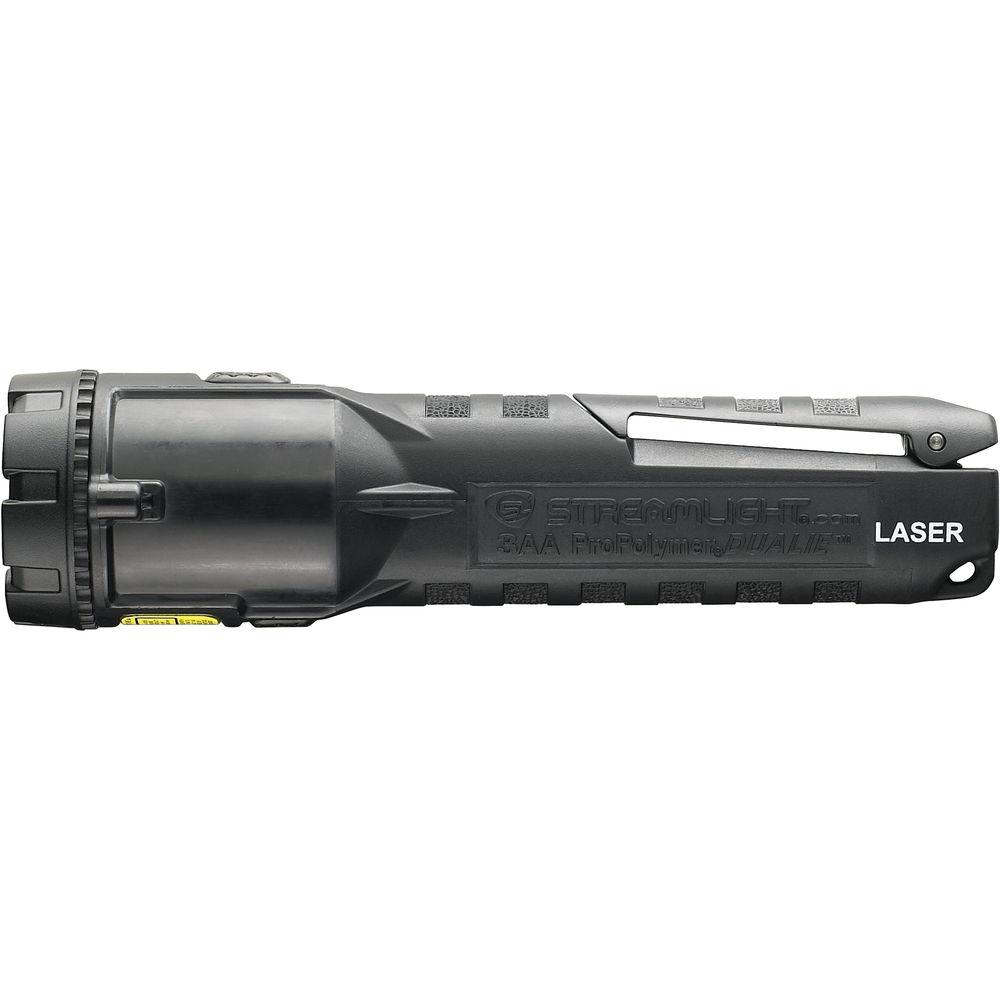

Product description With 150 lumens of light in a focused spot beam and a red laser pointer for precise location identification, the intrinsically safe Streamlight Dualie 3AA Laser Flashlight has many applications in professional and home use. The C4 white-light beam and the 640-650nm laser are each controlled by their own push-button switches, so you can easily use them alone or together. Momentary- and constant-on activation are available for the LED beam. Runtime is 17 hours for the light, 70 hours for the laser, and 12 hours for both together (to 10% of initial output.) The integrated clip grabs onto belts, pockets, and other gear for hands-free use. The Dualie's durable, non-conductive, corrosion-proof polymer resin housing and polycarbonate lens are rated IPX7 water resistant, submersible in shallow water with no damage, and impact resistant to 6.6'. The light runs on three AA batteries. This item comes in clamshell packaging. - Light Performance
-
- Spot beam: 150 lumens
- Laser: 640-650 nm
- Runtime: spot 17 hours, laser 70 hours, both 12 hours (runtimes to 10% of original output)

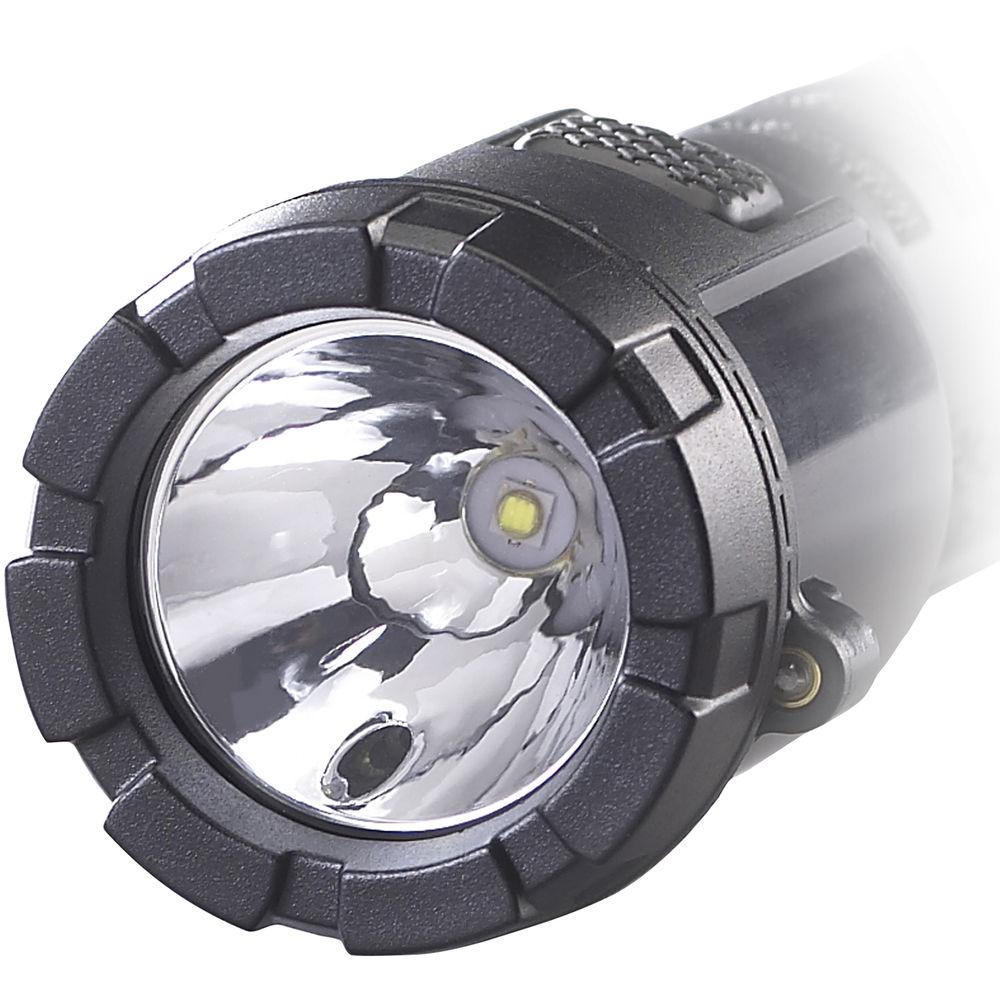

- Spot beam: smooth parabolic reflector
- Switching
-
- Dual push buttons
- Location: opposite sides of head
- Momentary- and constant-on activation (spot beam)
- Construction Details
-
- Shock resistant, non-conductive, lightweight engineered polymer resin with textured surface
- Polycarbonate lens

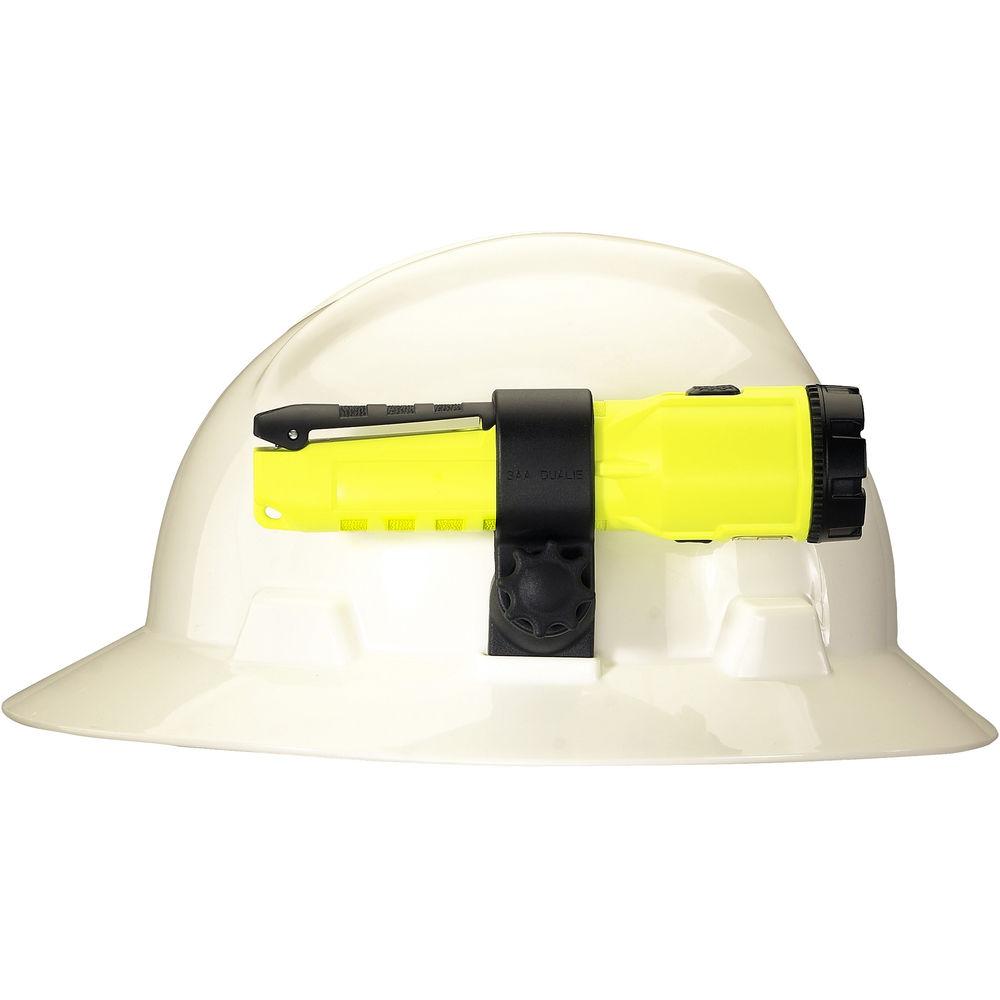

- Integrated clip grabs onto shirts, belts, pockets, etc., for hands-free use
- IPX7 rated, submersible to 3.3'
- Impact resistant to 6.6'
- Runs on three AA batteries
- Safety Approvals
-
- Class I, II, Division 1, Groups A, B, C, D, E, F, G; Class III; CL I, ZN 0, IIC; Exia; T-Code: T4 (approved for use with Energizer E91, EA91, L91, Duracell MN1500, and Rayovac NO.815)
- MSHA Permissible Handheld Flashlight. Approval No. 20-A160001-0. Tested for Intrinsic Safety in methane-air mixtures only. (approved for use with Energizer E91, Duracell MN1500, and Rayovac NO.815)
- II 1G Ex ia op is IIC T3/T4 Ga; FTZU 15ATEX0221X, IECEx FTZU 16.0017X (approved for use with Energizer L91, Duracell MN1500, Rayovac NO.815 (T4); Energizer E91, Panasonic LR6XP & LR6XWA (T3))
- Meets applicable European Community Directives
UPC: 080926687622 In the Box Streamlight Dualie 3AA Laser Flashlight (Black, Clamshell Packaging) 3 x AA Alkaline Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Dualie 3AA Laser Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Dualie 3AA Laser Specs | | | Lumen Output | 150 Lumens | | Illumination Source | 1 x LED | | Colored Output | Red: 650 nm | | | | Estimated Runtime | White: 17 Hours
Laser: 70 Hours | | Battery Type | 3 x AA | | | | Lens Material | Polycarbonate | | Material of Construction | Plastic | | Water Resistance | Waterproof, IPX7 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Bezel Diameter | 1.9" / 48.3 mm | | Dimensions | H: 1.5 x W: 1.1 x L: 7.0" / H: 3.8 x W: 2.8 x L: 17.8 cm | | Weight | 6.8 oz / 193 g (With Batteries) | | | | Package Weight | 0.535 lb | | Box Dimensions (LxWxH) | 9.1 x 6.2 x 2.05" |
