User Manual for Streamlight Green Trident LED Headlamp Click to enlarge the picture
Contents of the user manual for the Streamlight Green Trident LED Headlamp
- Product category: Headlamps Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Headlamps
 |
User manual for the Streamlight Green Trident LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

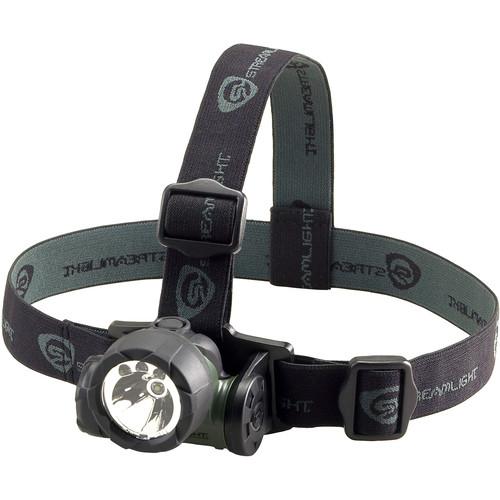

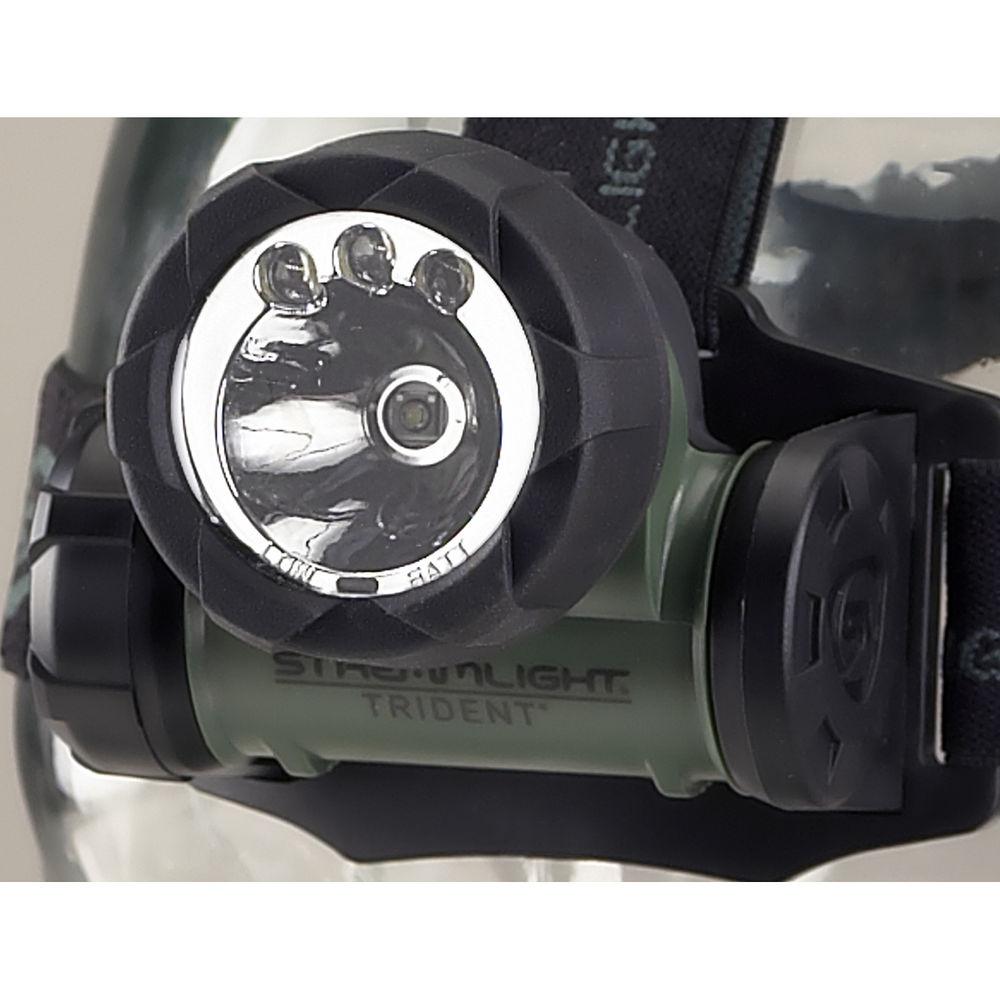

Product description With high and low white-light settings and a green light that helps preserve night-acclimated vision and won't spook game, the Streamlight Green Trident LED Headlamp is useful for such activities as stargazing and night hunting, as well as general use. A white C4 LED generates the peak brightness level, while two 5mm white LEDs produce the white low beam and one 5mm green LED emits the colored light. Runtime is 5 and 19.5 hours, respectively, for the high and low white settings, and 63 hours for the green light. The light runs on three widely available AAA batteries and is controlled by a single push-button switch on the top of the housing: click once for green, twice for white low, and three times for white high.

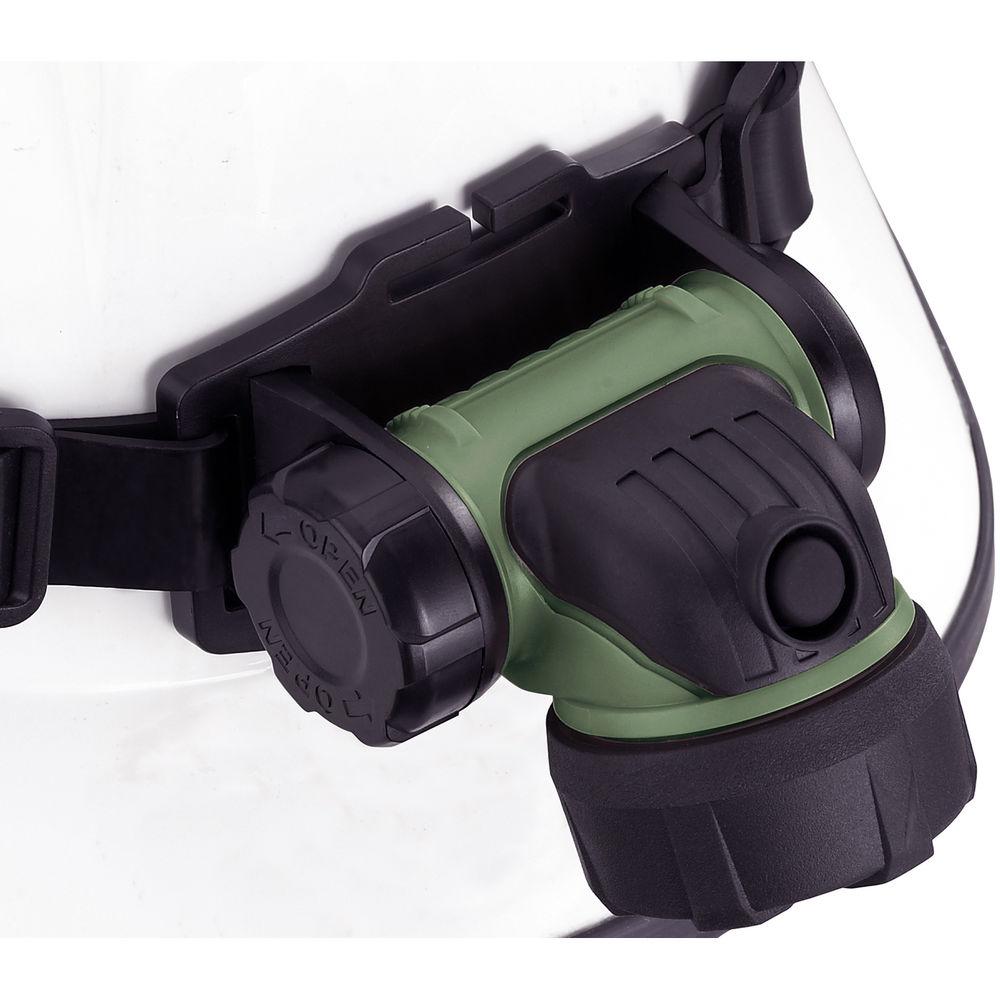

The lamp tilts up to 90° for precise beam placement. The Trident's thermoplastic housing and polycarbonate lens are rated IPX4 splash-proof and impact resistant to 6.6'. The lamp comes with an elastic headband and a rubber hardhat strap. This item comes in clamshell packaging. - Light Performance
-
- White high: 80 lumens
- White low: 25 lumens
- Green: 6 lumens
- Runtime: 5, 19.5, 63 hours, respectively
- One C4 white primary LED
- Two 5mm white secondary LEDs
- One 5mm green LED
- Green light is less disruptive of night-acclimated vision and less likely to spook game
- Switching
-
- Location: top of lamp
- Type: Push button
- Click once for green, twice for white low, three times for white high
- Construction Details
-
- Head tilts 90° for precise beam placement
- Runs on three AAA batteries
- Battery power indicator light
- ABS thermoplastic housing and polycarbonate lens
- IPX4-rated splash-proof
- Impact resistant to 6.6'
- Includes elastic headband and rubber hardhat strap
- Safety approvals: Class 1, Division 2, Groups A,B,C,D; Class II, Division 2, Groups F,G; Class III, Temp Code: T5
UPC: 080926610514 In the Box Streamlight Green Trident LED Headlamp (Green, Clamshell Packaging) Elastic Headband Rubber Hardhat Strap 3 x AAA Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Green Trident LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Green Trident Specs | | | Lumen Output | High: 80 Lumens
Low: 25 Lumens
Green: 6 Lumens | | Illumination Source | 3 x White LED
1 x Green LED | | Estimated Runtime | High (White): 5 Hours
Low (White): 19.5 Hours
Low (Green): 63 Hours | | Battery Type | 3 x AAA | | | | Lens Material | Polycarbonate | | Material of Construction | ABS Polycarbonate | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Dimensions | W: 2.7 x H: 2.4" / W: 6.9 x H: 6.1 cm | | Weight | 5.5 oz / 156 g |
