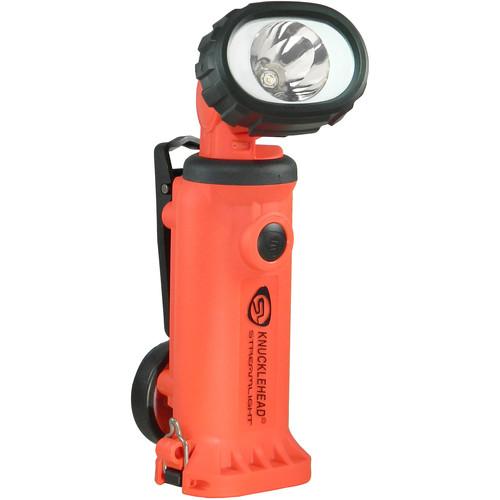

User Manual for Streamlight Knucklehead Div. 2 Spot Worklight with AA Alkaline Batteries Click to enlarge the picture
Contents of the user manual for the Streamlight Knucklehead Div. 2 Spot Worklight
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
|
User manual for the Streamlight Knucklehead Div. 2 Spot Worklight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|
Product description With 180 lumens of bright white light, a sharply focused beam, and multiple options for hands-free positioning, the intrinsically safe Streamlight Knucklehead Div. 2 Spot Worklight is a solid choice for public safety, industrial, or automotive professionals, as well as for recreation and home use. The Knucklehead's spot-beam head swivels a full 360° and articulates 210°, delivering the spot beam from the C4 LED right where it's needed. A magnet with 135-pound pull strength and a turnout gear clip add to the light's versatility. Operating the light is easy even while wearing gloves, thanks to the single, rubber dome push-button switch; click for on/off and to cycle through the high, low, moonlight, and signal flash settings. Runtime is 3.5 hours on high, 16 hours on low, 8 hours on flash, and 20 days on the moonlight setting.
The Knucklehead's nylon polymer housing is rated IPX4 water resistant and impact resistant to 6.6'. The light comes with 4 AA alkaline batteries and clamshell packaging. - Light Performance
-
- High: 180 lumens
- Low: 55 lumens
- C4 LED
- Runtime: High 3.5 hours, low 16 hours, signal flash 8 hours, moonlight 20 days
- Parabolic reflector provides a tight beam for longer range target illumination
- Switching
-
- Location: front side
- Type: rubber-domed push button
- Click for on/off and brightness level
- Construction Details
-
- Durable nylon vented polymer housing
- Polycarbonate lens
- Head rotates 360°, articulates 210°
- Removable rare earth magnet with rubber boot with 135-pound pull strength
- Turnout gear clip
- Four AA alkaline batteries
- IPX4-rated water resistant
- Impact resistant to 6.6'
- Safety Approvals
-
- Class I, Division 2, Groups A,B,C,D; Class II, Division 2, Groups F,G; Class III, Temp Code: T4/T3C
- Meets applicable European Community Directives
UPC: 080926907447 In the Box Streamlight Knucklehead Div. 2 Spot Worklight with AA Alkaline Batteries (Orange, Clamshell Packaging) 4 x AA Alkaline Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Knucklehead Div. 2 Spot Worklight with AA Alkaline Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Knucklehead Spot Specs | | | Lumen Output | High: 180 Lumens
Low: 55 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 3.5 Hours
Low: 16 Hours
Strobe: 8 Hours
Minimum: 20 Days | | | | Material of Construction | Plastic | | Water Resistance | Water Resistant, IPX4 | | Dimensions | H: 2.9 x W: 2.8 x L: 9.2" / H: 7.2 x W: 7.0 x L: 23.4 cm | | Weight | 18.3 oz / 519 g |
