User Manual for Streamlight PolyTac 90 Click to enlarge the picture
Contents of the user manual for the Streamlight PolyTac 90
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
 |
User manual for the Streamlight PolyTac 90 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

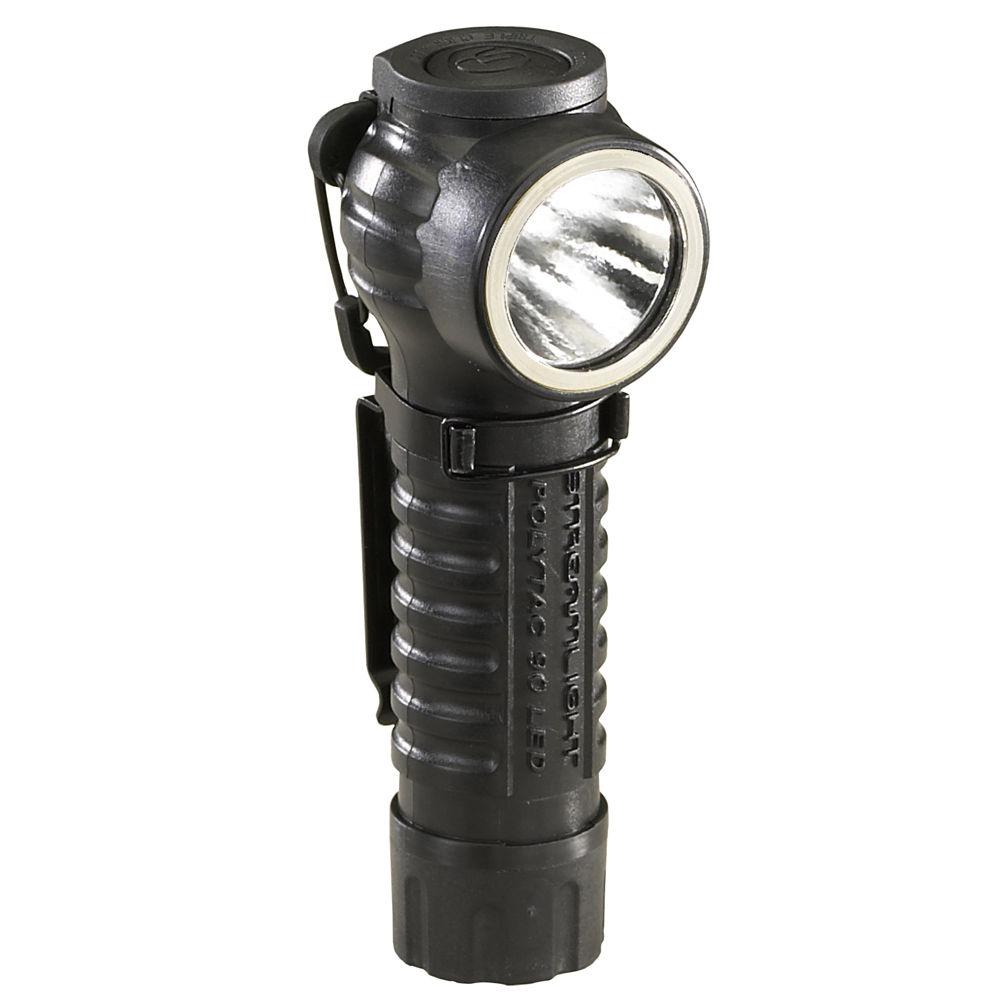

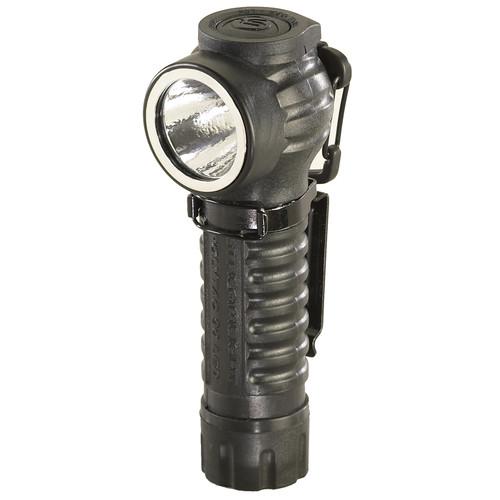

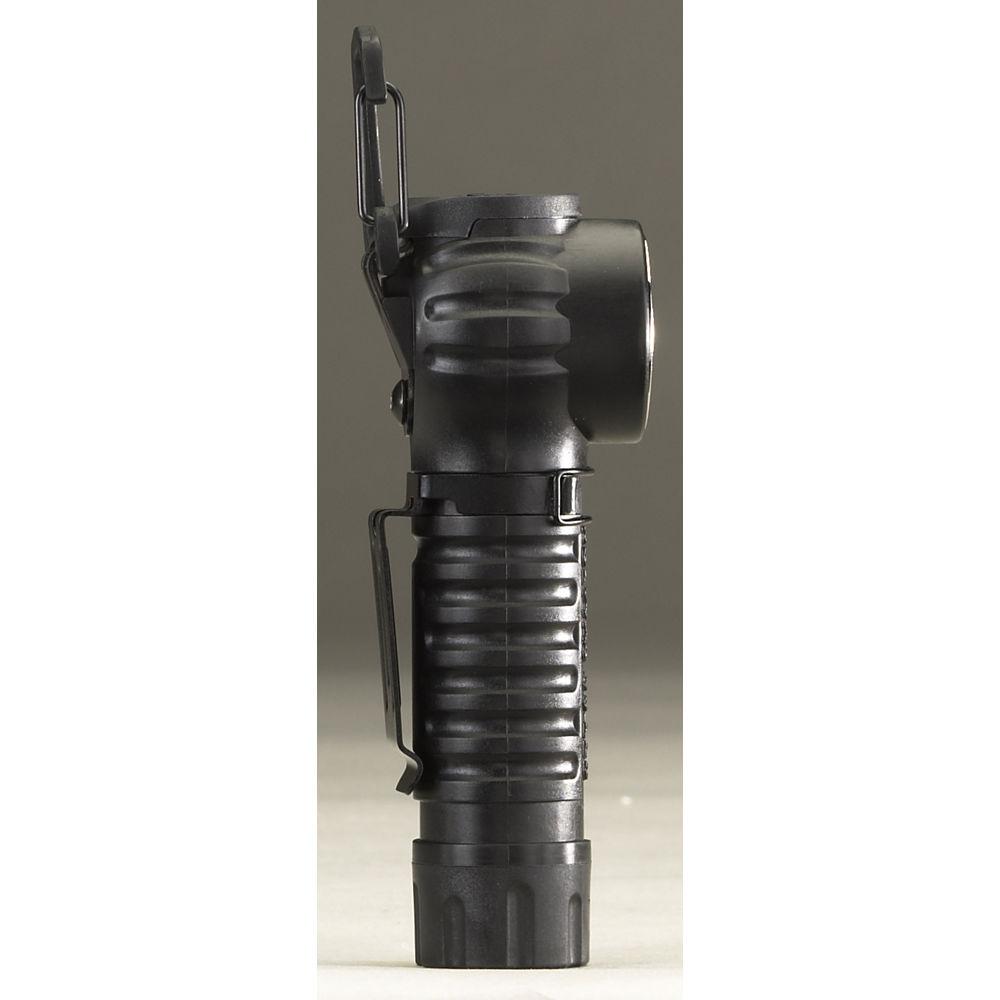

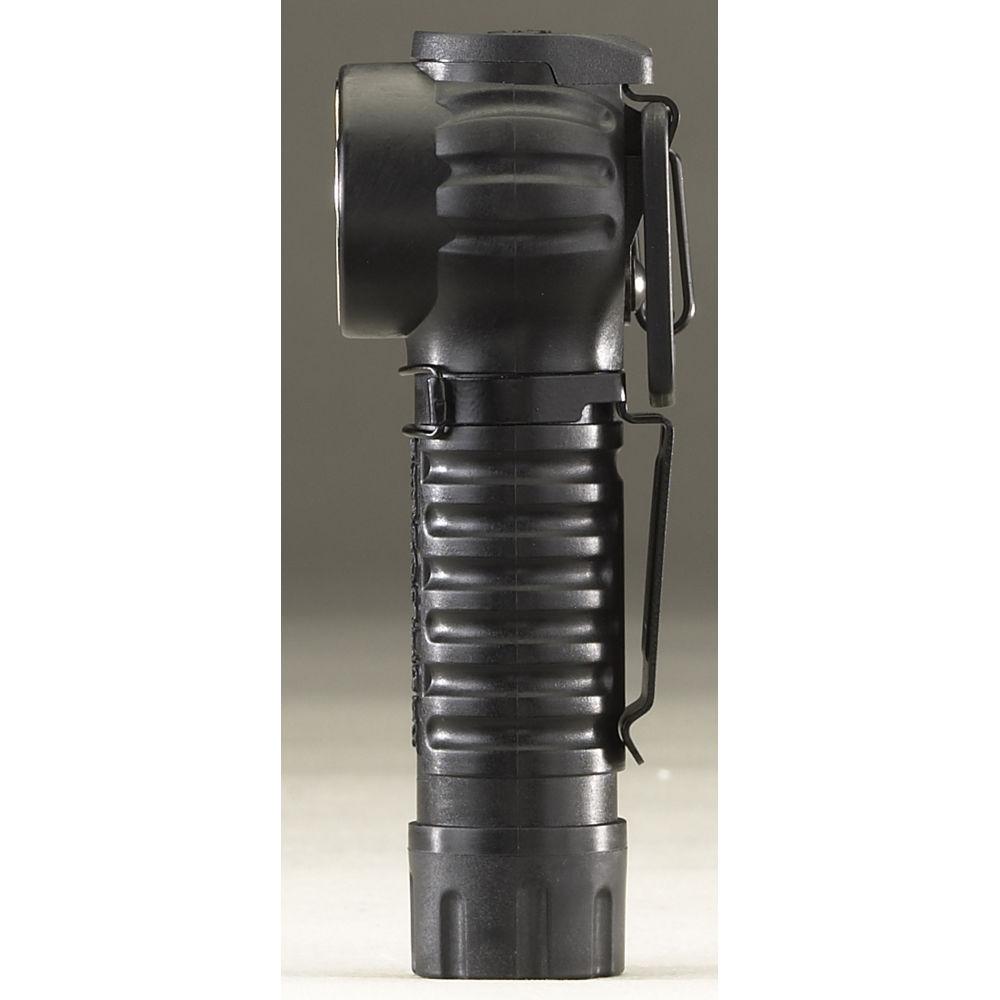

Product description The removable clip and ninety-degree design of the black Streamlight PolyTac 90 puts light where you need it. You can clip it to a shirt pocket, or hang it using the built-in carabiner, and direct light to where you are working. The C4 LED puts out up to 170 lumens on high, or 17 on low. Switching is simple, you can choose from high or low outputs as well as strobe for signaling purposes. IPX7 waterproofing means it is submersible to 3.3' for a half hour, and is rated to survive a fall from up to 3.3'. - Light Performance
-
- Low: 17 lumens
- High: 170 lumens
- One white C4 LED
- Strobe mode: Use to signal or to disorientate
- Textured Parabolic Reflector
- Switching
-
- Location: Head
- Momentary or constant-on activation
- Two quick clicks from off turn on strobe
- Three quick clicks from off turn on low
- Construction Details
-
- 1.3" bezel
- Impact-, corrosion- and temperature-resistant black nylon-polymer housing
- Gasket-sealed glass lens
- IP67 rated: waterproof to 3.3' for up to 30 minutes
- Impact resistant to 3.3'
- Housing maintains constant comfortable temperature in extreme cold or when wet

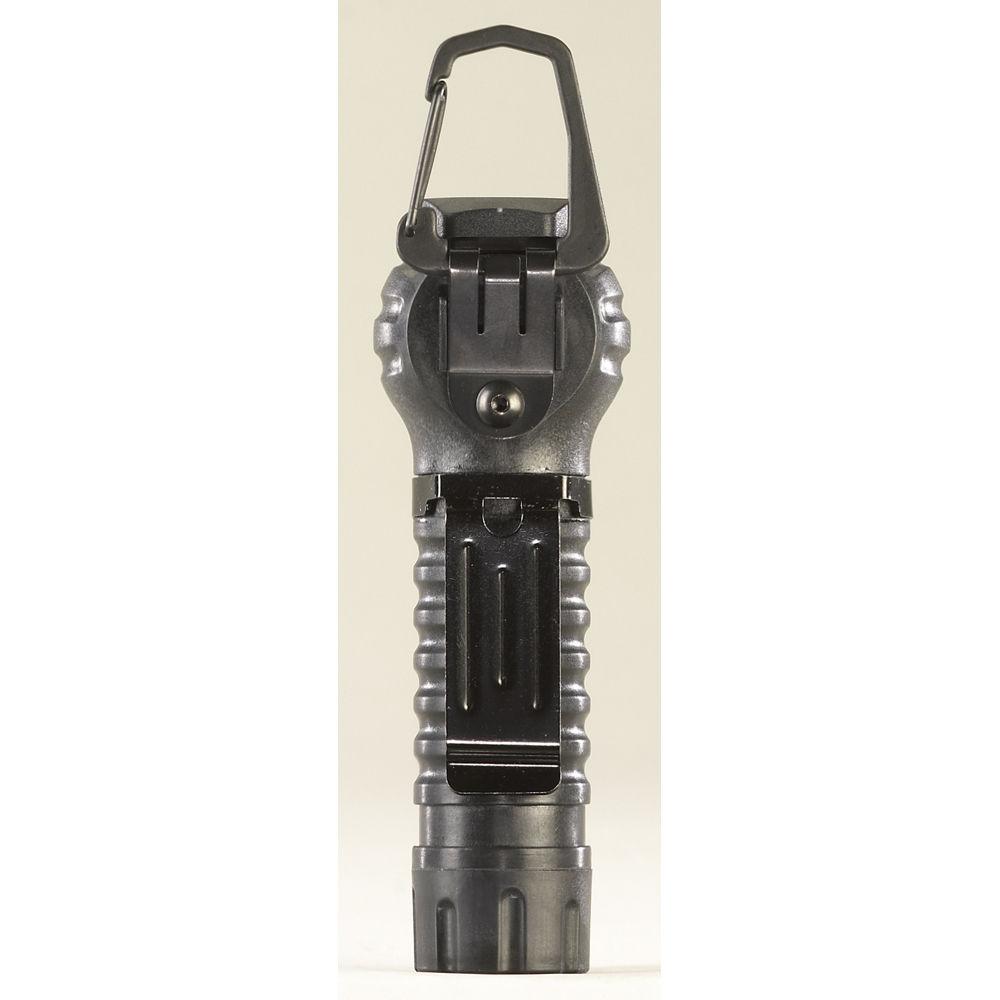

- Built-in carabiner with removable and reversible clip
- Runs on two included CR123A batteries
- 4.1 oz, with batteries
UPC: 080926888302 In the Box Streamlight PolyTac 90 (Black, Clamshell Packaging) 2 x CR123A Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight PolyTac 90 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight 88830 Specs | | | Lumen Output | High: 170 Lumens
Low: 17 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 3.75 Hours
Low: 30 Hours
Strobe: 6 Hours | | Battery Type | 2 x CR123A | | | | Material of Construction | Plastic | | Water Resistance | Waterproof to 3.3' / 1 m, IP67 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 1.3" / 33.0 mm | | Dimensions |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
