User Manual for Streamlight ProTac HL Rechargeable Headlamp Click to enlarge the picture
Contents of the user manual for the Streamlight ProTac HL Rechargeable Headlamp
- Product category: Headlamps Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Headlamps
 |
User manual for the Streamlight ProTac HL Rechargeable Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

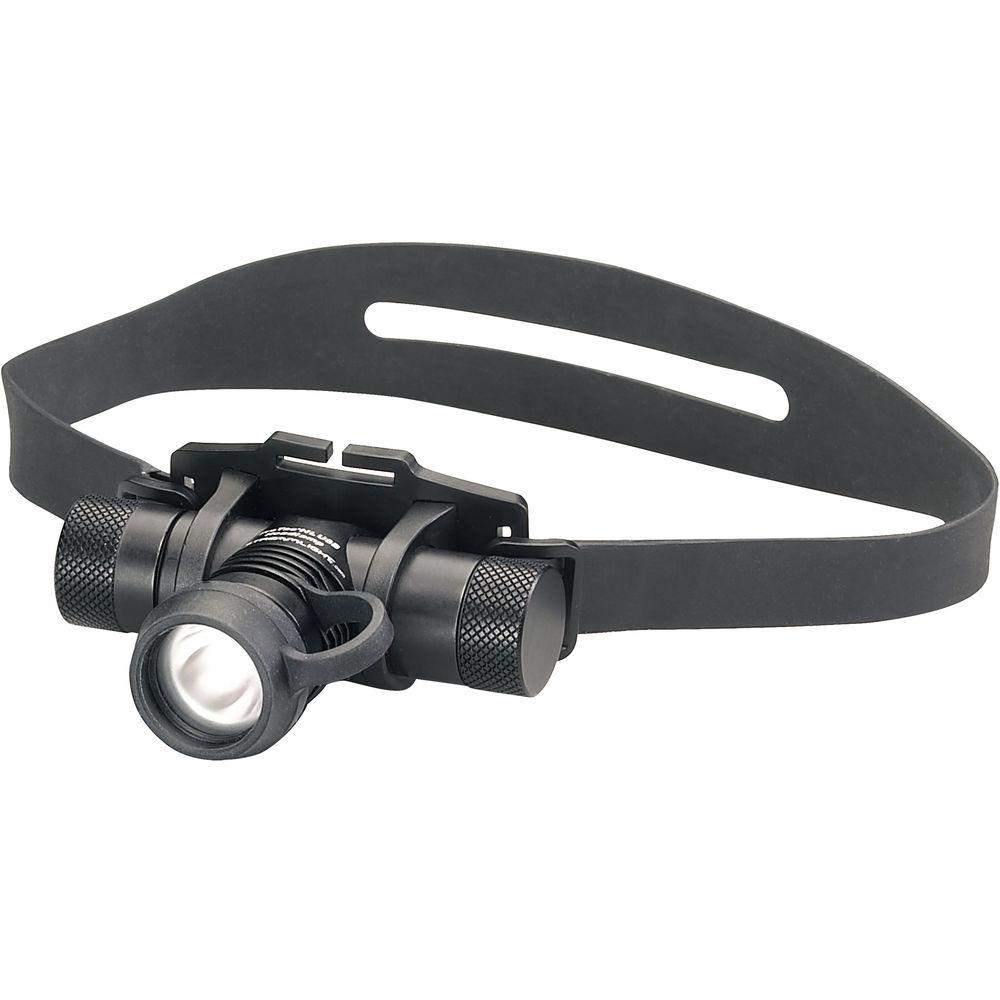

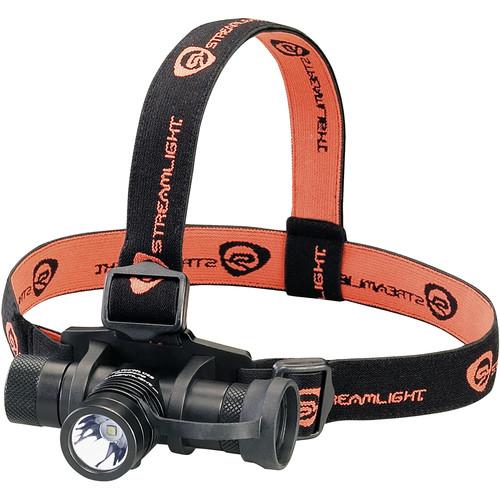

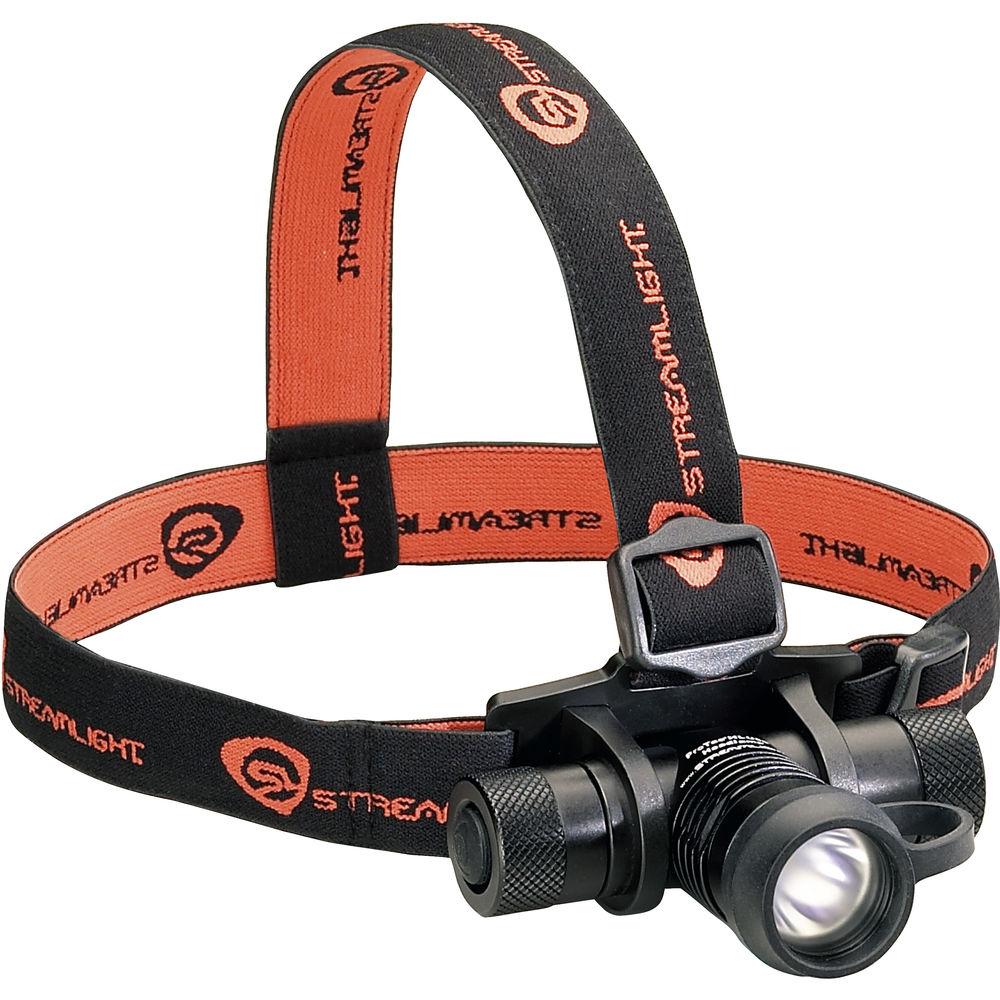

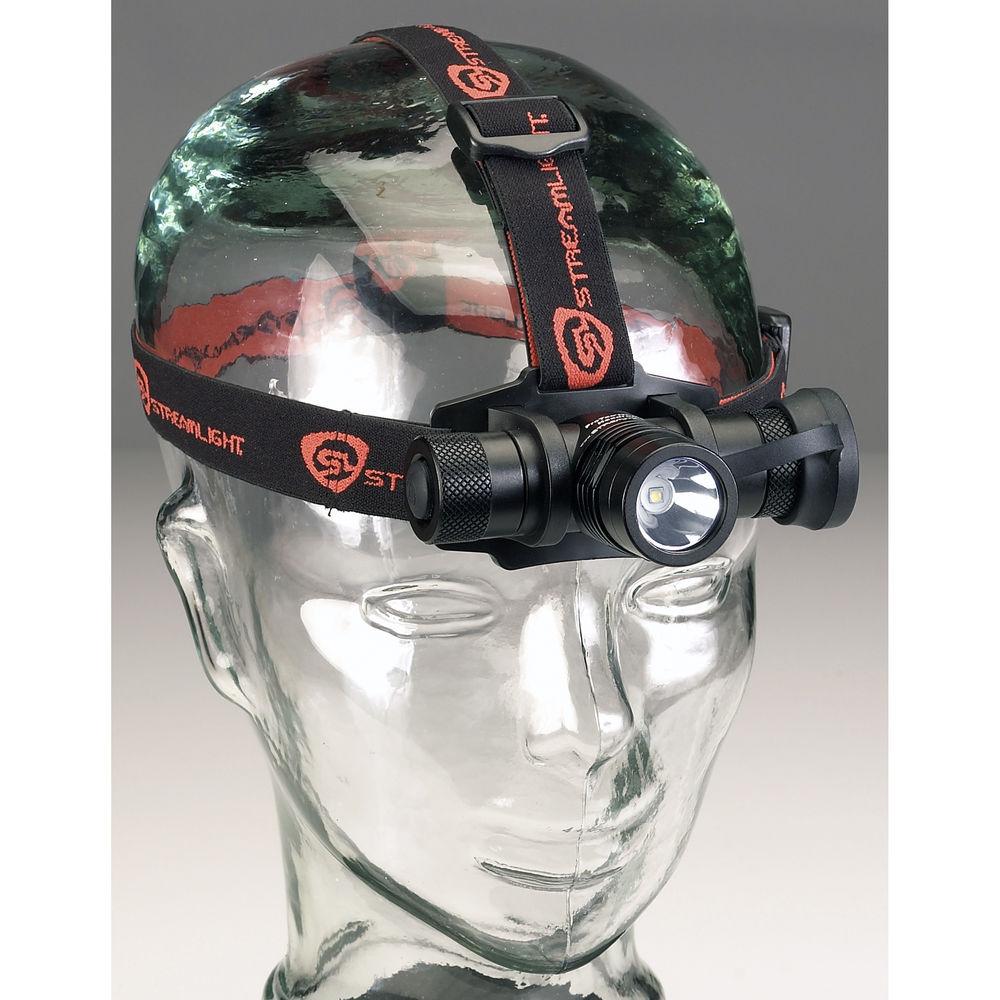

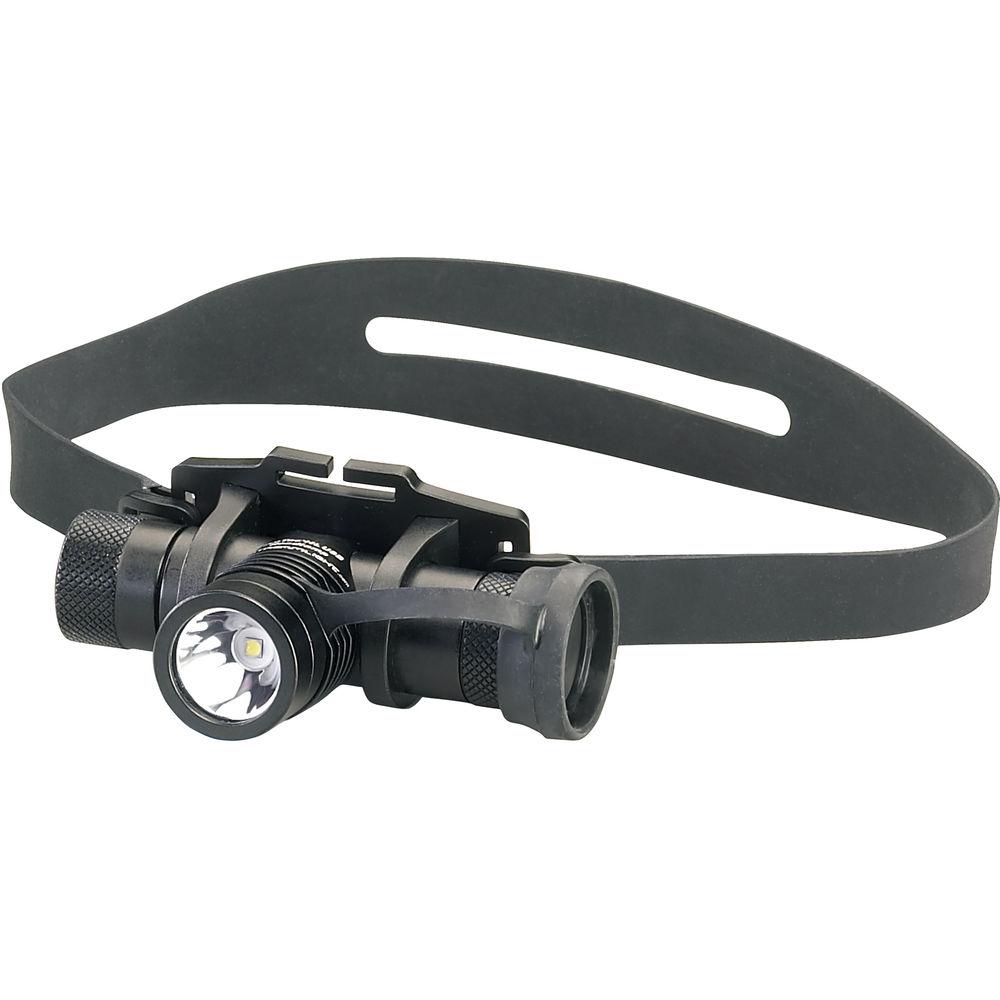

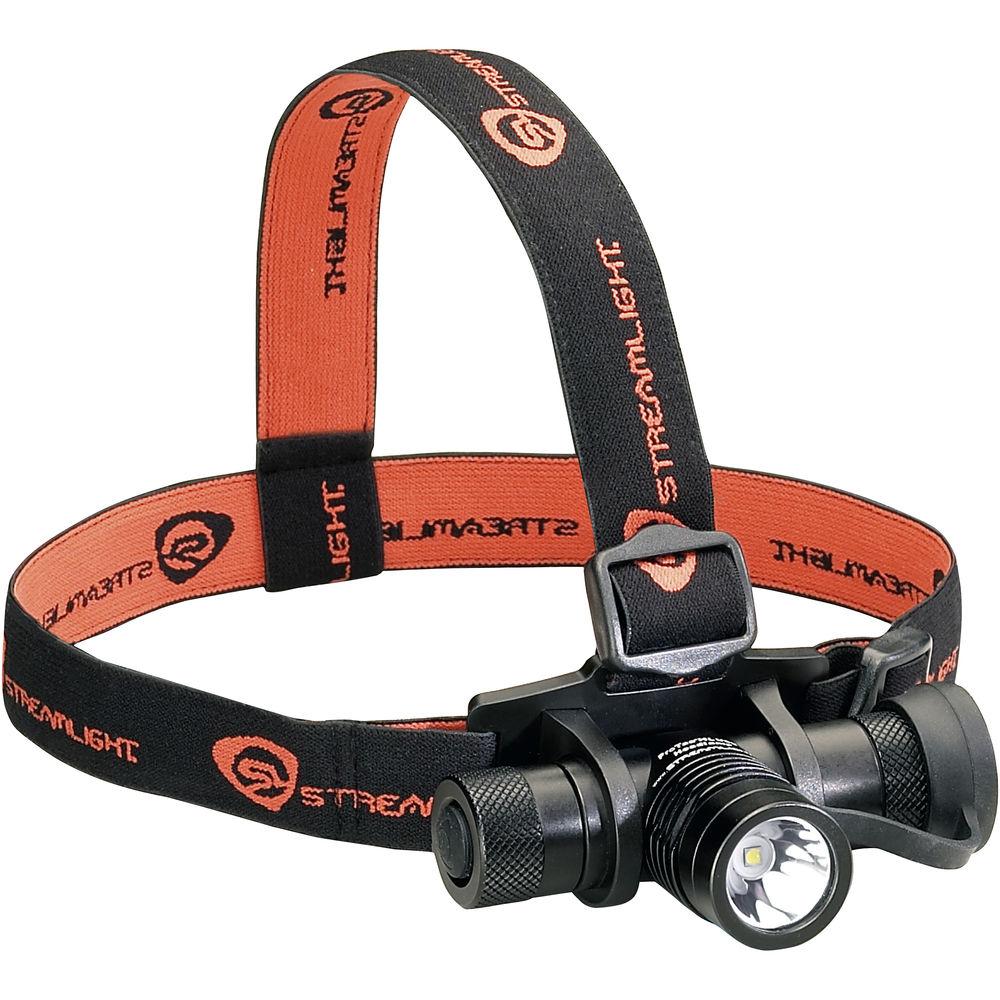

Product description A 1000-lumen maximum output, a sturdy and lightweight aluminum body, and power supply options distinguish the Streamlight ProTac HL Rechargeable Headlamp. Its battery pack recharges inside the light via micro-USB, but the light can also run on one user-supplied 18650 battery. A push-button switch is used to cycle through high, medium, and low brightness levels, and you can select three programs that put the light levels you use most often at your fingertips—high/medium/low, high only, or low/medium/high. Red and green filters are provided for light that won't disrupt night-acclimated vision, and a diffuser filter creates a flood beam for close-up tasks. If you need the spot beam back, simple stow the diffuser filter on the end cap of the light.
The anodized-aluminum housing has an IPX4 water-resistance rating and is impact resistant to 6.6'. Consistent performance is assured by digital output regulation circuitry, which maintains the brightness level throughout the charge. - Light Performance
-
- High: 1000 lumens
- Medium: 400 lumens
- Low: 65 lumens
- Runtime: 1.5, 2.8, and 20 hours, respectively
- TEN-TAP programs: high/medium/low, high only, or low/medium/high
- Switching
-
- Single tailcap push button
- Controls power and cycles through high, medium, and low settings
- Select modes (high/medium/low, high only, low/medium/high)
- Construction Details
-
- Battery pack recharges inside light via micro-USB
- Light can also run on commercially available 18650 battery
- Lightweight, anodized-aluminum housing
- Gasket-sealed glass lens
- IPX4 rated, splashproof
- Water-resistant rubber cover for micro-USB port
- Impact resistant to 6.6'
UPC: 080926613072 In the Box Streamlight ProTac HL Rechargeable Headlamp Rechargeable Li-Ion Battery Pack Micro-USB Charge Cable Elastic Headband Rubber Hardhat Strap Filter Set (Red, Green, Diffuser) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight ProTac HL Rechargeable Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight HL Specs | | | Lumen Output | High: 1000 Lumens
Medium: 400 Lumens
Low: 65 Lumens | | Illumination Source | 1 x LED | | Estimated Runtime | High: 1.5 Hours
Medium: 2.8 Hours
Low: 20 Hours | | Battery Type | 1 x Rechargeable Pack Lithium-Ion or
1 x 18650 | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Water Resistant, IPX4 | | Dimensions | W: 4.0 x H: 3.1" / W: 10.2 x H: 7.9 cm | | Weight | 8.1 oz / 230 g |
