User Manual for Streamlight ProTac HL-X Tactical Flashlight with Two CR123A Batteries Click to enlarge the picture
Contents of the user manual for the Streamlight ProTac HL-X Tactical Flashlight with
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
 |
User manual for the Streamlight ProTac HL-X Tactical Flashlight with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

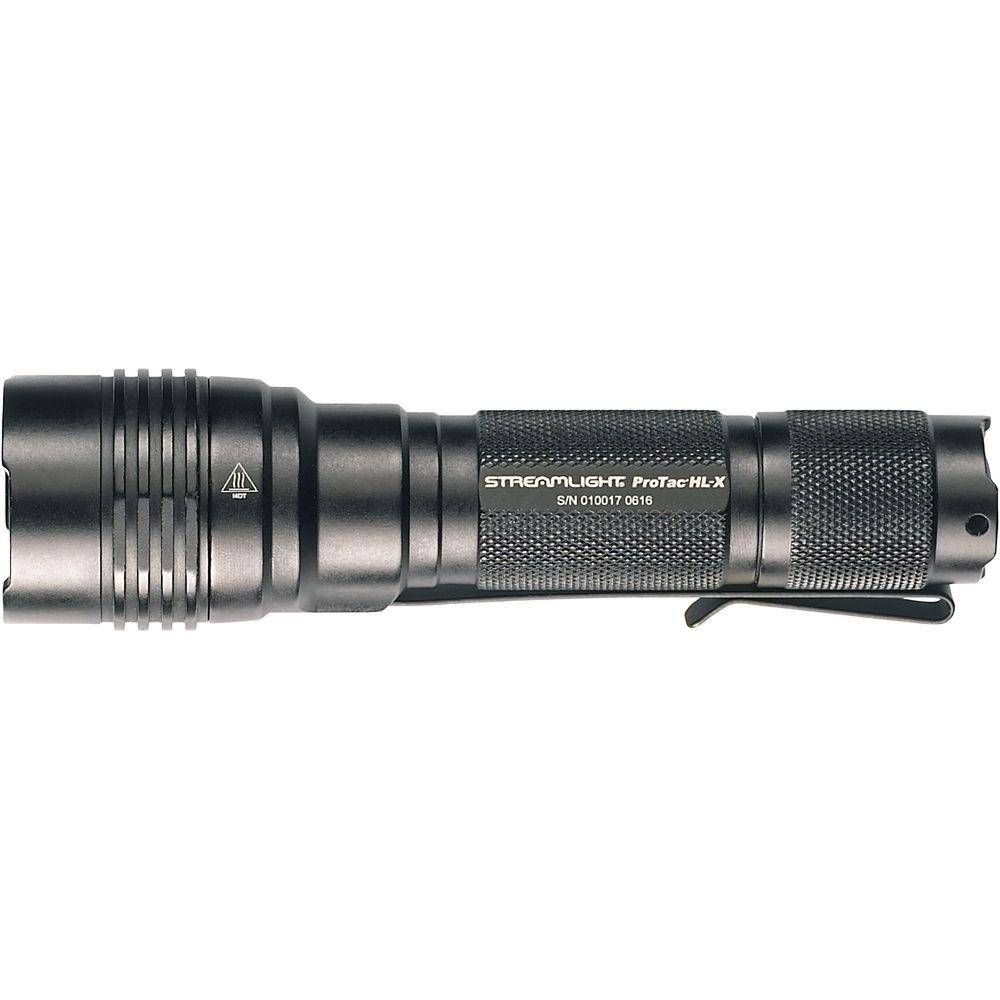

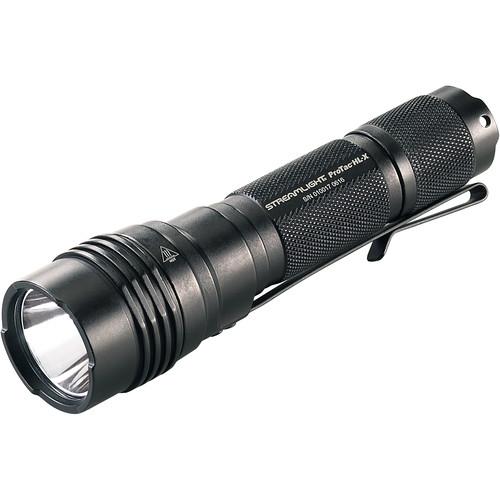

Product description A 1000-lumen maximum output, a sturdy and lightweight aluminum body and options for battery power distinguish the Streamlight ProTac HL-X Tactical Flashlight. The HL-X comes with two CR123A batteries, but can also run on one 18650 cell. A tailcap push-button switch is used to cycle through high, medium and low brightness levels, and a strobe setting for disorienting an adversary or signaling for help. You can select three programs that put the light levels you use most often at your fingertips— high/strobe/low, high only, or low/medium/high.
The knurled anodized-aluminum housing has an IP68 water-resistance rating, submersible and impact resistant to 6.6'. Anti-reflective coating on the gasket-sealed glass lens assures optimal light transmission. - Light Performance
-
- High: 1000 lumens
- Medium: 400 lumens
- Low: 65 lumens
- Runtimes: 1.3/3/20 hours with CR123A batteries, 1.5/3.5/23 hours with 18650 batteries
- Strobe runtime 2.5/3.3 hours
- Switching
-
- Single tailcap push button
- Controls power & cycles through high, medium, low & strobe settings
- Select modes (high/strobe/low, high only, low/medium/high)
- Construction Details
-
- Runs on one supplied 18650 battery or two CR123A cells
- Lightweight, knurled anodized-aluminum housing
- IP68-rated, submersible to 6.6' for 30 minutes
- Impact resistant to 6.6'
- Anti-reflective coated, gasket-sealed glass lens
- Anti-roll design
- Removable pocket clip
- Holster

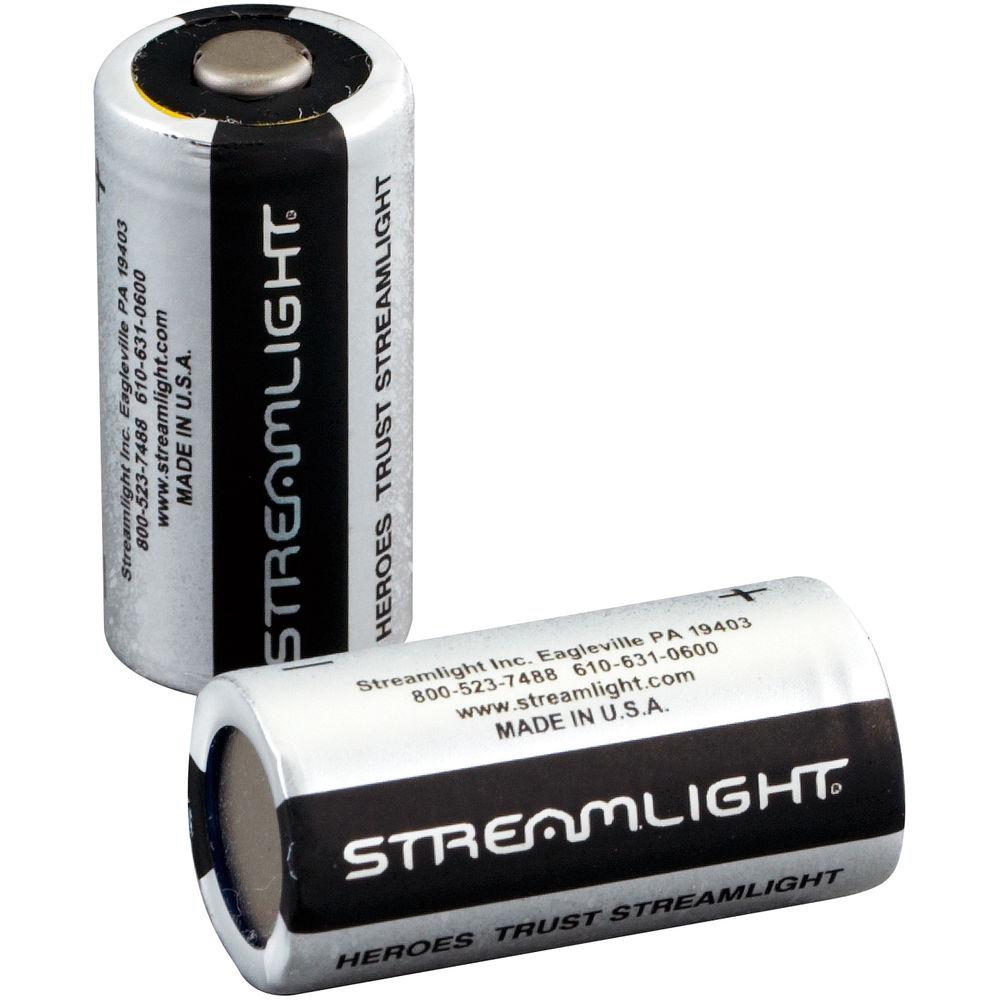

UPC: 080926880658 In the Box Streamlight ProTac HL-X Tactical Flashlight with Two CR123A Batteries 2 x CR123A Batteries Holster Removable Pocket Clip Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight ProTac HL-X Tactical Flashlight with Two CR123A Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight HL-X Specs | | | Lumen Output | High: 1000 Lumens
Medium: 400 Lumens
Low: 65 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 1.3 Hours
Medium: 3 Hours
11.5 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IP68 | | Bezel Diameter | 1.4" / 3.5 cm | | Dimensions |
