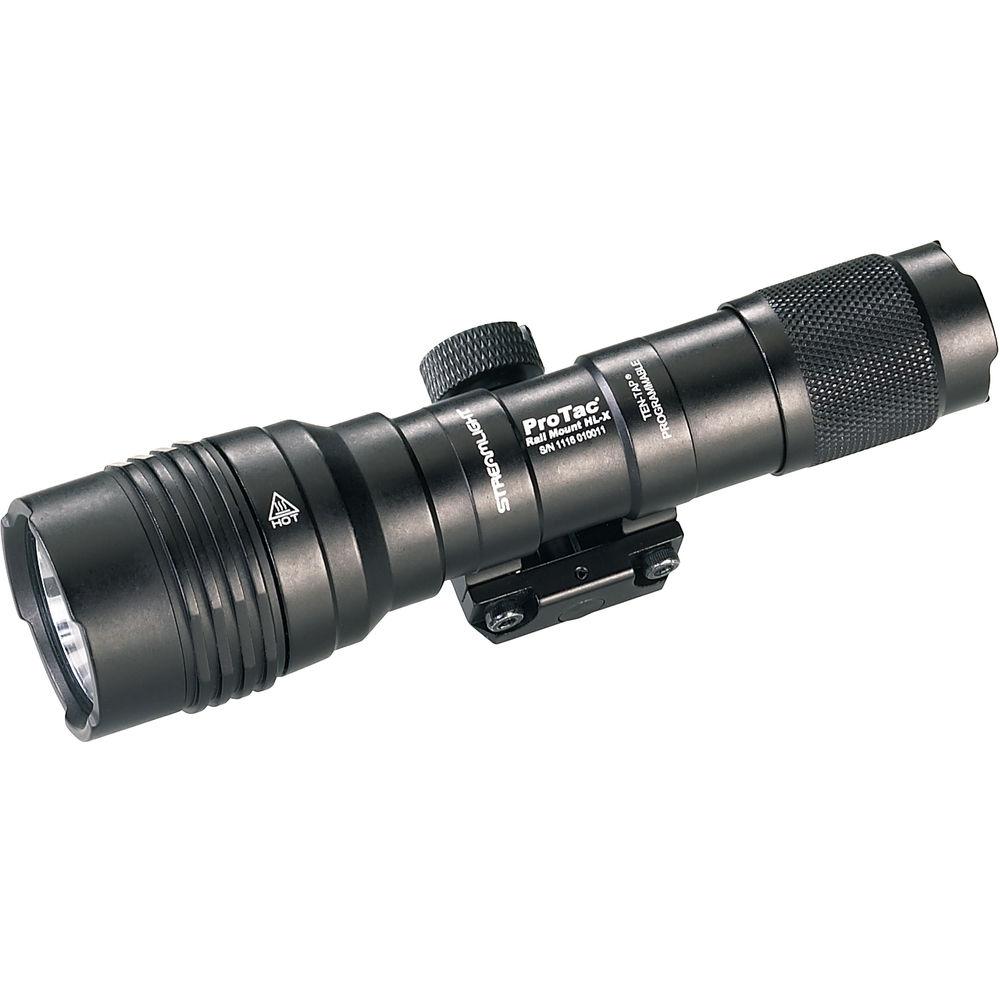

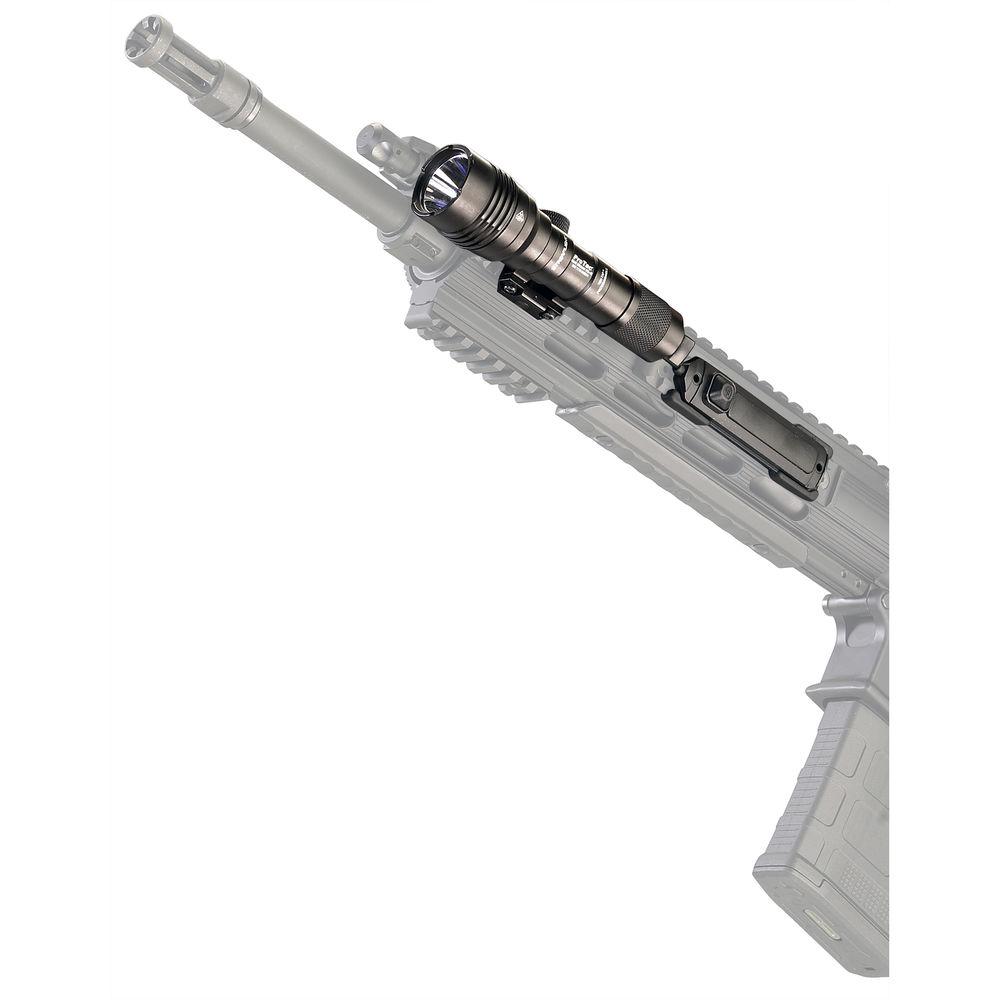

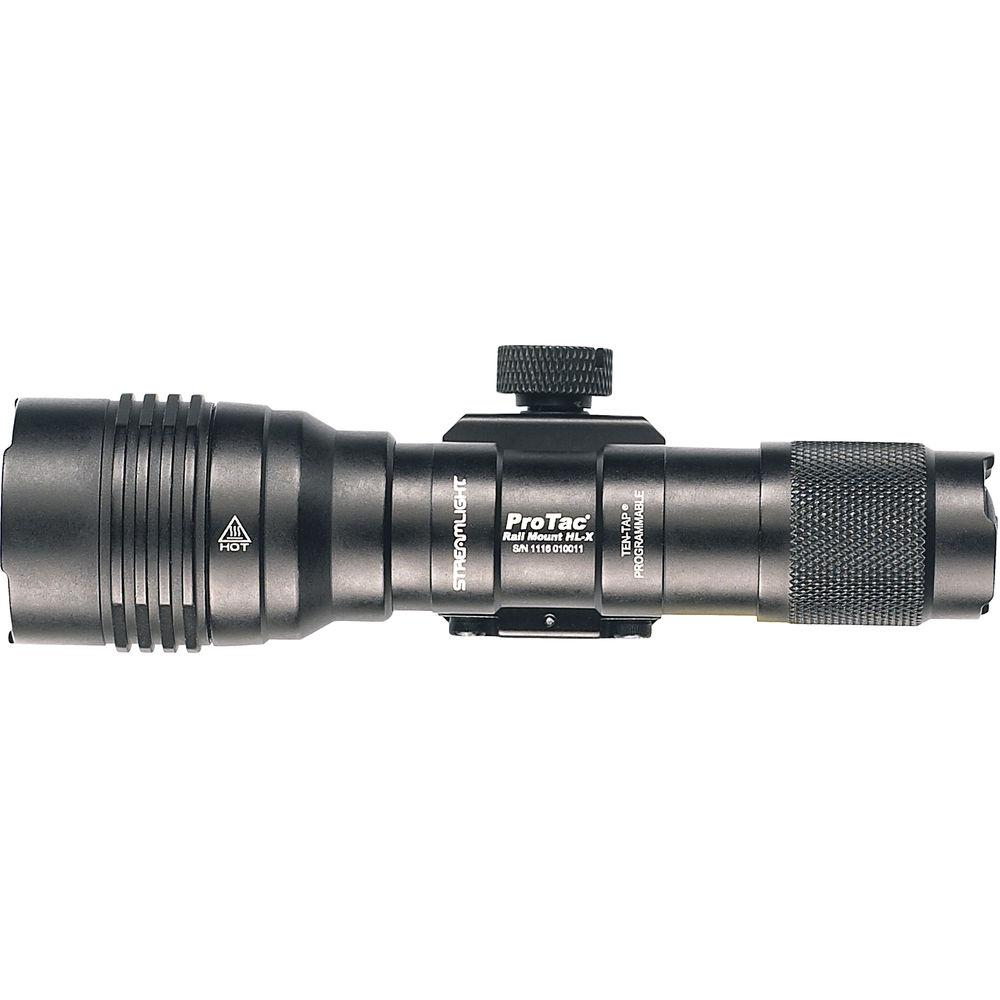

Product description Equipped with an integrated Picatinny rail mount and a remote pressure switch, the ProTac Rail Mount HL-X dual-fuel weapon light for long guns gives you options for battery power and a bright maximum output for tactical situations. The light can run on two CR123A batteries (included) or one 18650 cell, producing brightness levels of 1000 and 60 lumens, respectively. Install the tailcap push-button switch for IPX7 water resistance, or select the remote switch with IPX4-level protection if hand position is a higher priority. The strobe setting can be used to disorient an adversary, and you can choose from three modes to suit your needs—high/strobe, high only, and low/high.
Constructed of anodized aluminum with a tempered glass lens, the housing is strong but lightweight at just 4.5 ounces. The ProTac Rail Mount HL-X comes with remote retaining clips, double-sided tape, and zip ties. - Light Performance
-
- High: 1000 lumens
- Low: 60 lumens
- Runtimes: 1.3-20 hours with two CR123A batteries, 1.5-22 hours with 18650 battery
- Strobe setting for disorienting an adversary or emergency signaling

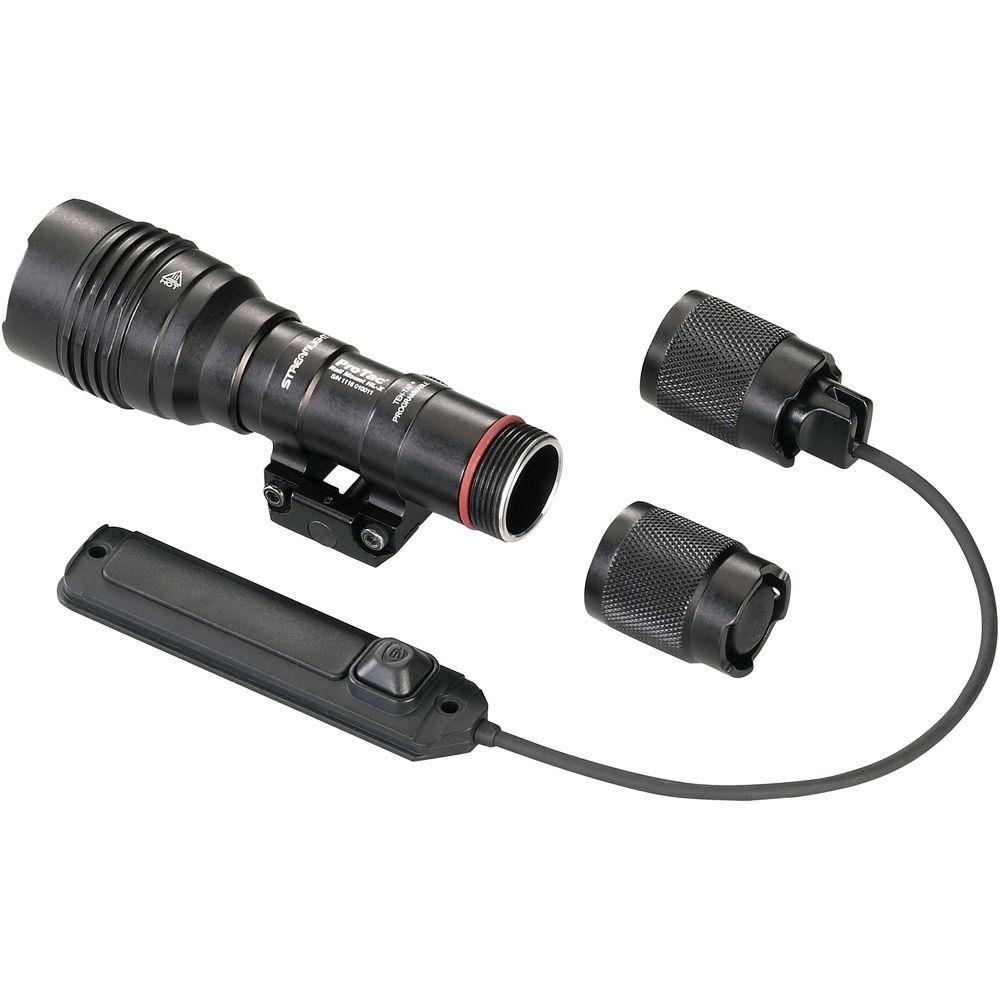

- Switching
-
- Single tailcap push-button

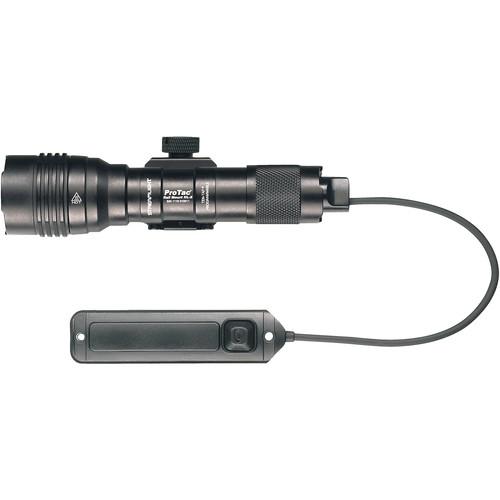

- Remote pressure switch with momentary and constant-on options
- Controls power & cycles through high, low & strobe settings
- Select modes (high/strobe, high only, low/high)
- Construction Details
-
- Runs on two included CR123A batteries or one 18650
- Lightweight, anodized aluminum housing
- IPX4-rated with remote switch, IPX7-rated with tailcap switch
- Tempered glass lens
- Integrated Picatinny rail mount
- Power regulation circuitry provides maximum light output throughout battery life
- Wide operating temperature range -40 to 120°F
- Remote retaining clips, double-sided tape, and zip ties

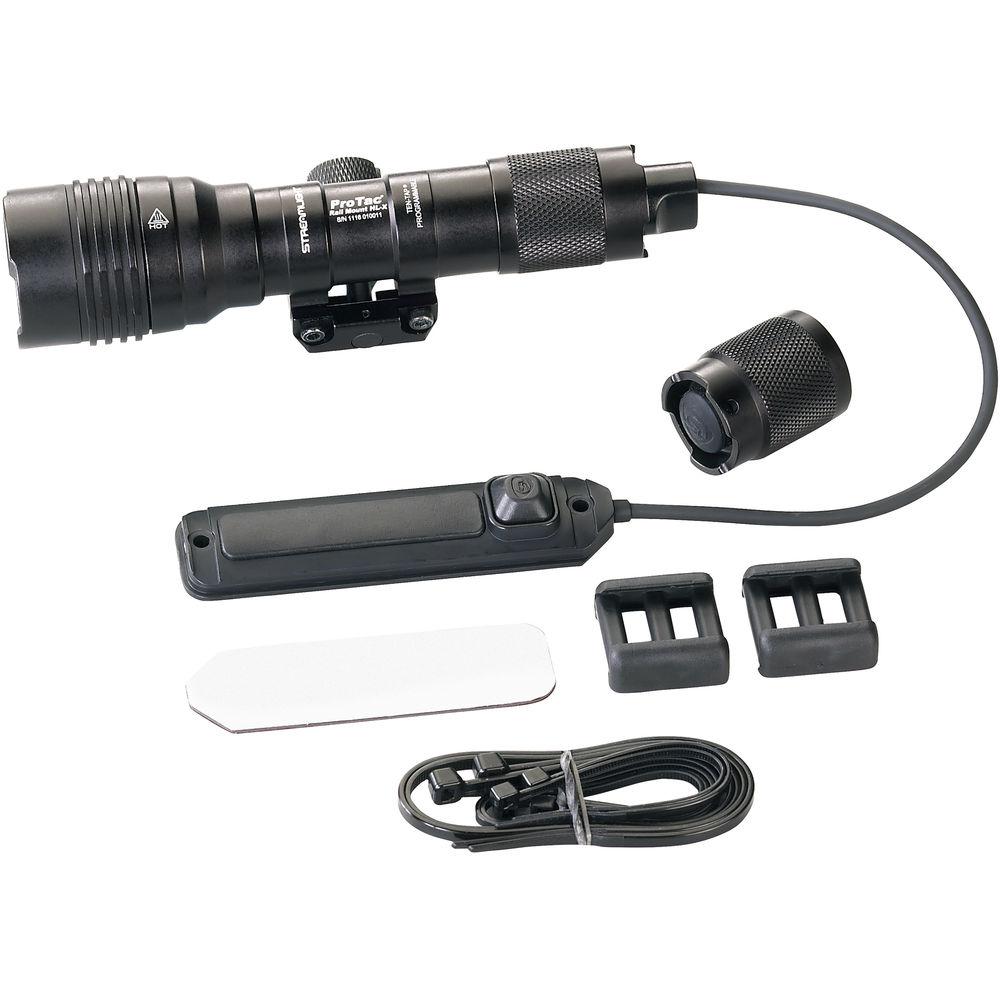

UPC: 080926880665 In the Box Streamlight ProTac Rail Mount HL-X Dual-Fuel Weapon Light 2 x CR123A Battery Tailcap Switch Remote Pressure Switch Set of Remote Clips, Double-Sided Tape & Zip Ties Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight ProTac Rail Mount HL-X Dual-Fuel Weapon Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Rail Mount HL-X Specs | Lamp Type | LED | | Output | High: 1000 lumens
Low: 60 lumens | | Battery / Runtime | 2 x CR123A / 1.3-20.0 h
1 x 18650 / 1.5-22.0 h
Strobe: 2.5-3.3 h | | Construction | Anodized aluminum housing, tempered glass lens | | Waterproofing | IPX7 with tailcap switch installed
IPX4 with remote switch installed | | Dimensions | 5.4 x 1.5" / 13.8 x 3.7 cm
Head Diameter: 1.7" / 4.4 cm | | Weight | With 2 x CR123A: 6.4 oz / 181 g
With 1 x 18650: 6.9 oz / 196 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.5 x 4.0 x 2.6" |
