User Manual for Streamlight Rechargeable Portable Scene LED Light Click to enlarge the picture
Contents of the user manual for the Streamlight Rechargeable Portable Scene LED Light
- Product category: Outdoor Area Lighting Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Outdoor Area Lighting
 |
User manual for the Streamlight Rechargeable Portable Scene LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

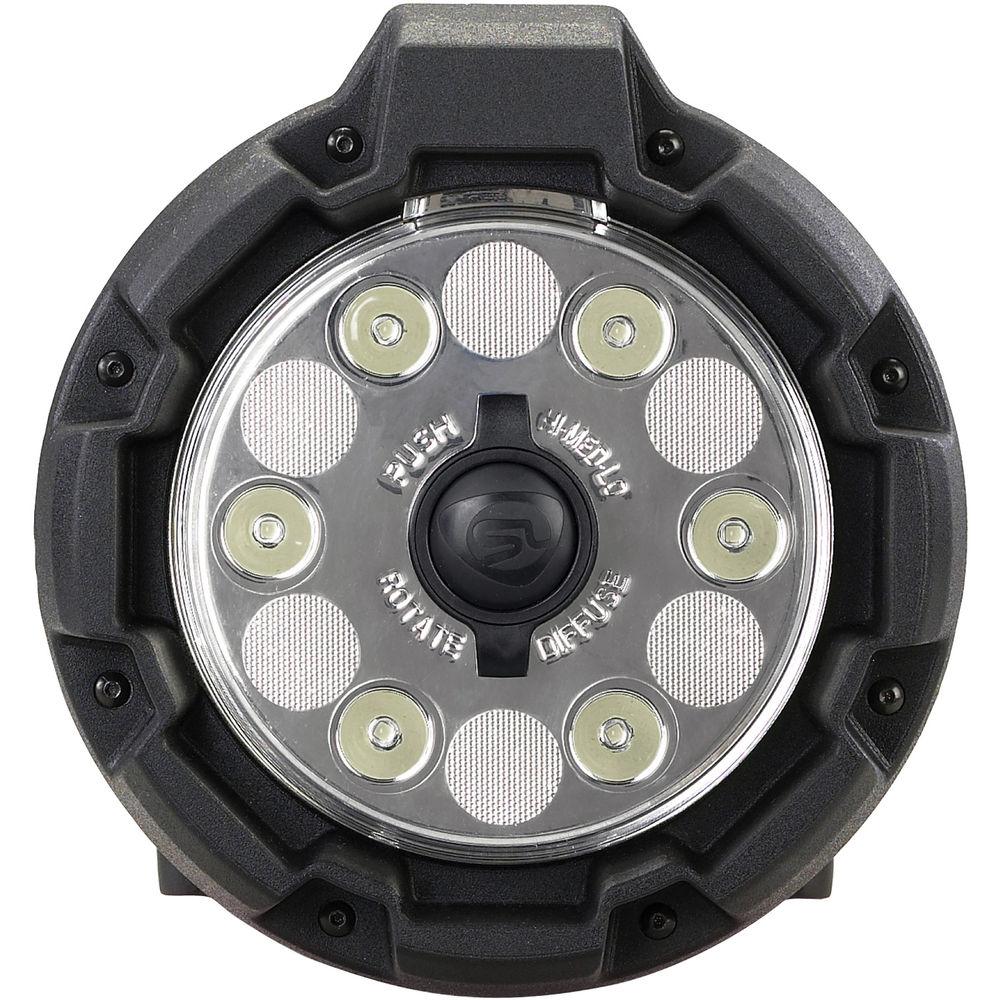

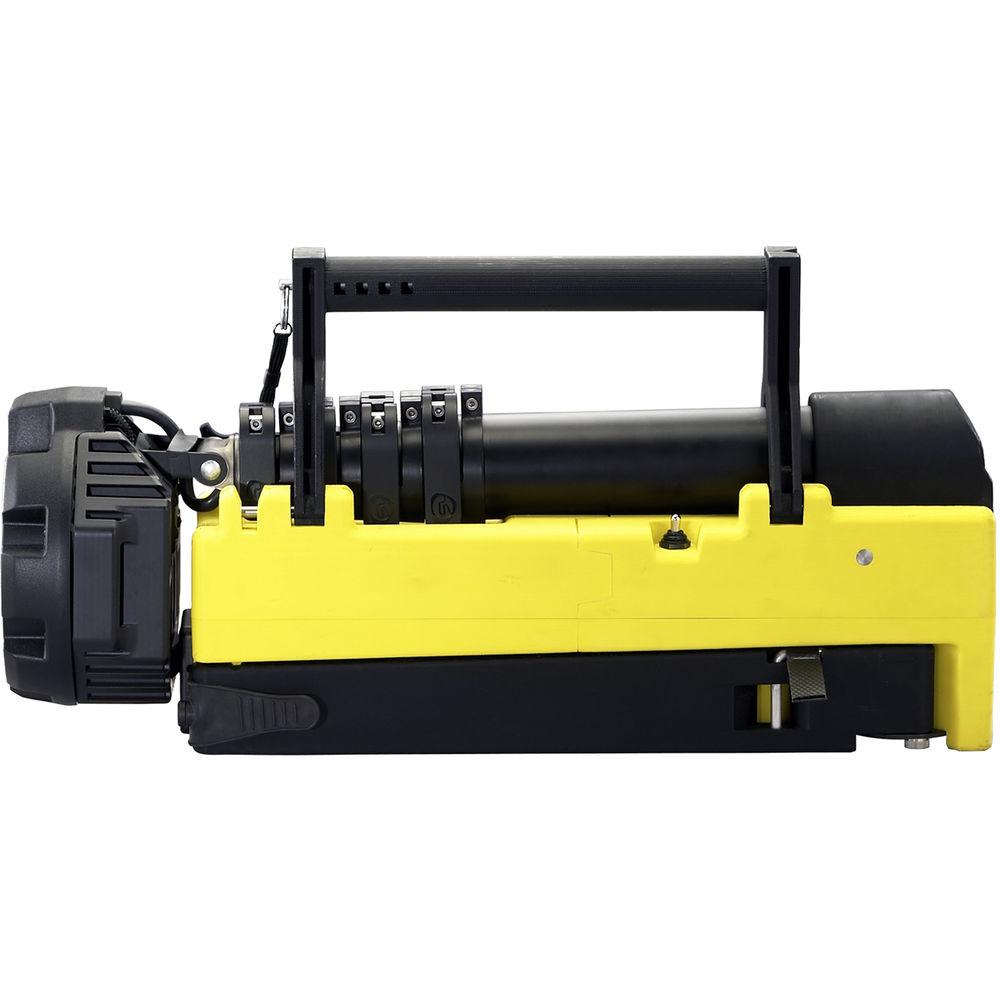

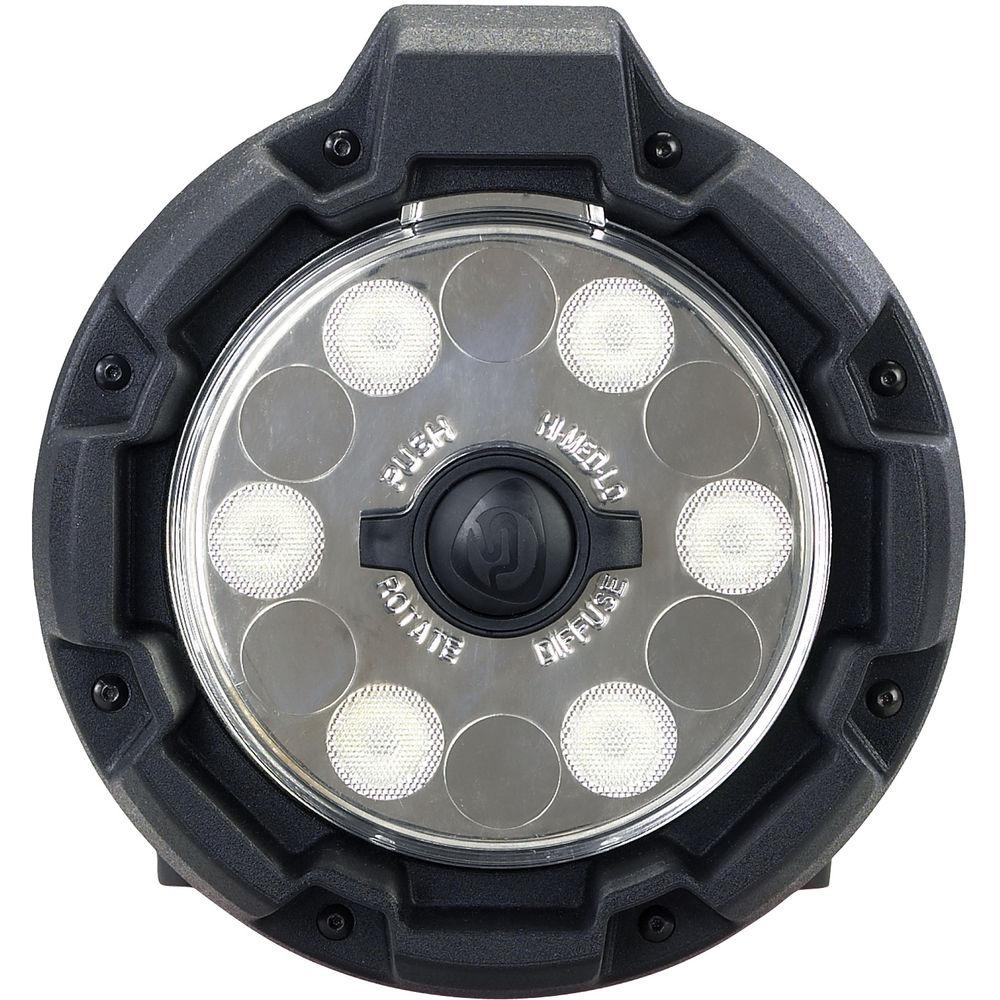

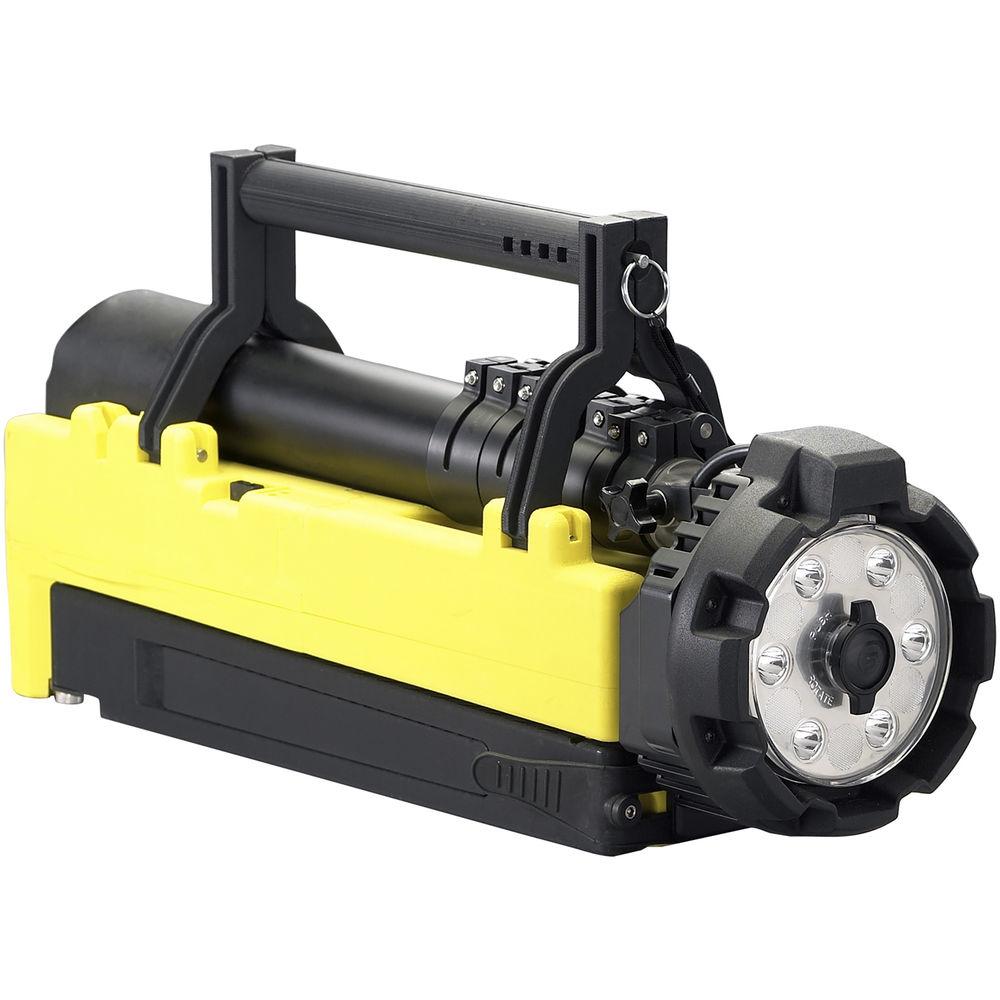

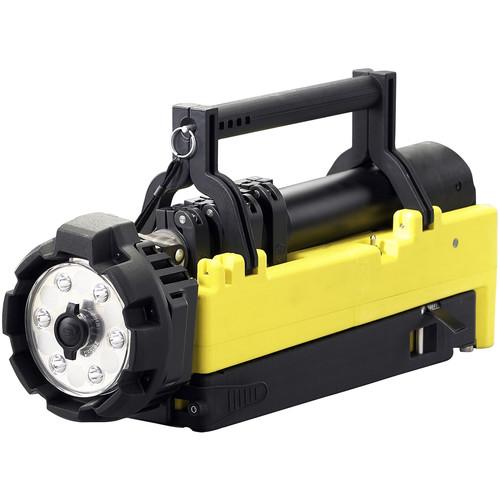

Product description Whether you need to work in a remote location setting up a triage center or command post, or performing a rescue, the Rechargeable Portable Scene LED Light in yellow from Streamlight offers impressive portability and easy deployment while chasing away shadows so you can get the job done.Six high-intensity LEDs produce an impressive choice of output settings: From a low of 1300 lumens that is bright but maximizes battery charge, to a darkness-piercing 5300-lumen high output. A push button located directly on the light head lets you quickly choose the brightness level, while a unique rotating diffuser lens allows you to switch the beam configuration from a wide floodlight to a narrow spotlight with a simple rotation.The light has a 5-stage mast that unfolds from the body and can be extended to any height up to six feet, allowing you to have the light close to where you're working or up high for maximum coverage. Once raised to the desired height, the head can swivel a full 360° and tilt up to 90° for precise beam placement exactly where you need it. Two legs fold out from the side of the housing to improve stability on rough or uneven ground.Made to withstand the harshest conditions, the housing is made of an impact-resistant polycarbonate thermoplastic in high-visibility yellow so no one will trip over it. The housing is O-ring sealed to be IP67-rated, making it dustproof as well as waterproof and submersible to over three feet for up to 30 minutes. The mast is engineered to withstand sustained winds up to 40 mph. An integrated carry handle locks the light and mast securely in place until you need to deploy them, and a removable shoulder strap is also included as a second carrying option.Compact for easy carrying into the field or deep underground, the Portable Scene Light weighs 25 pounds and measures just 22" long when fully collapsed, making it easy to bring the light where you need it and set it up fast when time is short. - Performance
-
- Low 1300-lumen output maximizes battery runtime
- 2500-lumen medium output balances brightness with runtime
- Powerful darkness-piercing 5300-lumen high output
- Six high-intensity LEDs
- Selectable diffuser settings enables user to adjust the beam depending on the job or their preference
- Choose the wide flood beam to light a large area, or a tight spotlight optimized for a far throw
- Digitally-regulated output maintains a consistent beam intensity throughout the battery charge
- Use and Handling
-
- Head swivels 360° side to side and tilts forward and back up to 90° to enable a precise beam placement

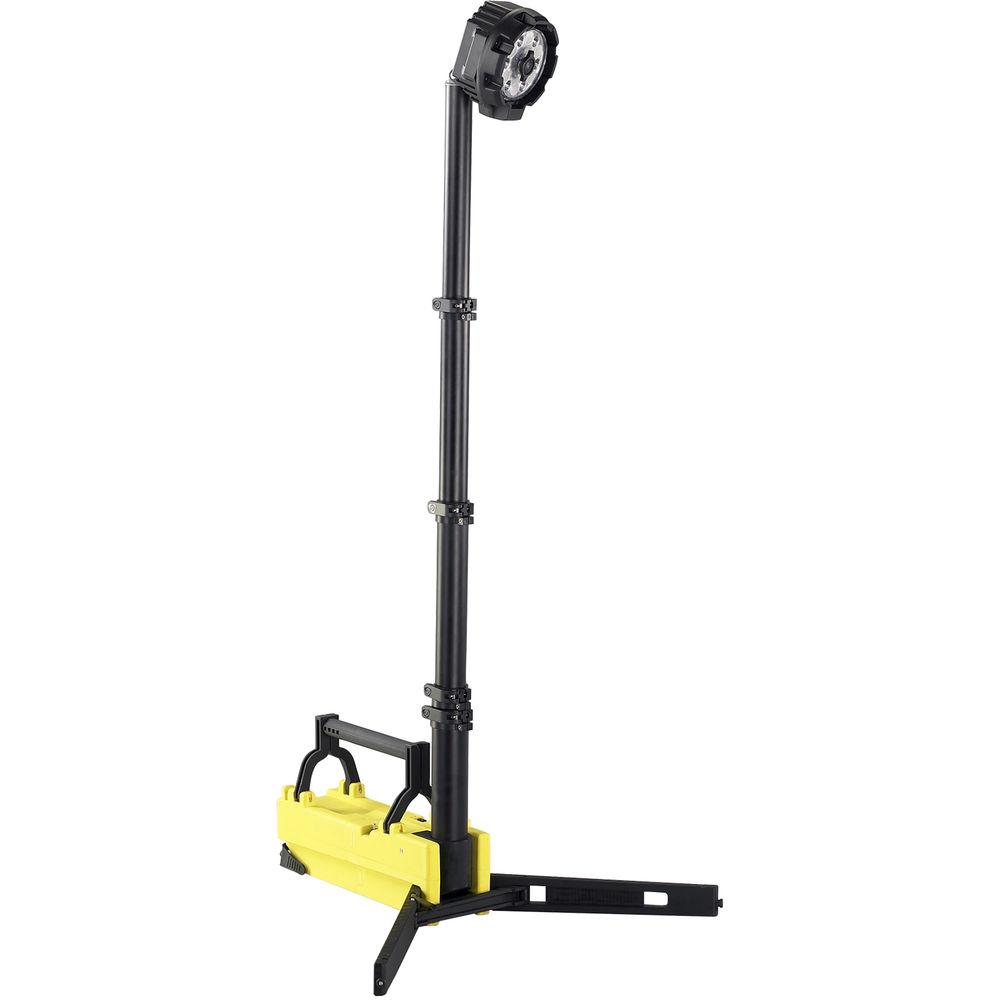

- 5-section collapsible mast extends to a maximum height of 6 feet to place light high above the ground
- Power cord for head is located inside the mast to prevent snags
- Designed to withstand 40 mph sustained winds with mast fully extended
- Foldout stabilization legs help to maintain a sure footing on rough or uneven ground
- Switching
-
- Push button in center of the lens cycles through brightness settings
- Toggle switch on the main housing allows you to run the light from the internal batteries or from external power source for continuous operation
- Construction
-
- High-visibility yellow color
- Impact-resistant polycarbonate thermoplastic housing
- IP67-rated to be dust and waterproof to a depth of 3.3' for up to 30 minutes
- Compact design is just 22" long when fully collapsed for easy transport and storage
- Batteries provide weight for additional stability
- Integrated carry handle with removable shoulder strap
- Power & Charging
-
- Runs on two installed, rechargeable, sealed, lead acid batteries
- Includes AC and 10' DC power cords
- Run light from power source while simultaneously charging batteries
- Charge to 90% in ten hours
- Continuous trickle-charge maximizes battery capacity and ensures light is always ready
UPC: 080926456709 In the Box Streamlight Rechargeable Portable Scene LED Light (Yellow) Shoulder Strap 12 VDC Power Cord 120 VAC Power Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Rechargeable Portable Scene LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Portable Scene Light Specs | Output Range | Low: 1300 Lumens
Medium: 2500 Lumens
High: 5300 Lumens | | Illumination Source | 6 x High-Intensity White LEDs | | Runtime | Low: 18 h
Med: 9 h
High: 4.0 h
Unlimited Runtime When Using Included Power Cords | | Battery | 2 x Rechargeable 12 V, 7.2 Ah Sealed Lead Acid | | Charge Time | 10 h, Max | | Material of Construction | Polycarbonate Thermoplastic | | Waterproofing | IP67 Rated; Dust and Waterproof to 1 Meter for 30 Minutes | | Dimensions | Collapsed: 22" x 6.5" x 11" / 55.9 x 16.5 x 27.9 cm
Mast Height: 72" / 183 cm (fully extended) | | Weight | 25 lb / 11.3 kg |
