User Manual for Streamlight Sidewinder Compact II Military Model Hands-Free Light Click to enlarge the picture
Contents of the user manual for the Streamlight Sidewinder Compact II Military Model
- Product category: Headlamps Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Headlamps
|
User manual for the Streamlight Sidewinder Compact II Military Model contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

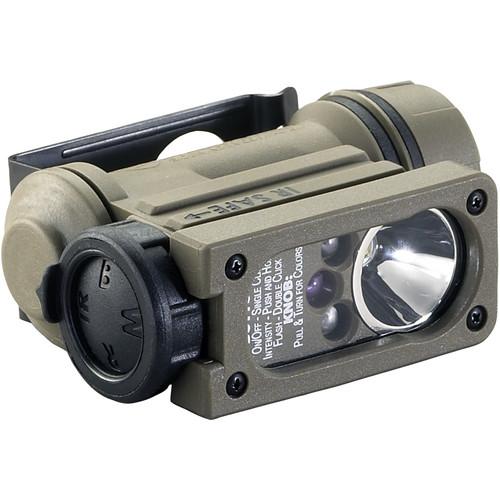

Product description Clip the Streamlight Sidewinder Compact II Military Model Hands-Free Light to your belt, clothing, helmet, etc., and direct white, red, blue, and infrared light wherever you need it. This sturdy O-ring-sealed nylon housing tilts 185° for positional flexibility and can run on CR123A or AA batteries (lithium or alkaline) for versatility. Select the light color you need by means of a compound, pull-up rotary dial and push-button rubber dome that's easy to handle, even when wearing gloves. All the light colors can be set to shine at 100%, 45%, 25%, or 10% of their peak output, as well as in peak-output strobe mode. A tactile polarity indicator helps you make sure you put batteries in the right way, even in the dark, so you won't damage your light. The housing is IPX7 rated, submersible to 3.3, and impact resistant to 9.8'. The gasket-sealed lens is made of break-resistant polycarbonate with an anti-scratch coating. This item comes in clamshell packaging. - Light Performance
-
- White, red, blue, and infrared LEDs
- All colors can be set to 100%, 45%, 25% or 10% of peak output, or to peak-output strobe
- White C4 LED
- Switching
-
- Compound, pull-up rotary dial and push-button rubber dome
- Push button for on/off and brightness level
- Twist dial to select color
- Tactile indicator for IR LED
- Construction Details
-
- O-ring-sealed nylon housing
- Durable polycarbonate lens with anti-scratch coating
- Belt/clothing clip
- Head tilts 185°
- Impact resistant to 9.8'
- IPX7-rated water resistant, submersible to 3.3'
- E-mount and elastic head strap
- Tactile polarity indicators for battery replacement in the dark
- Cord attachment holes in battery compartment cover capable of supporting 25 lb load
- Runs on one CR123A or AA battery
UPC: 080926145139 In the Box Streamlight Sidewinder Compact II Military Model Hands-Free Light (White, Red, Blue, Infrared LEDs; Clamshell Packaging) CR123A Battery Elastic Head Strap E-Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Sidewinder Compact II Military Model Hands-Free Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Compact II Specs | | | Lumen Output | CR123A:
55 Lumens
Red: 1.5 Lumens
Blue: 1.8 Lumens | | Illumination Source | 1 x LED | | Estimated Runtime | CR123A
High (White): 6 Hours
Low (White): 70 Hours
Strobe (White): 10 Hours
High (Red): 16 Hours
Low (Red): 100 Hours
Strobe (Red): 24 Hours
High (Blue): 12 Hours
Low (Blue): 100 Hours
Strobe (Blue): 18 Hours
High (IR): 16 Hours
Low (IR): 100 Hours
Strobe (IR): 24 Hours | | Battery Type | 1 x CR123A or
1 x AA Lithium or
1 x AA Alkaline | | | | Lens Material | Polycarbonate | | Material of Construction | Nylon | | Water Resistance | Waterproof to 3.3' / 1 m, IPX7 | | Dimensions | W: 3.0 x H: 2.0 x D: 1.1" / W: 7.6 x H: 5.2 x D: 2.7 cm | | Weight | 2.4 oz / 68 g |
