User Manual for Streamlight Sidewinder Hands-Free Rescue Light with MOLLE Retainer & Paracord Click to enlarge the picture
Contents of the user manual for the Streamlight Sidewinder Hands-Free Rescue Light with
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
|
User manual for the Streamlight Sidewinder Hands-Free Rescue Light with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

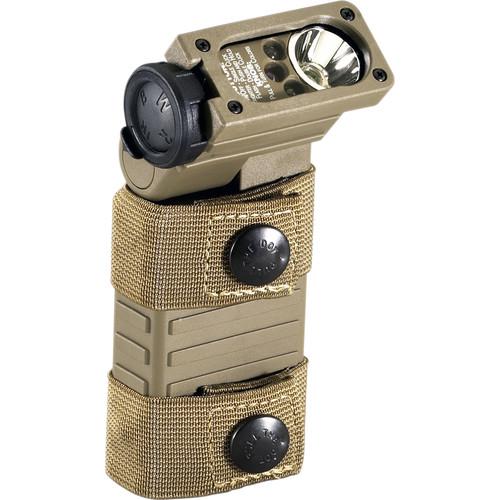

Product description Clip the Streamlight Sidewinder Rescue Hands-Free Light to your belt, clothing, etc., and have a white, green, blue, or infrared emergency beacon ready to signal rescuers. This study O-ring-sealed nylon housing tilts 185° for positional flexibility and comes with a diffuser for omni-directional light in any color. Select the color by means of a compound, pull-up rotary dial and push-button switch (the IR setting has a tactile indicator so you can find and activate it in the dark.) All the light colors can be set to shine at Low, Medium 1, Medium 2, or High, as well as flash in 50 or 120 BPM strobe modes.
A tethered battery compartment door makes it easier to load fresh cells in the dark, and a tactile polarity indicator makes sure you don't put them in the wrong way and damage your light. The housing is IPX7-rated, submersible to 3.3', and impact resistant to 9.8'. The gasket-sealed lens is made of break-resistant polycarbonate with an anti-scratch coating. - Light Performance
-
- White, green, blue, and infrared LEDs
- All colors can be set to Low, Medium 1, Medium 2, High or Strobe
- White C4 LED
- Diffuser for omni-directional light
- Switching
-
- Compound, pull-up rotary dial and push-button switch
- Push button for on/off and brightness level
- Twist dial to select color
- Tactile indicator for IR LED
- Flash rate: 120 or 50 BPM
- Construction Details
-
- O-ring-sealed nylon housing
- Belt/clothing clip
- Aluminum plate for hook-and-loop patch
- Head tilts 185°
- Impact resistant to 9.8'
- IPX7-rated water resistant, submersible to 3.3'
- Tethered battery compartment
- Tactile polarity indicators for battery replacement in the dark
- Cord attachment holes in battery compartment cover capable of supporting 25 lb load
- Runs on two included AA batteries
UPC: 080926140691 In the Box Streamlight Sidewinder Hands-Free Rescue Light with MOLLE Retainer & Paracord (Clamshell Packaging) 2 x AA Alkaline Batteries Helmet Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Sidewinder Hands-Free Rescue Light with MOLLE Retainer & Paracord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Rescue Specs | | | Lumen Output | 55 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High (White): 5.5 Hours
Low (White): 100 Hours
Strobe (White): 10 Hours
High (Green): 16 Hours
Low (Green): 150 Hours
Strobe (Green): 30 Hours
High (Blue): 16 Hours
Low (Blue): 150 Hours
Strobe (Blue): 30 Hours
High (IR): 24 Hours
Low (IR): 200 Hours
Strobe (IR): 40 Hours | | Battery Type | 2 x AA | | | | Material of Construction | Plastic | | Water Resistance | Waterproof, IPX7 | | Dimensions | H: 4.7 x W: 2.3 x L: 1.1" / H: 11.9 x W: 5.0 x L: 2.7 cm | | Weight | 5 oz / 142 g |
