User Manual for Streamlight Stinger HPL Rechargeable Flashlight Click to enlarge the picture
Contents of the user manual for the Streamlight Stinger HPL Rechargeable Flashlight
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
 |
User manual for the Streamlight Stinger HPL Rechargeable Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

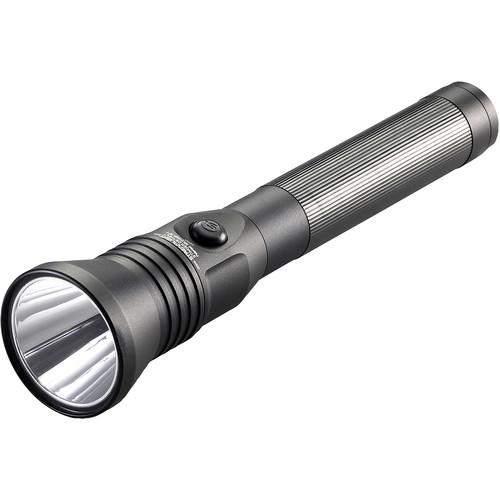

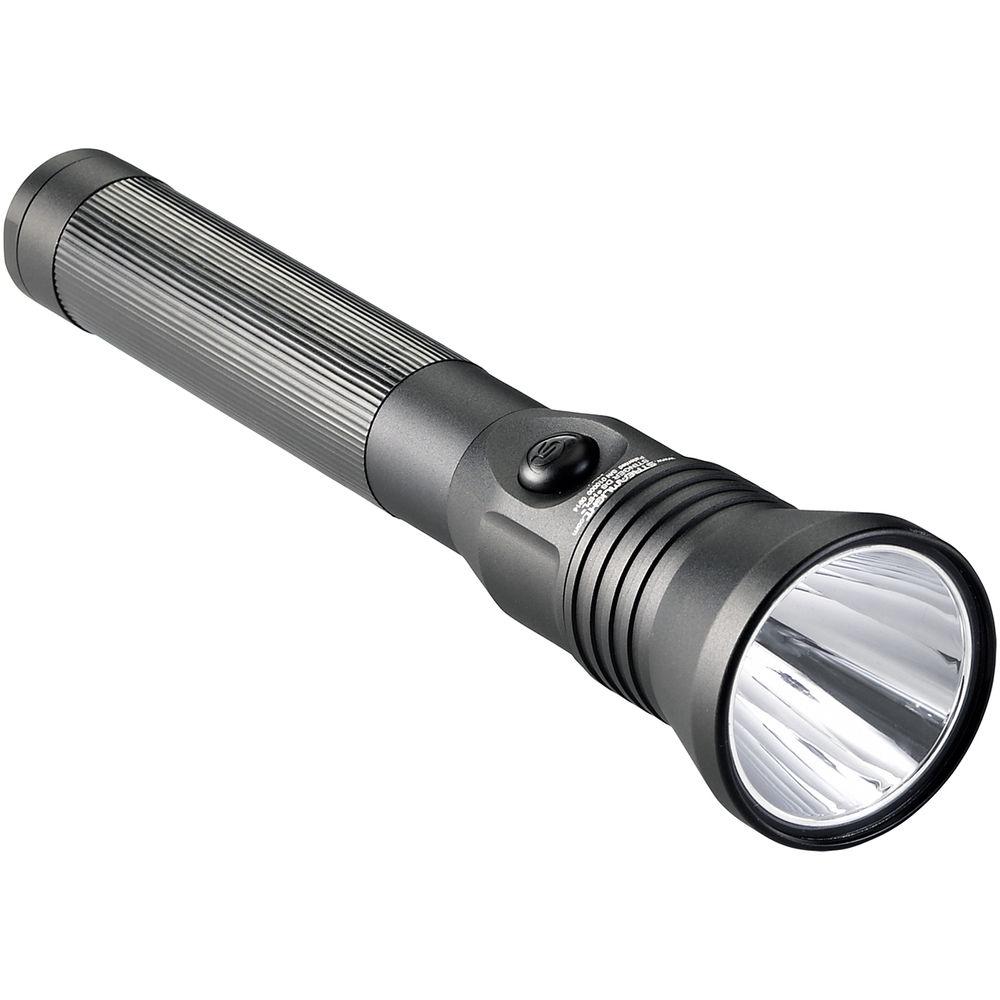

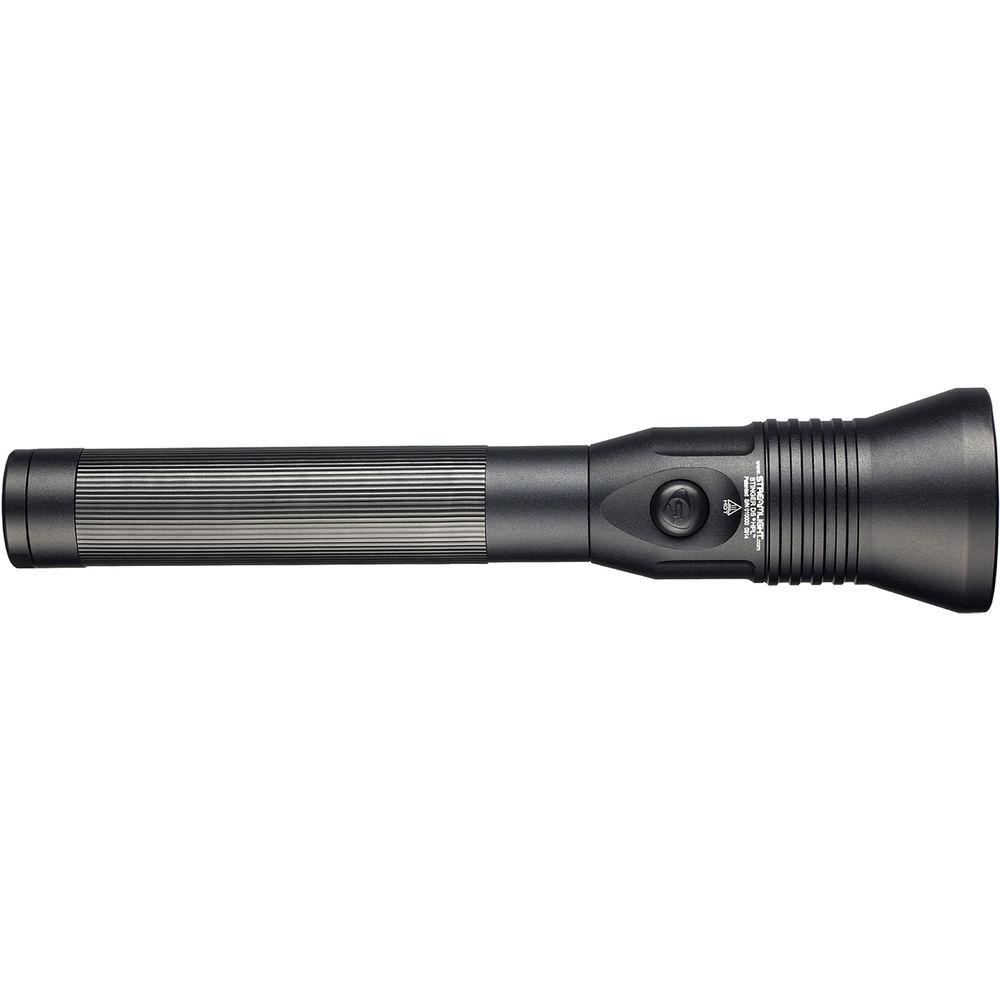

Product description Three powerful output levels, an emergency strobe, and a sturdy aluminum housing with a comfortable rubberized grip make the Streamlight Stinger HPL Rechargeable LED Flashlight a solid choice for law enforcement, industrial, and recreational use in demanding circumstances. Its C4 LED delivers 200, 400, and 800 lumens, with runtimes of 5, 2.5, and 1.5 hours, respectively, on a full charge. The head-mounted push-button switch controls on/off, cycles through the settings, and activates the strobe to disorient an attacker or signal for help.
The Stinger HPL's 6000 series machined aluminum housing has a rubberized handle for a secure, comfortable grip. The scratch-resistant polycarbonate lens is O-ring sealed, and the light carries an IPX4 water-resistance rating and an impact-resistance rating of 9.8'. The charger is sold separately. - Light Performance
-
- 200/400/800 lumens
- Power-regulated C4 white LED
- Runtime 5, 2.5, 1.5 hours, respectively
- Strobe runtime: 3 hours
- Deep-dish parabolic reflector
- Switching
-
- Location: head
- Type: push button
- Click for high, medium, low, and strobe
- Momentary- and constant-on operation
- Construction Details
-
- Machined aluminum housing with rubberized grip
- Scratch-resistant polycarbonate lens
- IPX4 water resistant
- Impact resistant to 3.3'
UPC: 080926759800 In the Box Streamlight Stinger HPL Rechargeable Flashlight 3.6 VDC Sub-C NiMH Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Stinger HPL Rechargeable Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Stinger HPL Specs | | | Lumen Output | High: 800 Lumens
Medium: 400 Lumens
Low: 200 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1.5 Hours
Medium: 2.5 Hours
Low: 5 Hours
Strobe: 3 Hours | | Battery Type | 1 x Sub-C NiMH | | Internal Battery Capacity | 2600 mAh | | Output Voltage | 3.6 VDC | | | | Lens Material | Polycarbonate | | Material of Construction | Aluminum | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 9.8' / 3.0 m | | Bezel Diameter | 2.2" / 55.9 mm | | Dimensions |
