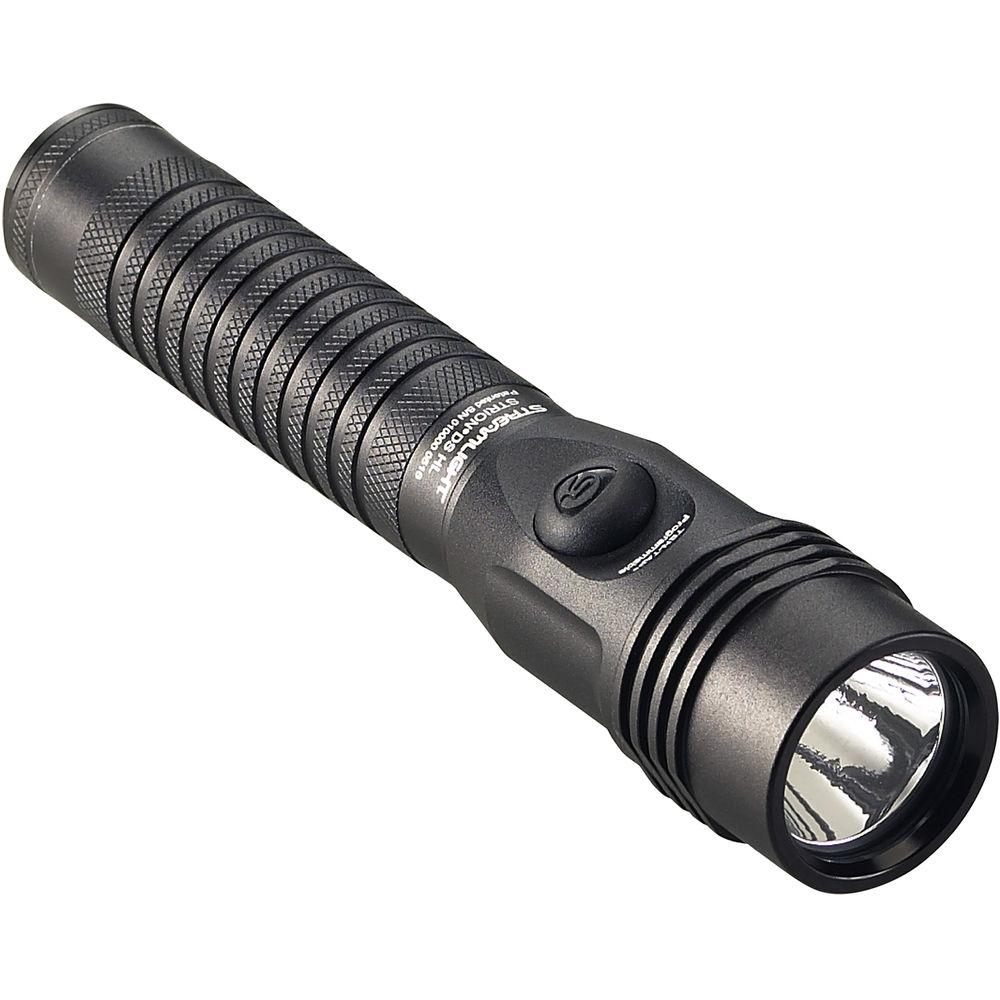

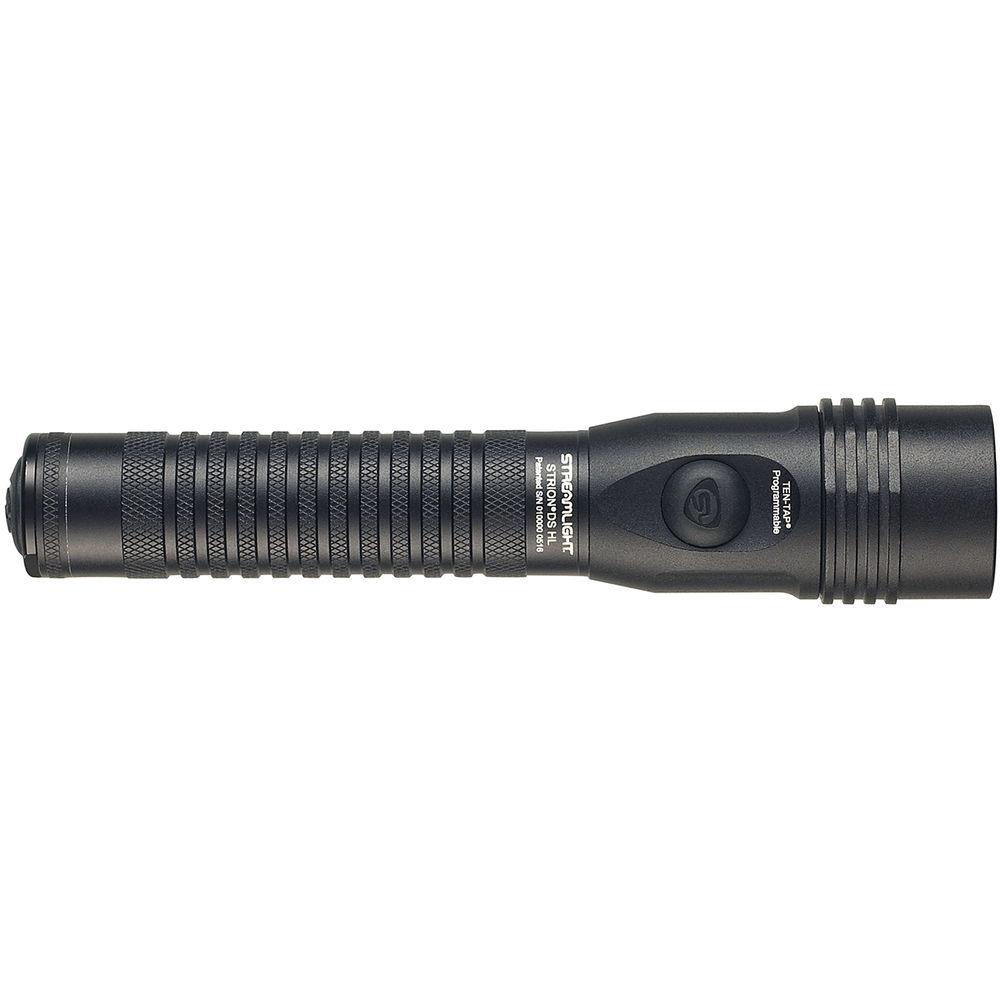

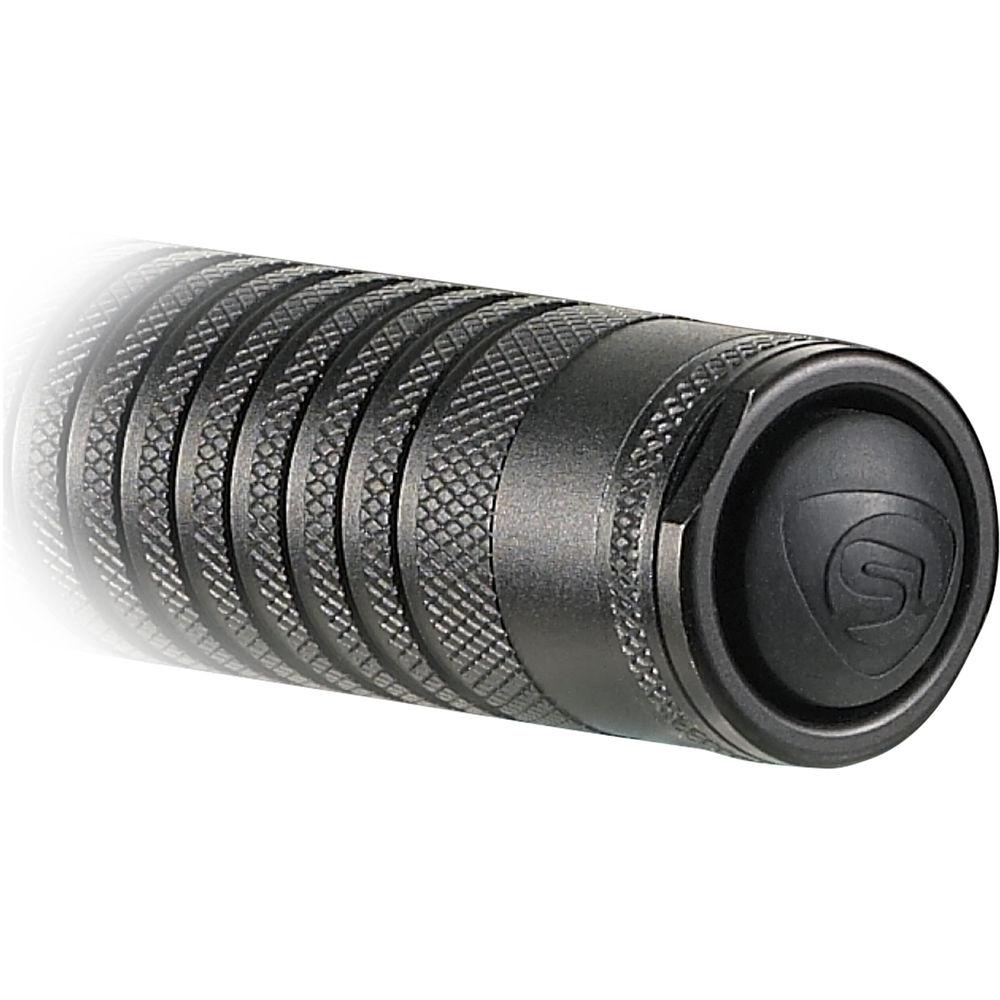

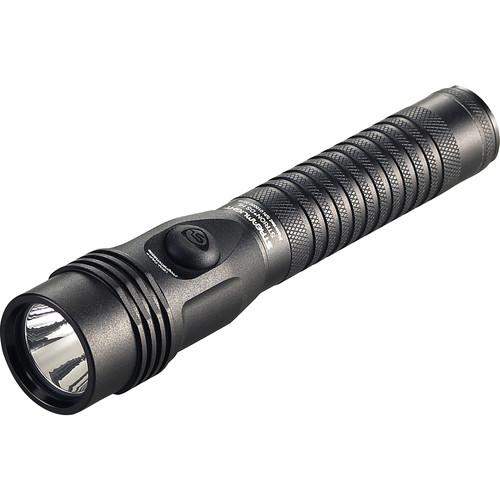

User Manual for Streamlight Strion DS HL Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Streamlight Strion DS HL Rechargeable LED
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
 |
User manual for the Streamlight Strion DS HL Rechargeable LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|
Product description With dual, independent switches providing options for holds and a powerful 700-lumen maximum output, the Streamlight Strion DS HL Rechargeable LED Flashlight is a versatile tool for law enforcement, professional, recreational, and home use. Its C4 LED delivers brightness levels of 40, 300, and 700 lumens, with runtimes of 20, 3.3, and 1.3 hours, respectively, on a full charge. Push-button switches on the head and tailcap control power on a momentary- or constant-on basis, and the strobe setting can disorient an attacker or signal for help. Streamlight's TEN-TAP programming lets you choose from three modes to suit your needs—high/medium/low with strobe, high only, or high/medium/low.The Strion DS HL's design protects your investment with an anti-rolling ring on the head that prevents the light from tumbling off a table or car hood. The housing is made of lightweight and durable 6000 series machined aluminum with an impact-resistance rating of 6.6', an IPX4 water-resistance rating, and a lens of high-temperature Borofloat glass. The light comes with a 120/100 VAC / 12 VDC "Piggyback" charger that also charges spare battery at the same time. - Light Performance
-
- 40/300/700 lumens
- Power-regulated C4 white LED
- Runtime 20, 3.3, 1.3 hours, respectively
- Switching
-
- Dual, independent switches provide holding options
- Location: tailcap and head
- Type: push button
- Momentary- and constant-on activation
- TEN-TAP modes: high/medium/low with strobe, high only, or high/medium/low
- Construction Details
-
- 1.3" head diameter
- High-temperature Borofloat glass lens
- 6000 series aluminum housing
- IPX4 water resistant, gasket sealed
- Impact resistant to 6.6'
- 120/100 VAC / 12 VDC charger also charges spare battery
- Charge time: 3 hours
UPC: 080926746190 In the Box Streamlight Strion DS HL Rechargeable LED Flashlight (AC/DC "Piggyback" Charger) AC/DC "Piggyback" Charger Li-ion Rechargeable Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Strion DS HL Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Strion DS HL Specs | | | Lumen Output | High: 700 Lumens
Medium: 300 Lumens
Low: 40 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1.3 Hours
Medium: 3.3 Hours
Low: 20 Hours
Strobe: 2.5 Hours | | Battery Type | 1 x Rechargeable Pack Lithium-Ion | | Internal Battery Capacity | 2200 mAh | | Charging Time | 3 Hours | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Bezel Diameter | 1.3" / 33.0 mm | | Dimensions |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
